Automatic Transmission Shift Lock Control Component Views
Automatic Transmission Shift Lock Control Component Views

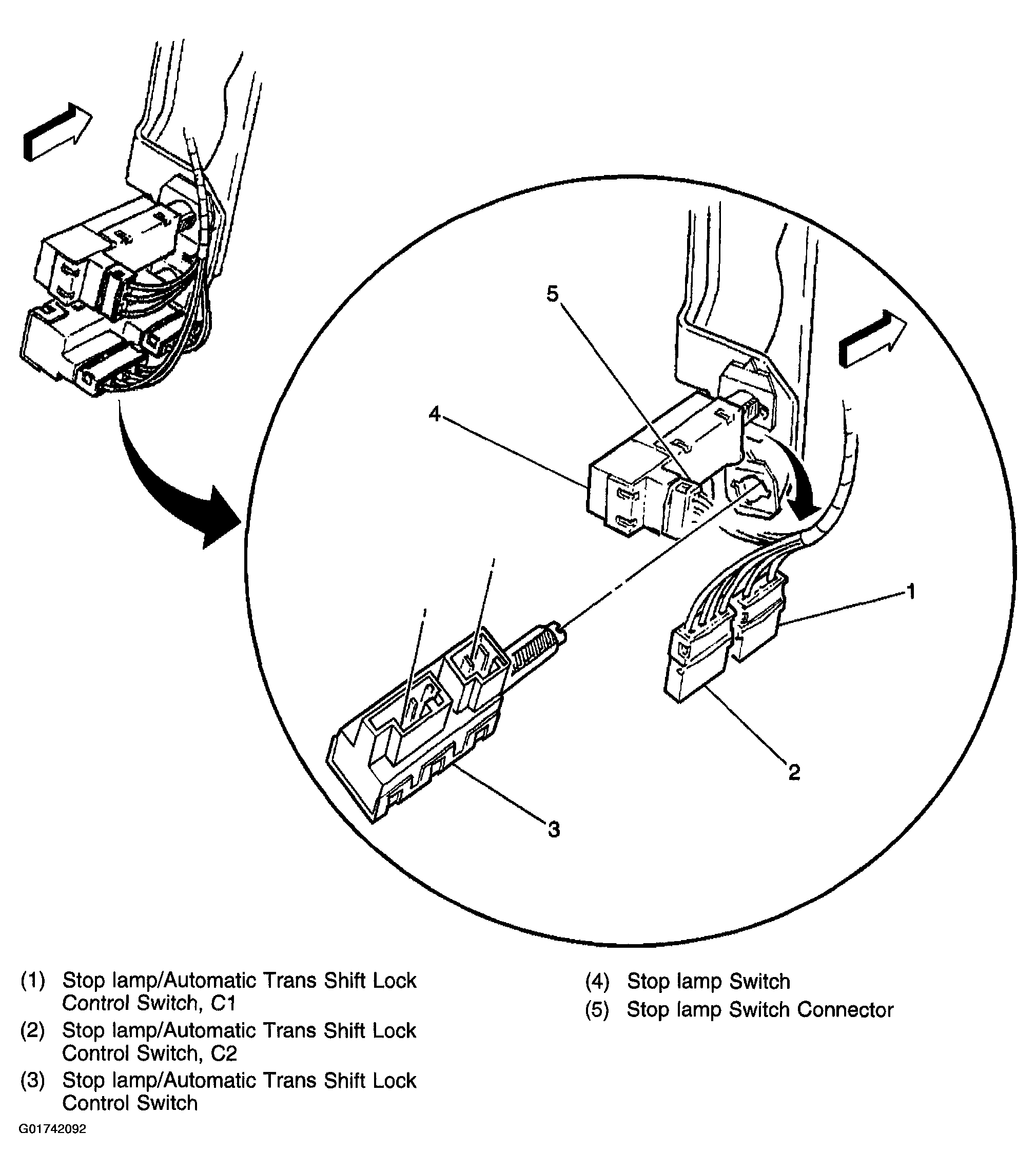

Fig 1: Brake Switches Component Views
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
