Keyless Entry Connector End Views

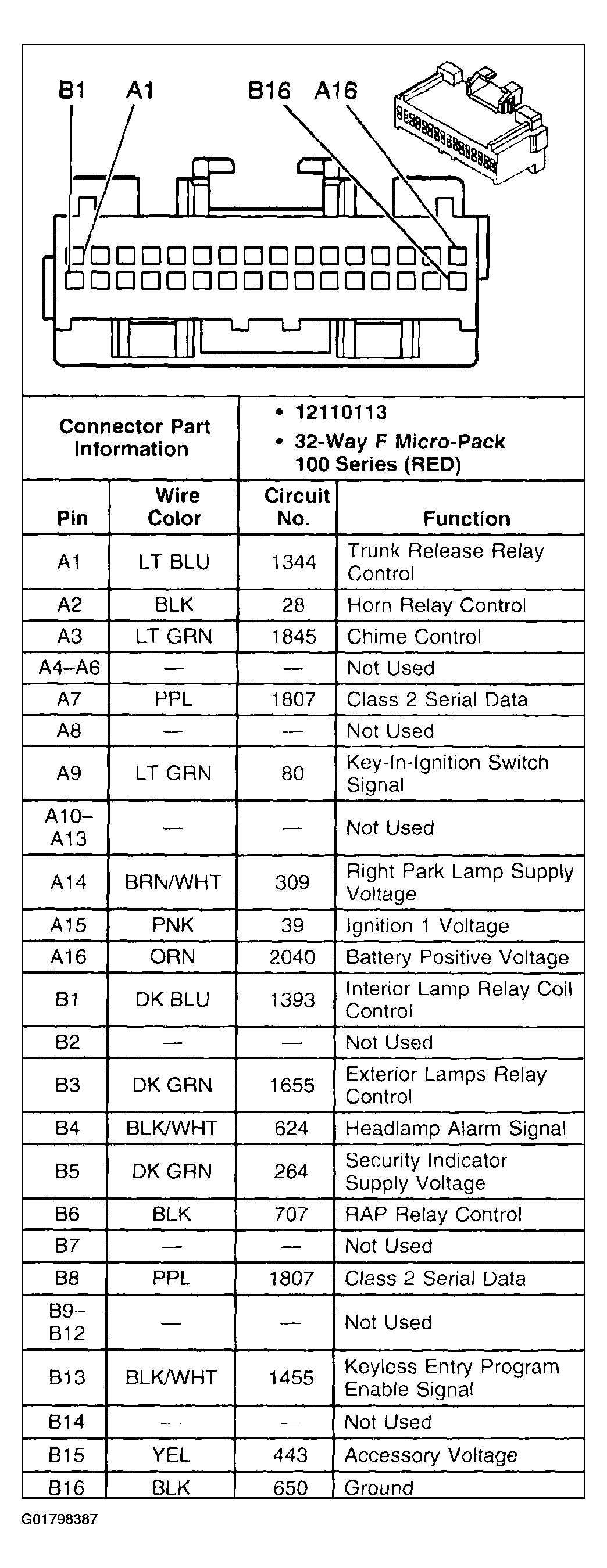

Fig 1: Identifying Remote Control Door Lock Receiver (RCDLR) Harness Connector Terminals
G01798387Courtesy of GENERAL MOTORS CORP.
