HVAC Control Module Connector End View

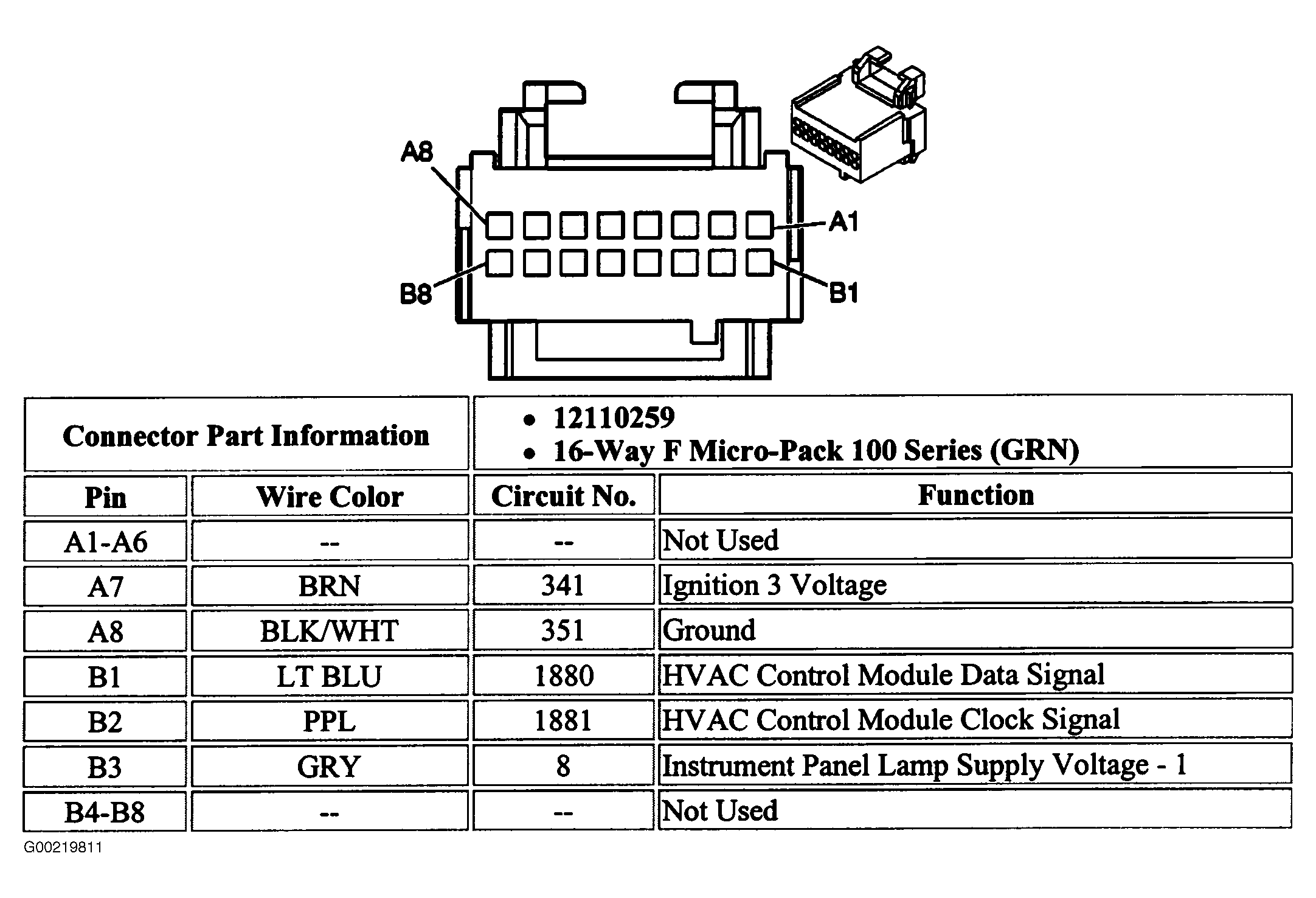

Fig 1: HVAC Control Module Connector End View
G00219811Courtesy of GENERAL MOTORS CORP.
