Body Control Module Connector End Views
Body Control Module Connector End Views

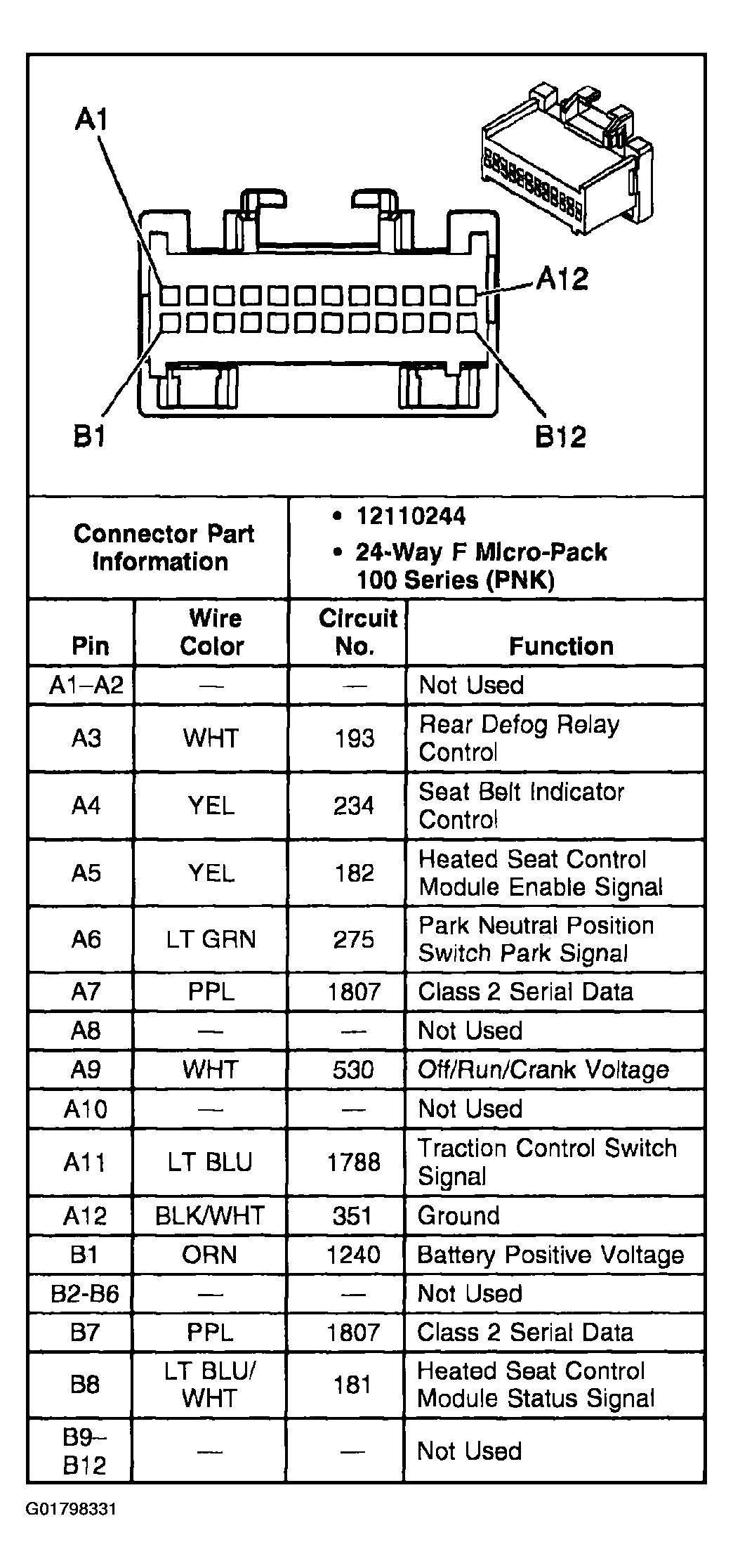

Fig 1: Identifying BCM Harness Connector C1
Courtesy of GENERAL MOTORS CORP.

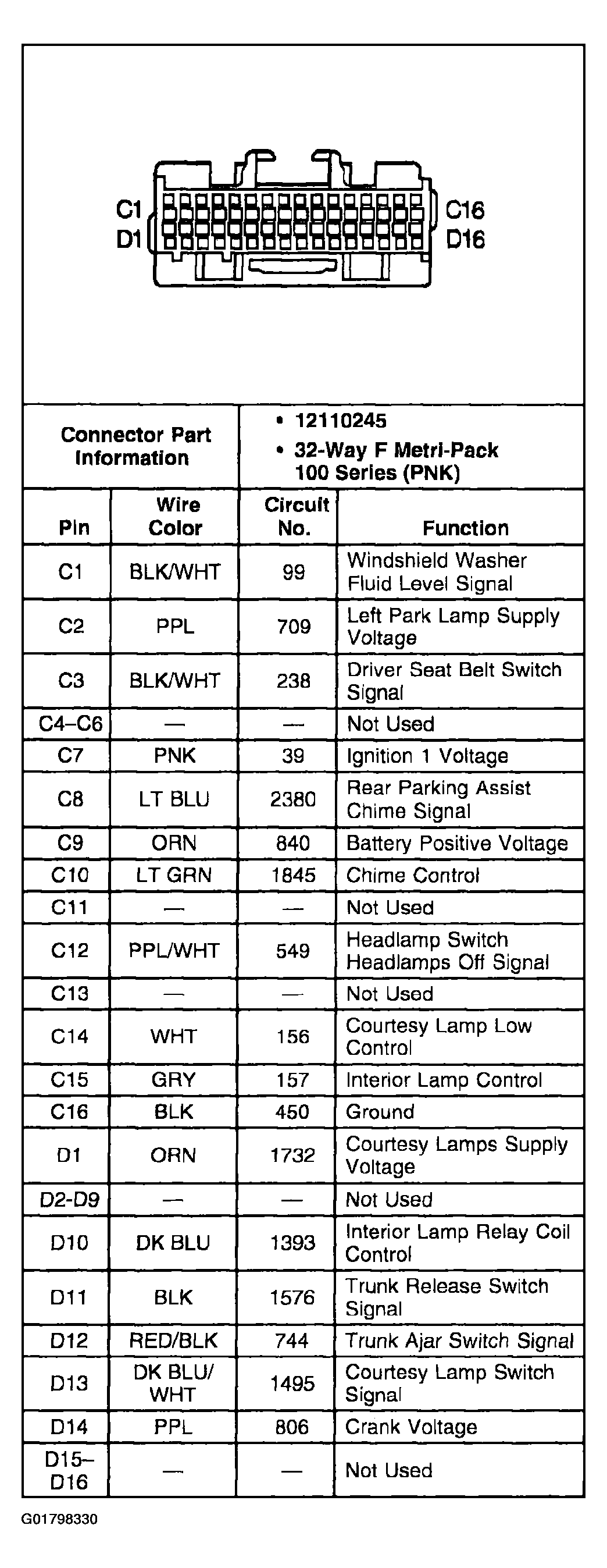

Fig 2: Identifying BCM Harness Connector C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
