Power Seat Systems Component Views

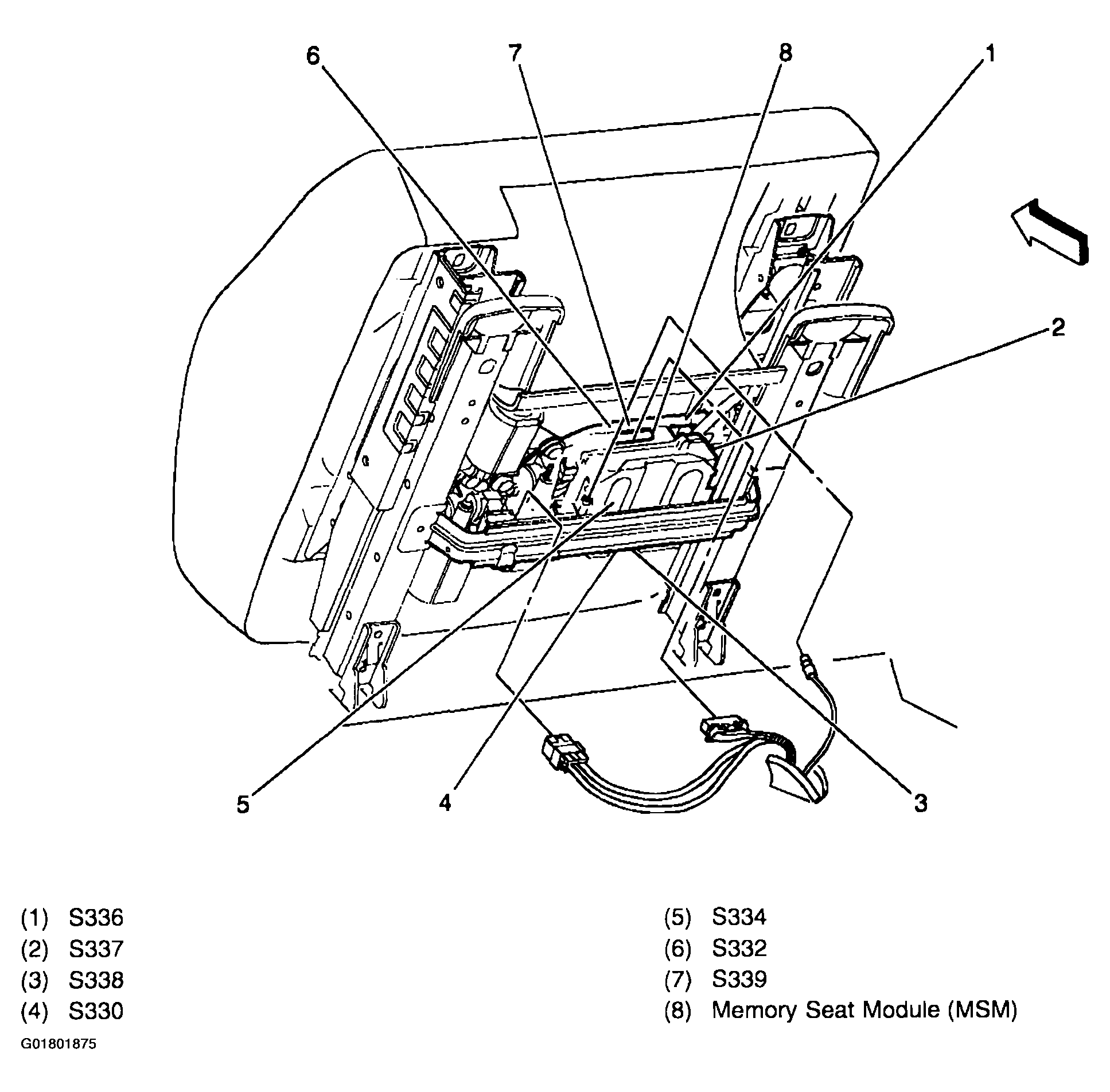

Fig 1: Locating Memory Seat Module (Under Left Front Seat)

Courtesy of GENERAL MOTORS CORP.

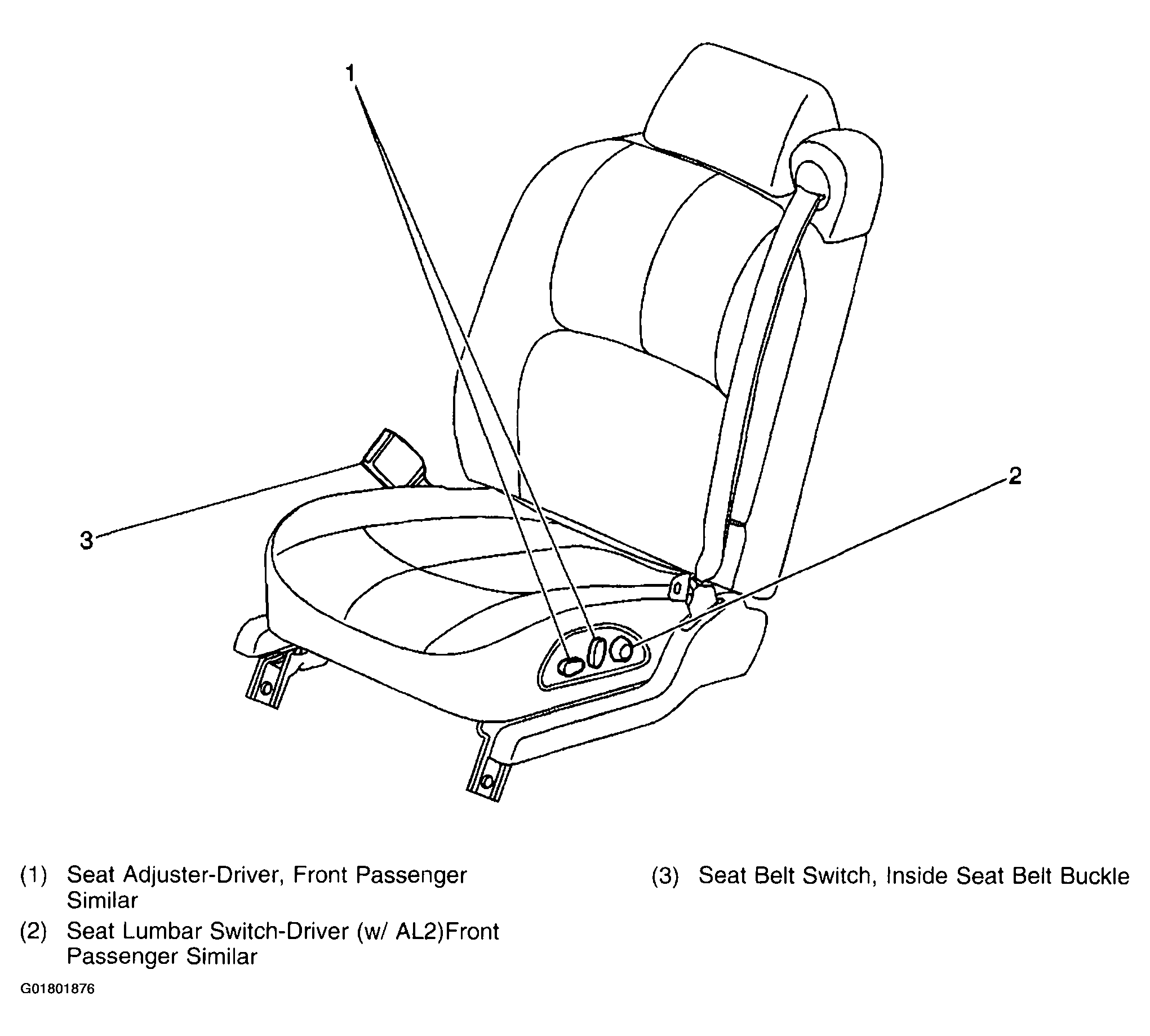

Fig 2: Driver Seat Switches

Courtesy of GENERAL MOTORS CORP.

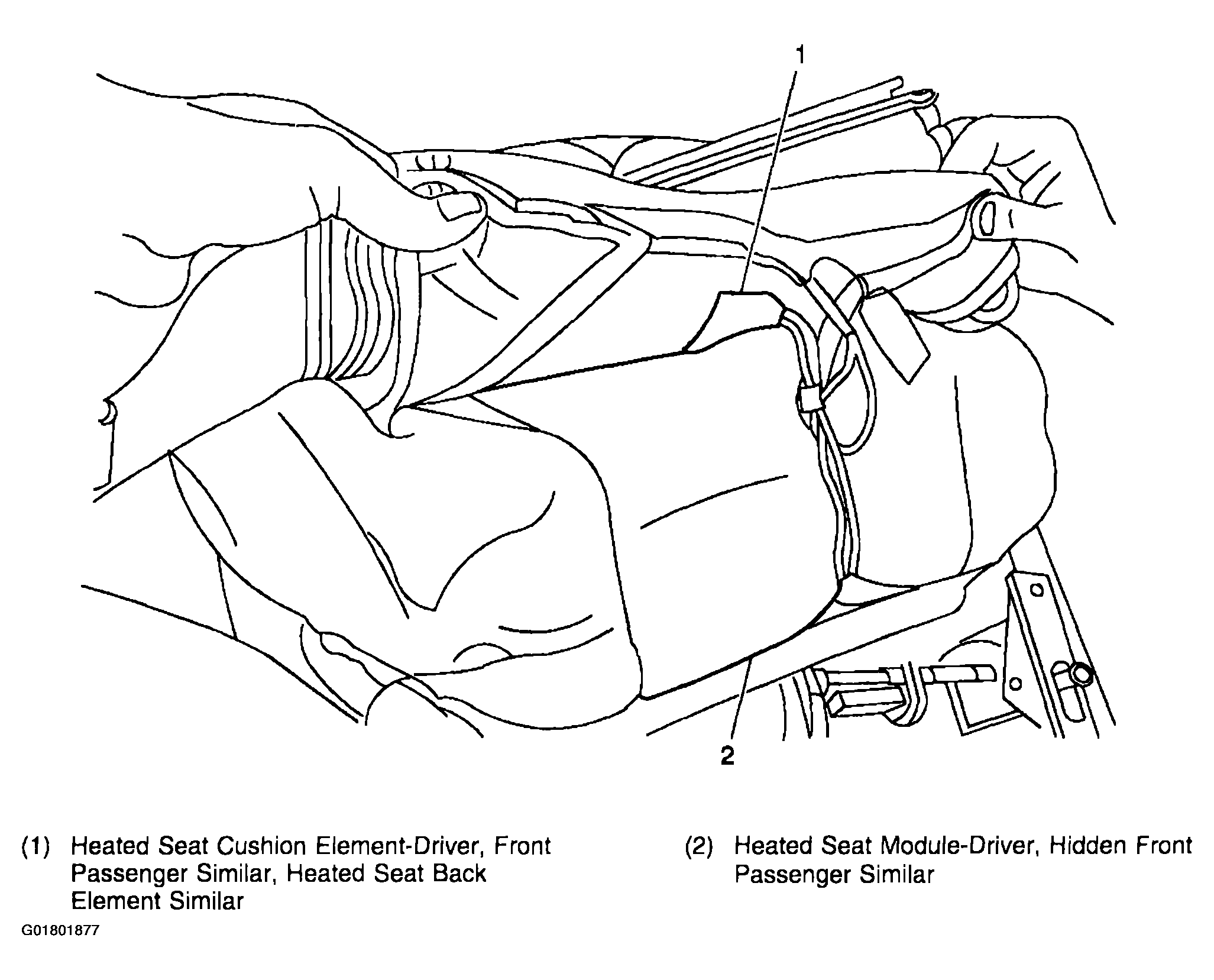

Fig 3: Heated Seat Components - Driver Seat

Courtesy of GENERAL MOTORS CORP.

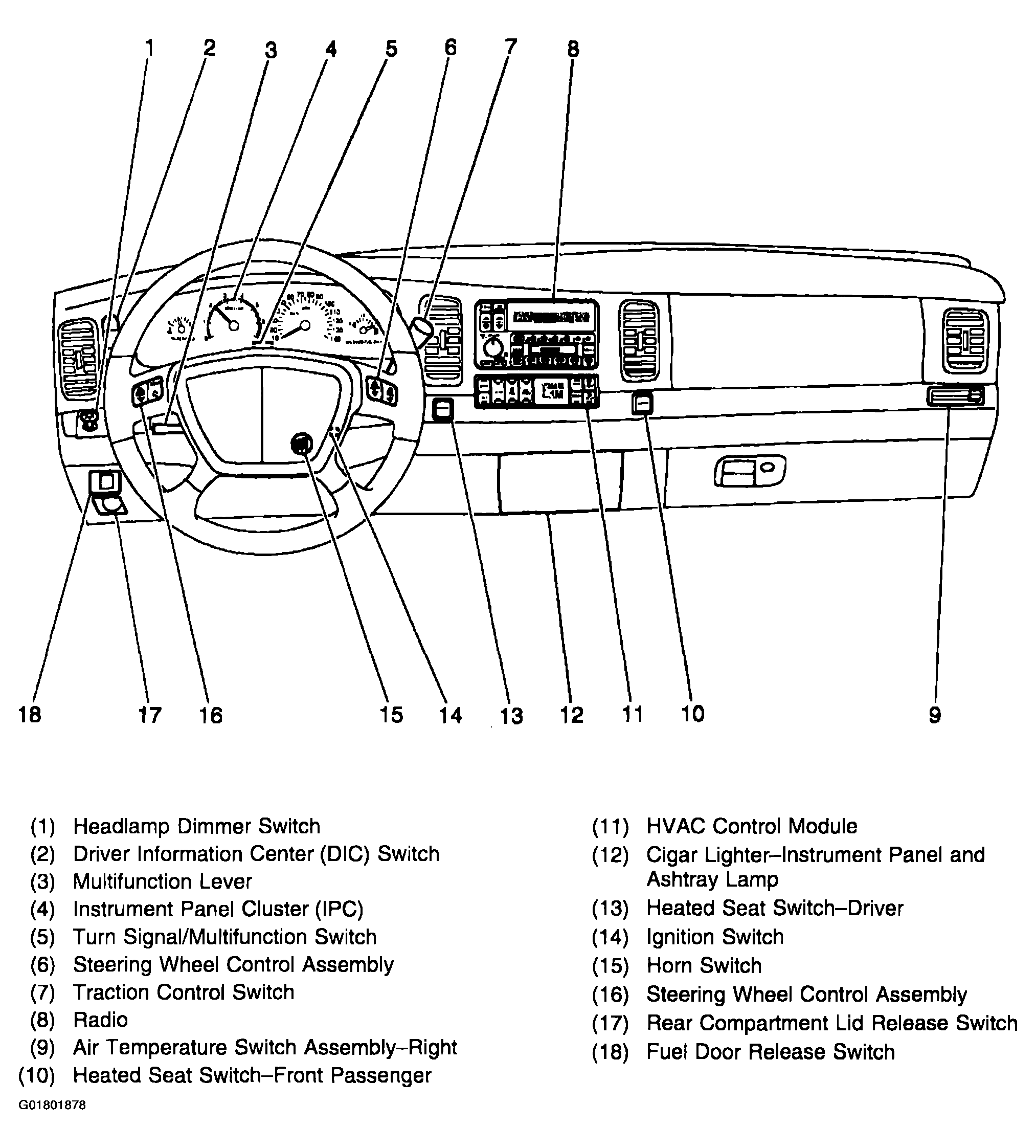

Fig 4: Locating Components At Instrument Panel

Courtesy of GENERAL MOTORS CORP.

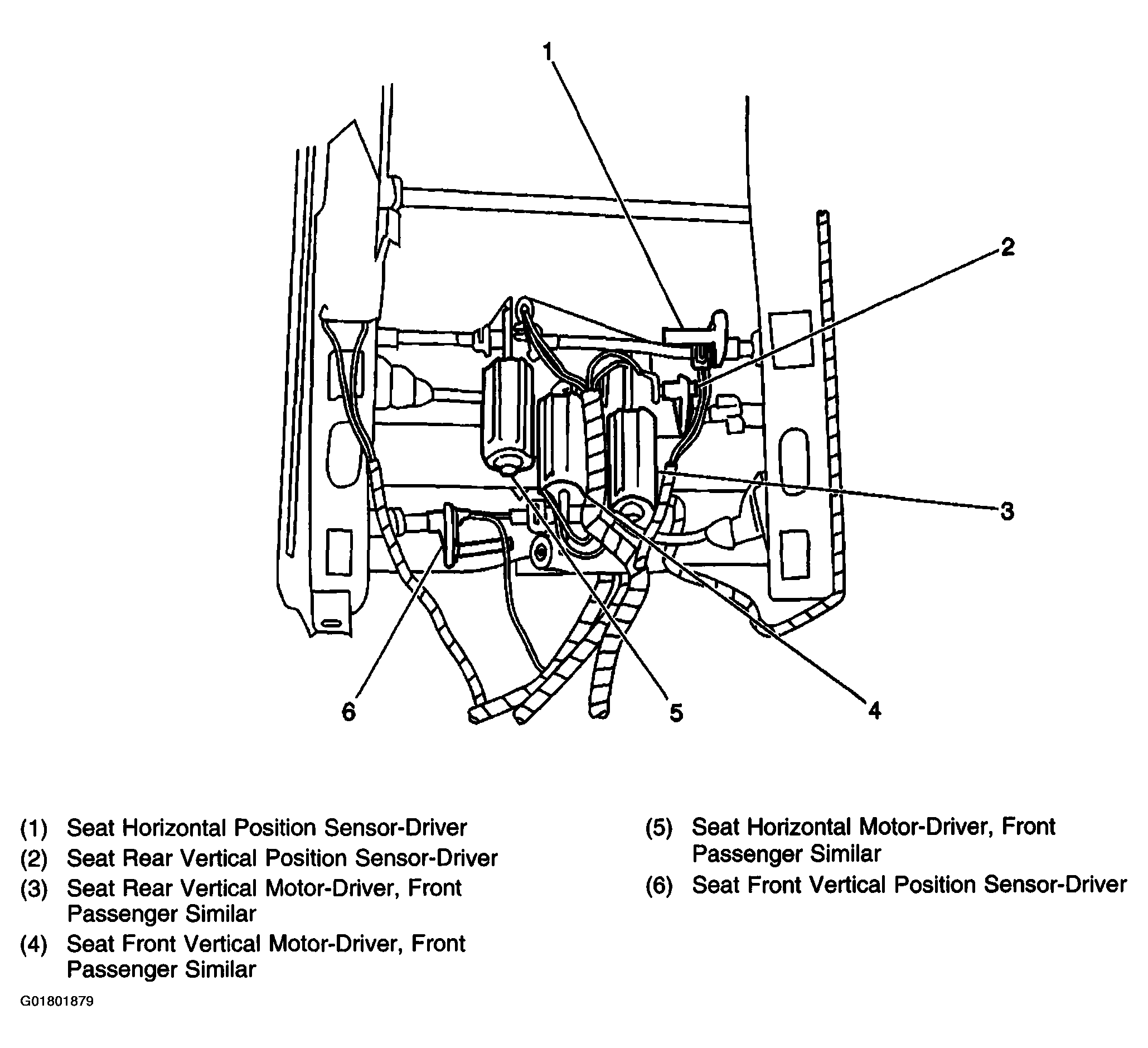

Fig 5: Locating LH Front Seat Horizontal & Vertical Motors & Sensors

Courtesy of GENERAL MOTORS CORP.

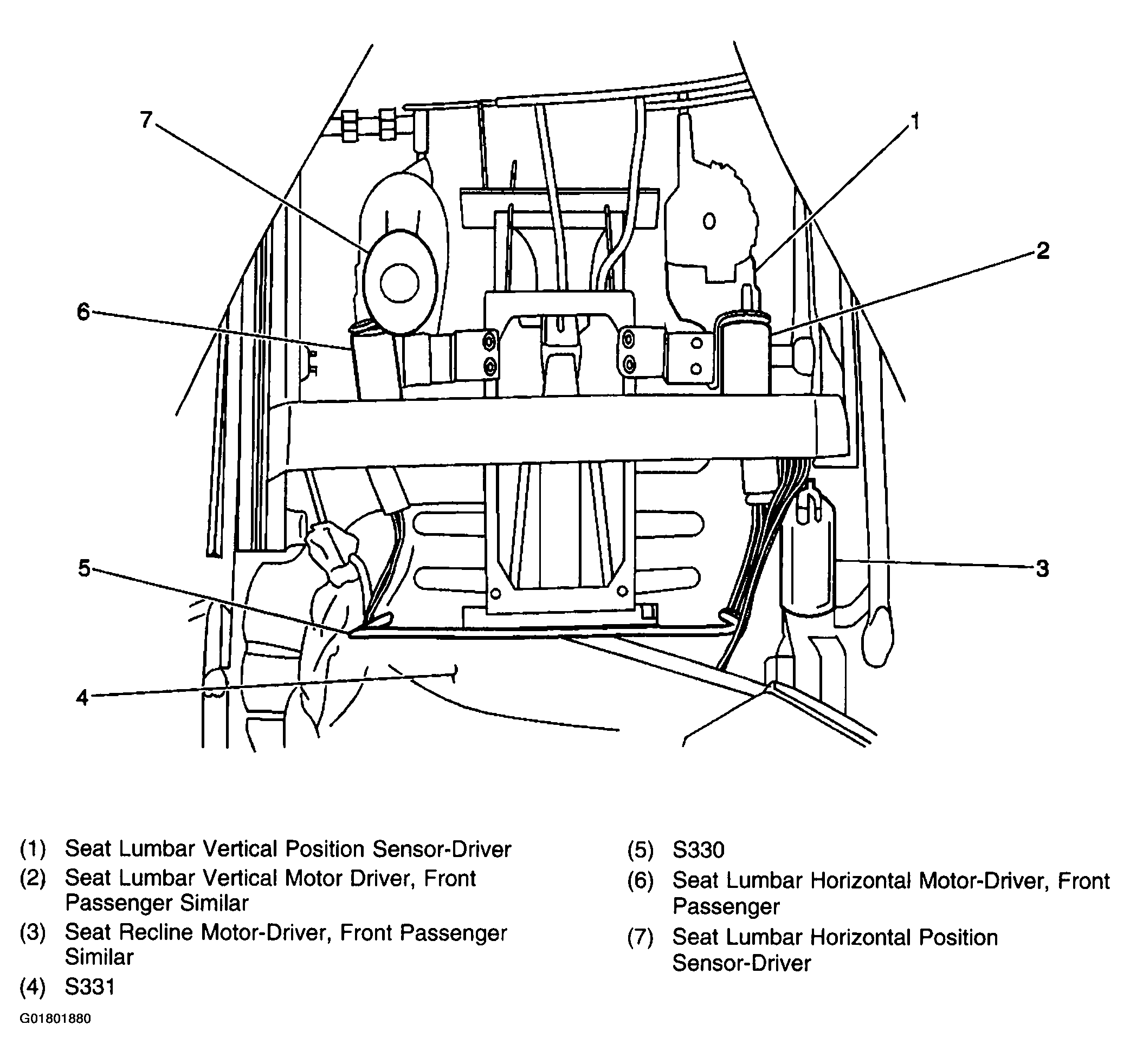

Fig 6: Locating LH Front Power Seat Back Components

Courtesy of GENERAL MOTORS CORP.

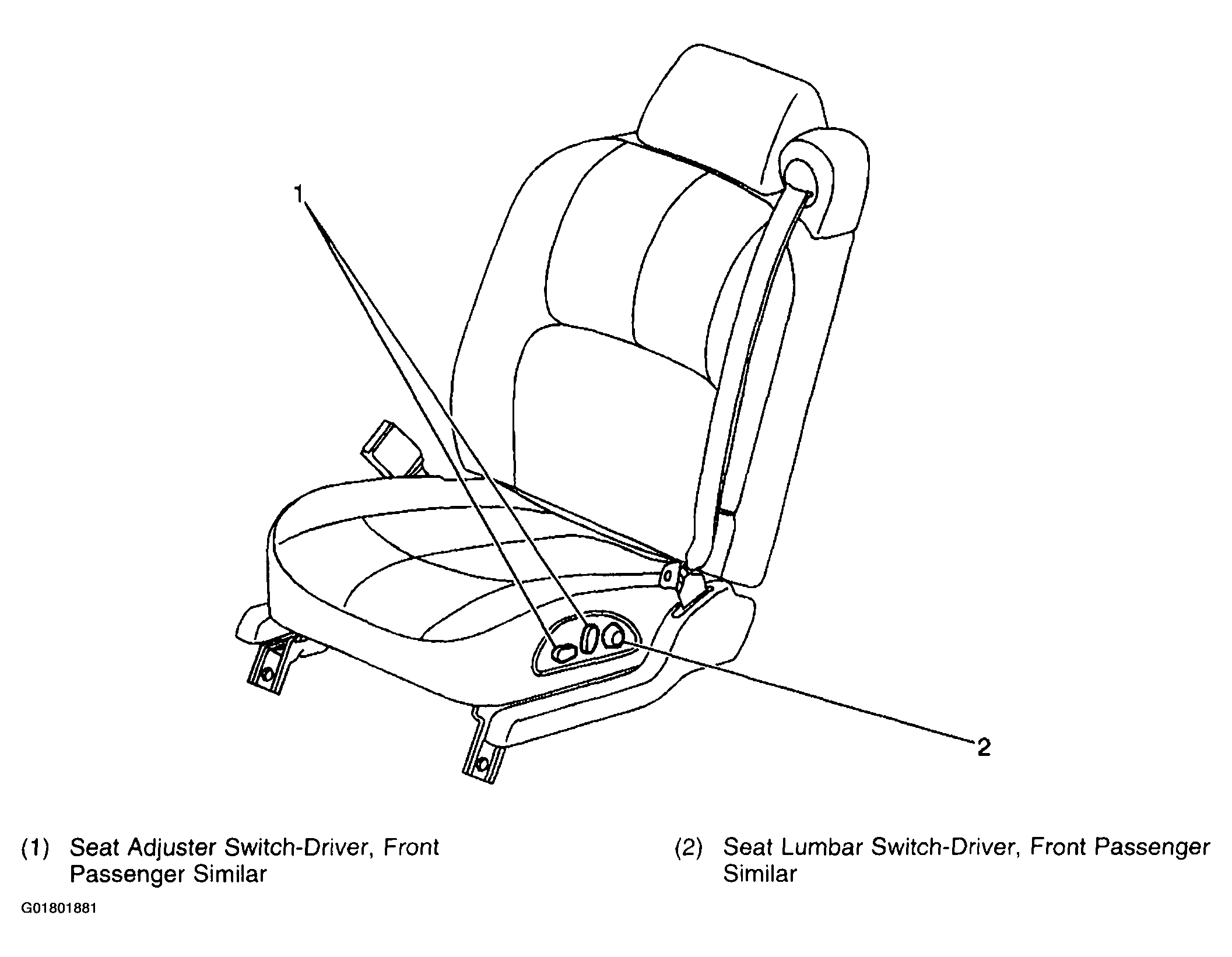

Fig 7: Locating LH Lumbar & Seat Switch

Courtesy of GENERAL MOTORS CORP.
