Removal Procedure

  1. Remove the memory seat module, if necessary. Refer to Memory Seat Control Module Replacement .
  2. Disconnect the electrical connectors from the heated seat module (1).
  3. Remove the retainers fastening the heated seat module. Remove the heated seat module (1).

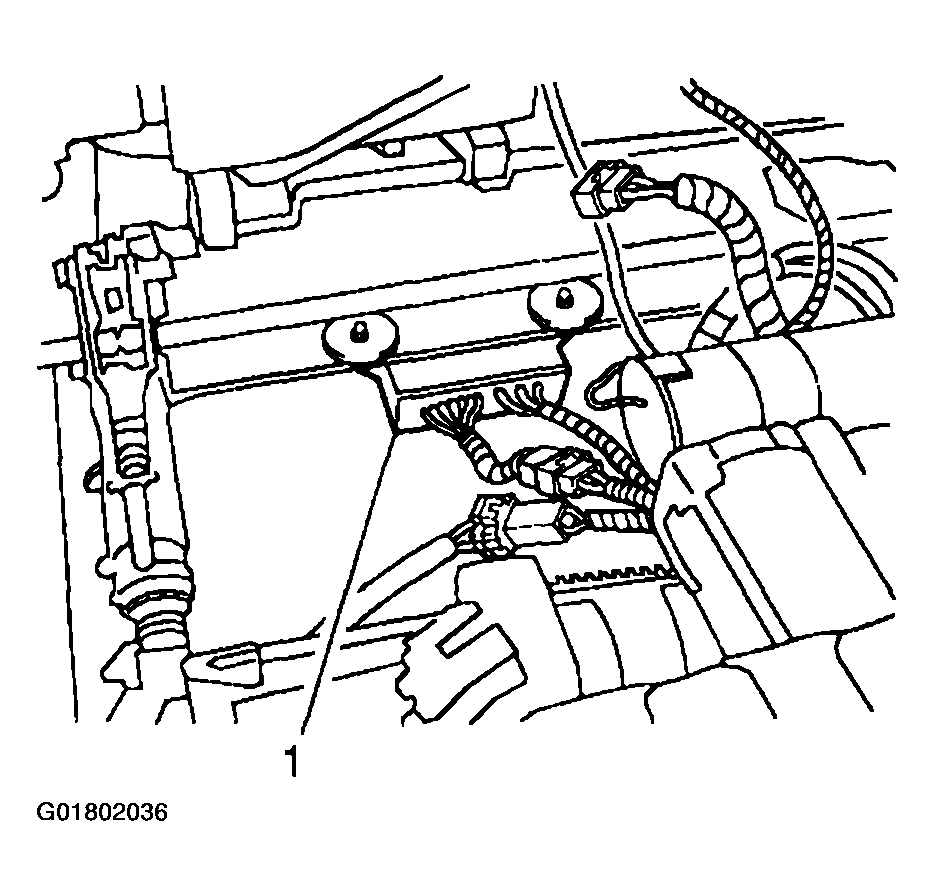

    Fig 1: Heated Seat Module
    G01802036Courtesy of GENERAL MOTORS CORP.
