ABS Component Views
ABS Component Views

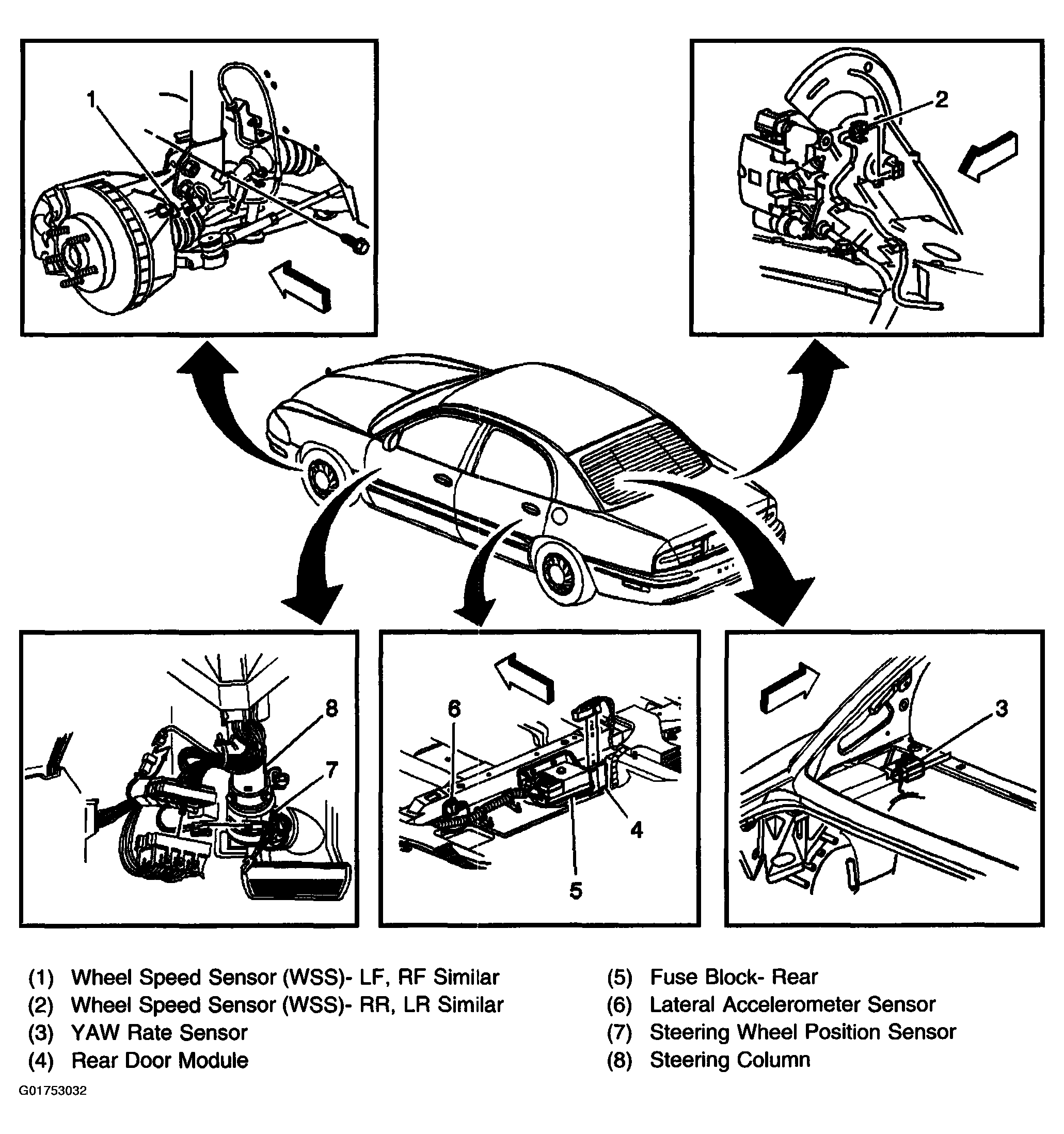

Fig 1: Locating ABS Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

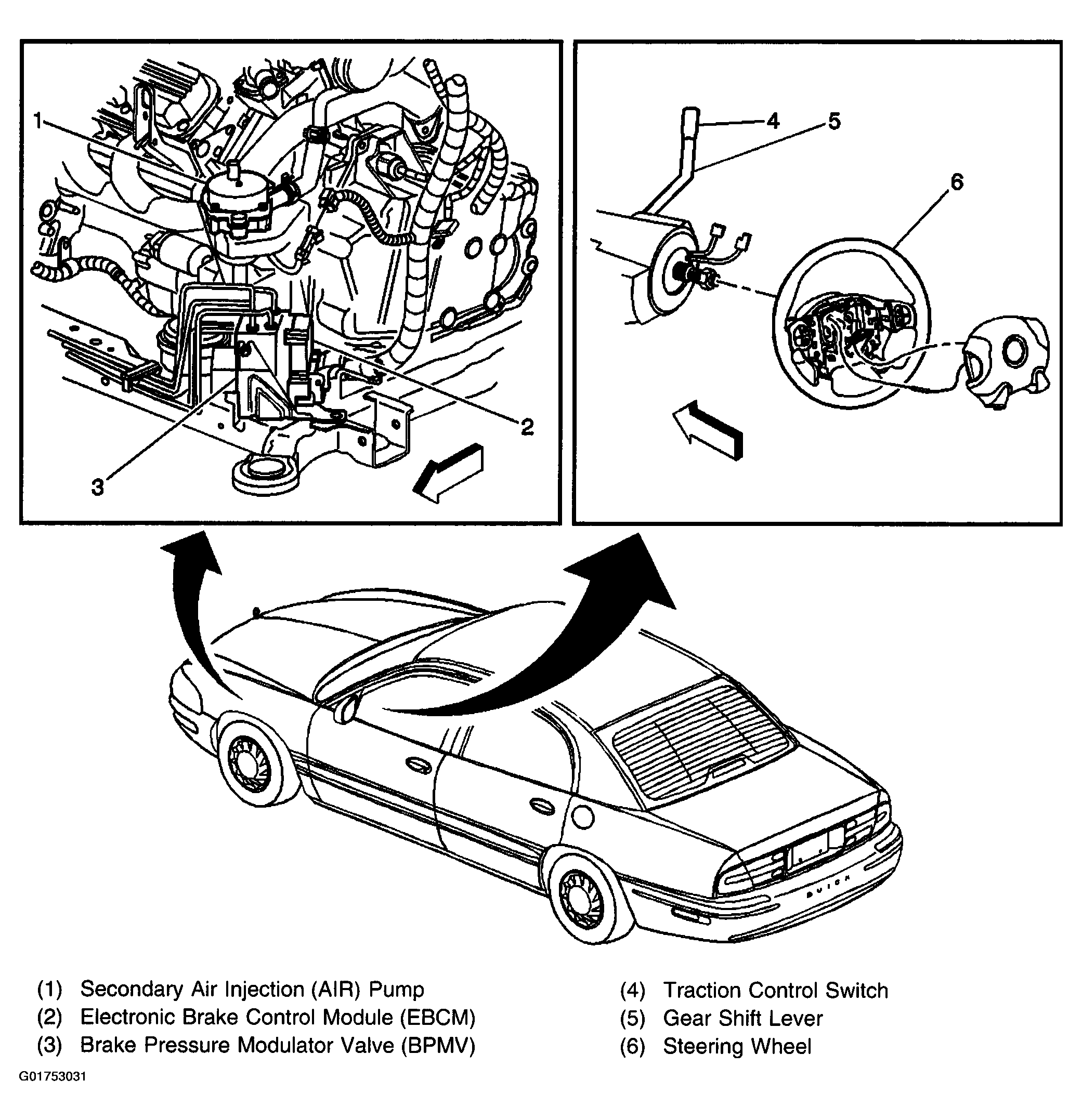

Fig 2: Locating ABS Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
