Diagnostic Information & Procedures
›
Scan Tool Output Controls
Scan Tool Output Controls

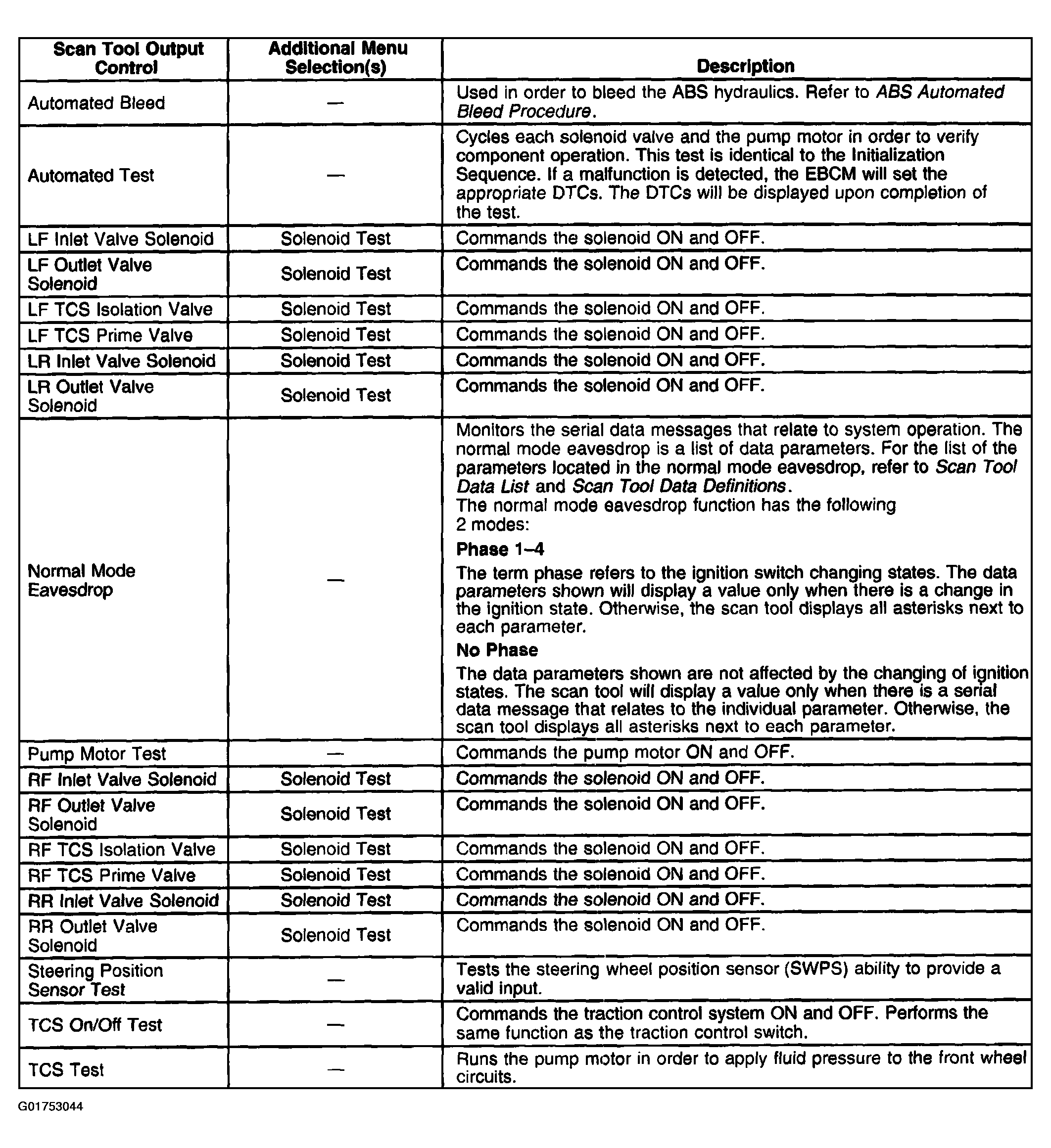

Fig 1: Electronic Brake Control Module (EBCM) Scan Tool Output Controls
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
