Removal Procedure

  1. Turn OFF the ignition.
  2. Remove the rear compartment trim.
  3. Remove the rear shelf trim panel.
  4. Remove the 2 yaw rate sensor mounting nuts (1).

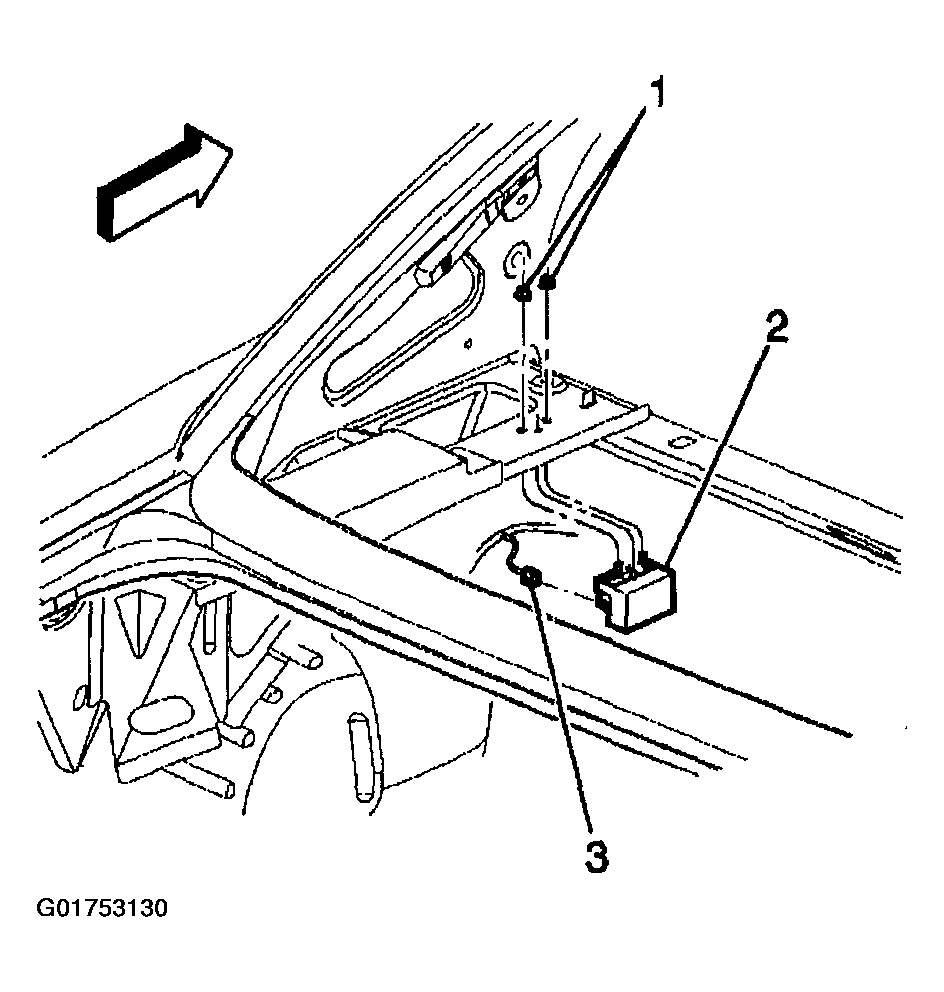

    Fig 1: Locating Yaw Rate Sensor
    G01753130Courtesy of GENERAL MOTORS CORP.
  5. Remove the yaw rate sensor (2).
  6. Disconnect the yaw rate sensor electrical connector (3).
