Body Control System Schematics

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.

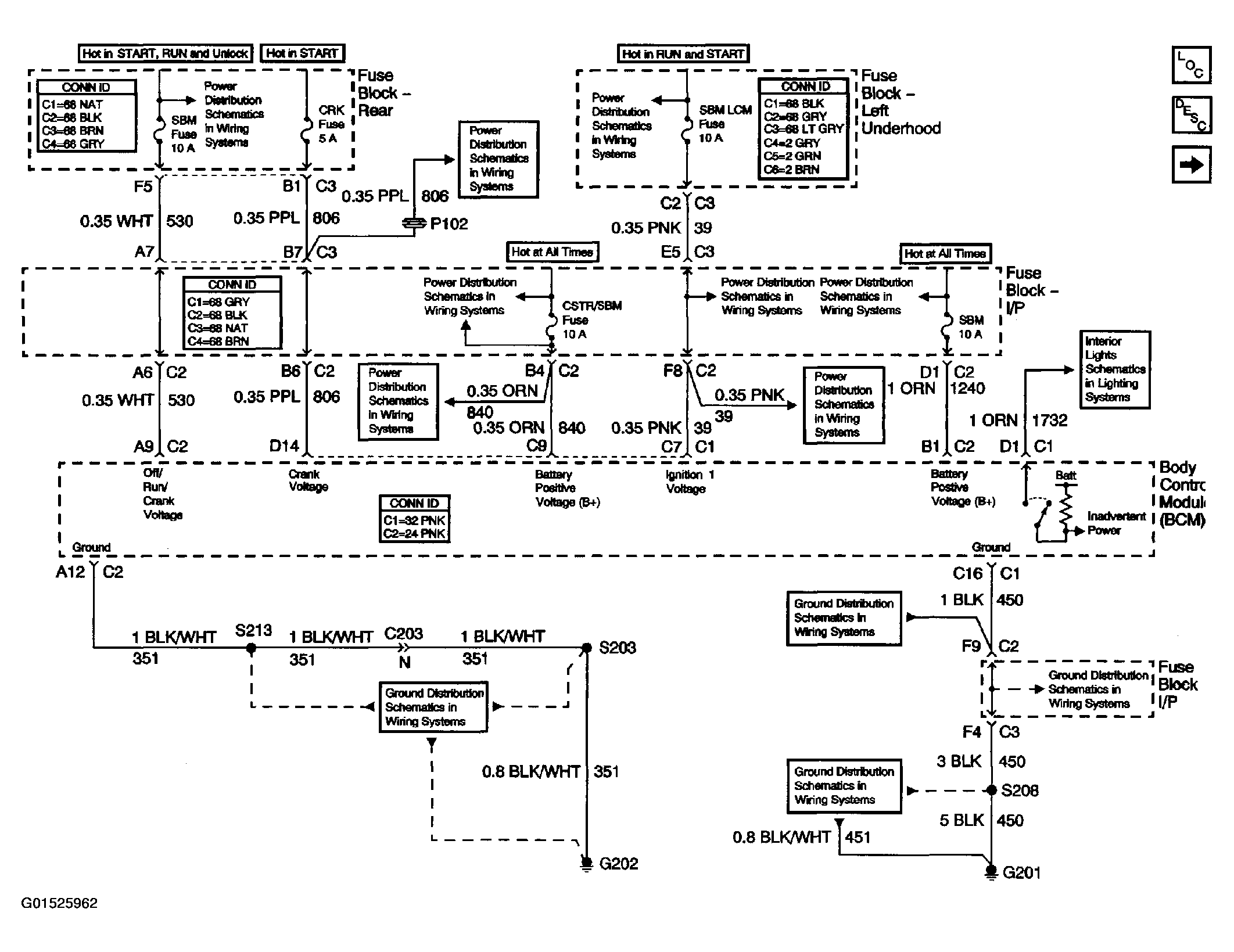

Fig 1: Power & Ground

Courtesy of GENERAL MOTORS CORP.

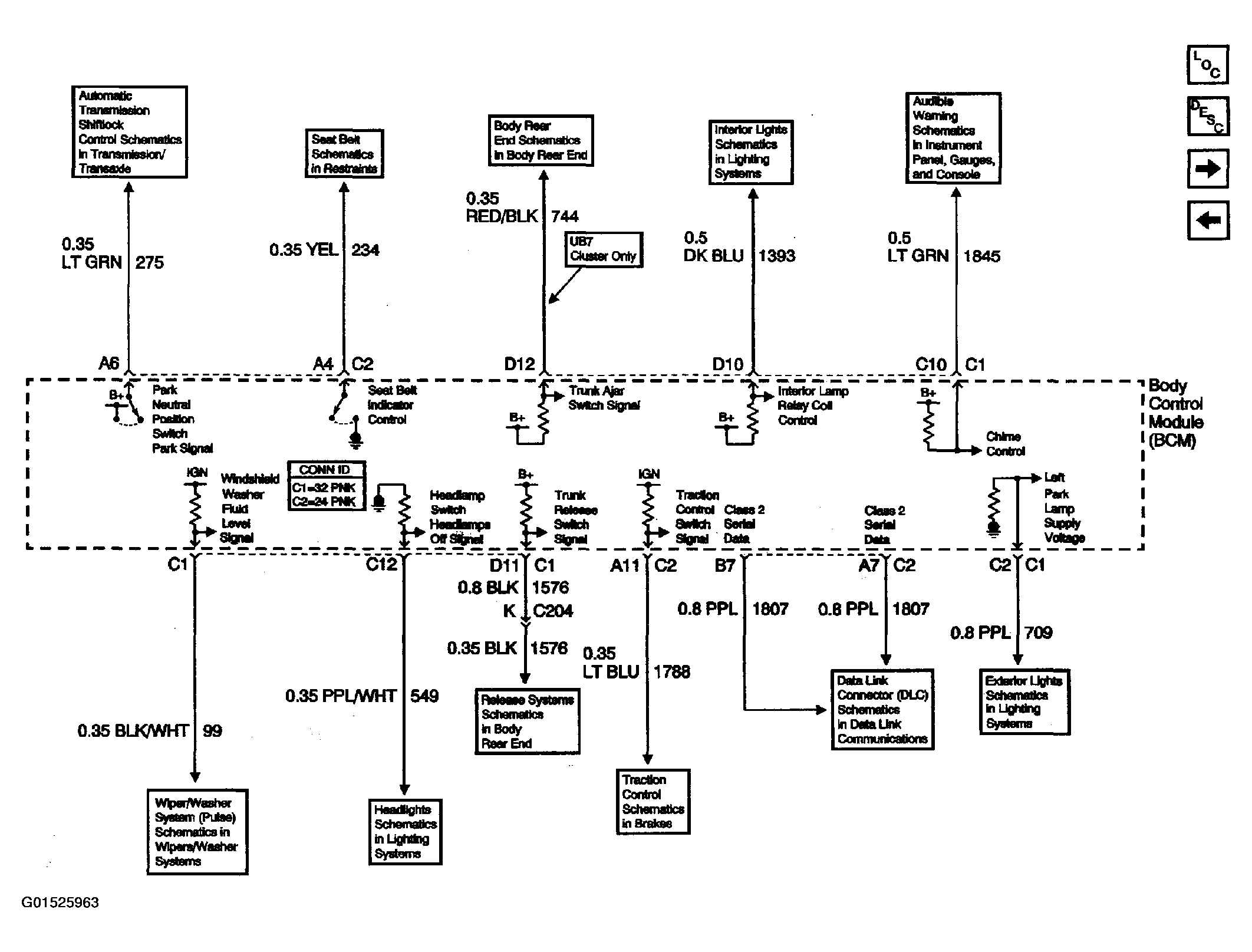

Fig 2: Inputs & Outputs (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

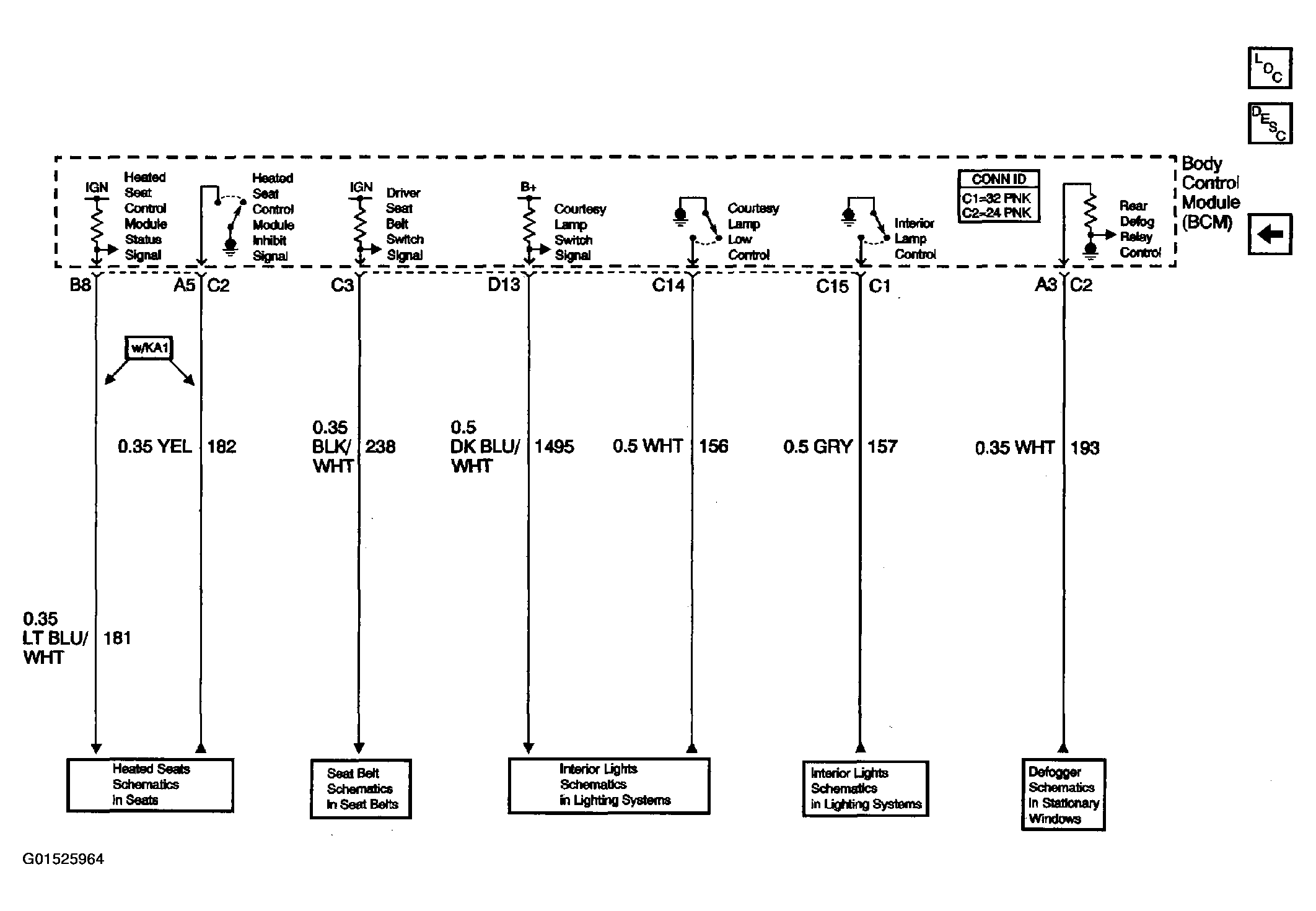

Fig 3: Inputs & Outputs (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
