Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.

Position the RFA module (1) into the shelf.

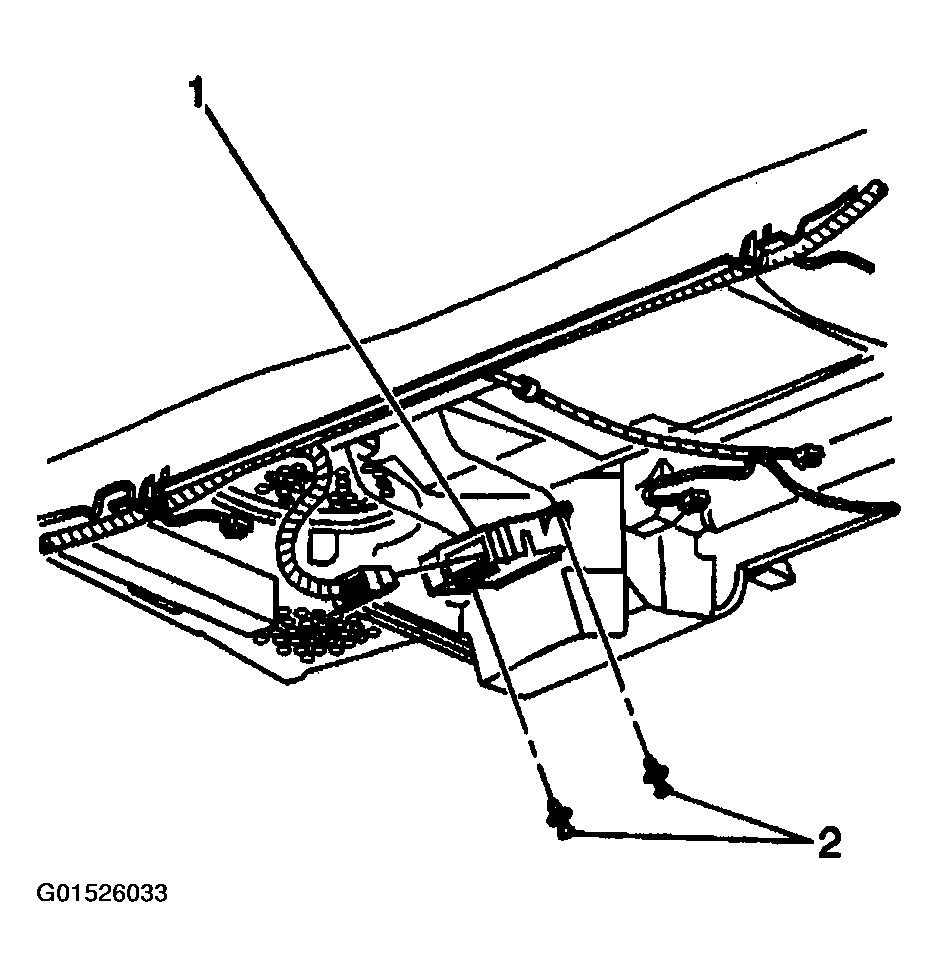

Fig 1: Installing Remote Control Door Lock Receiver
Courtesy of GENERAL MOTORS CORP.
Install the module retainers (2).
Connect the electrical connector.
Install rear storage compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
Program RFA module. Refer to TRANSMITTER PROGRAMMING .
