Cruise Control Connector End Views

WARNING: This page is about a different car, the 2003 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.

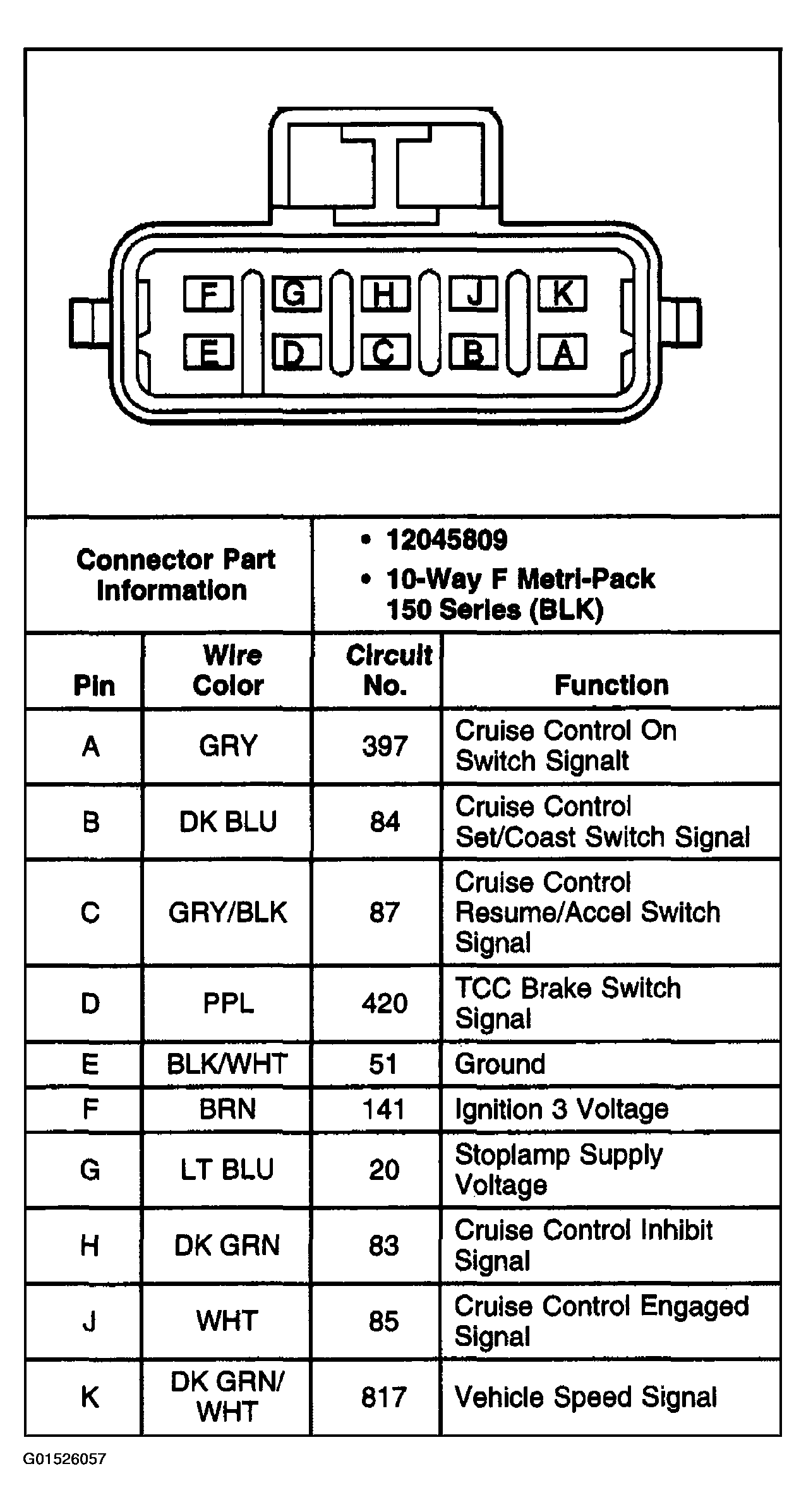

Fig 1: Cruise Control Module (CCM) Connector End View

Courtesy of GENERAL MOTORS CORP.

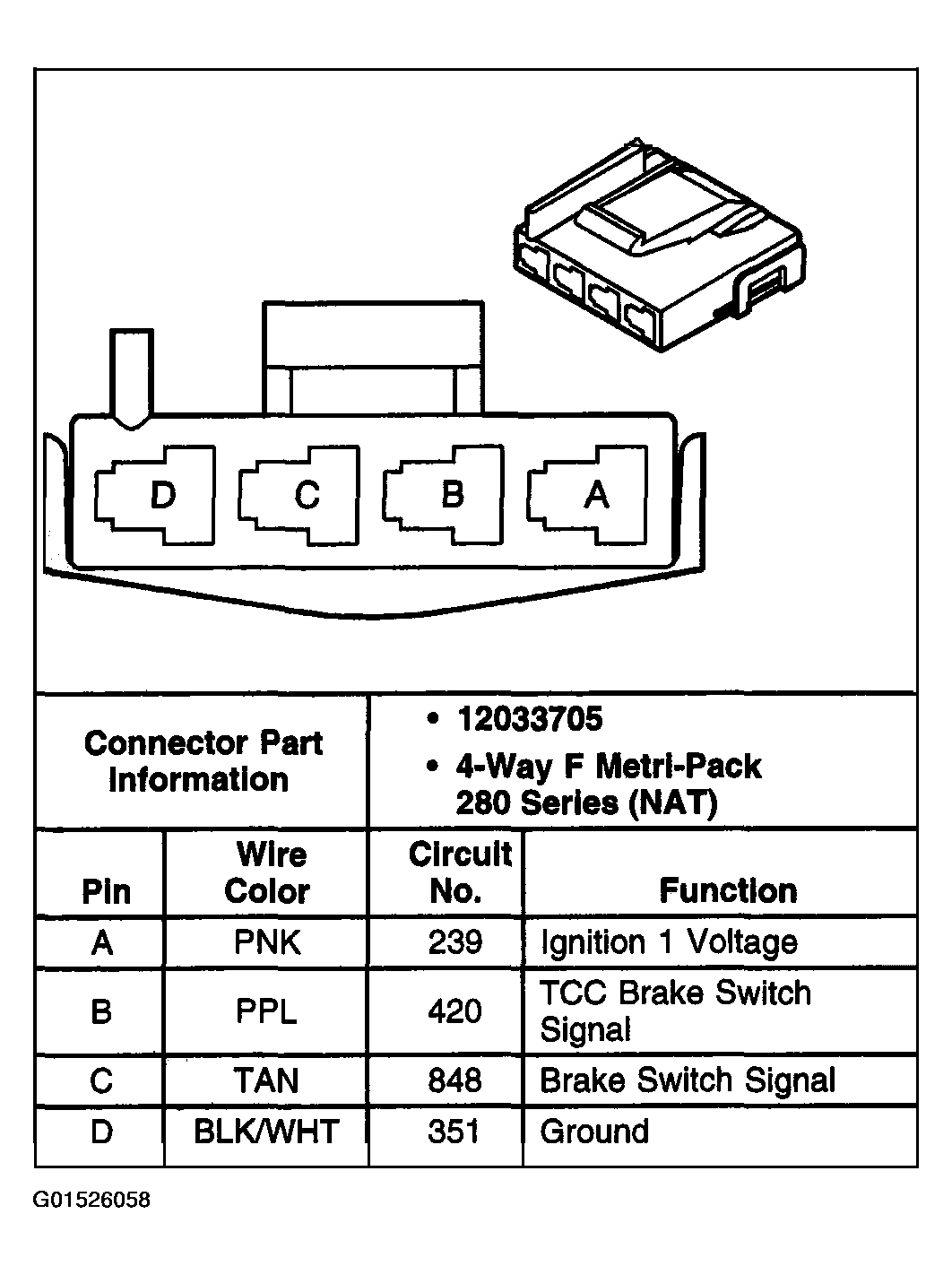

Fig 2: Stop Lamp Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
