Automatic Level Control Suspension Connector End Views

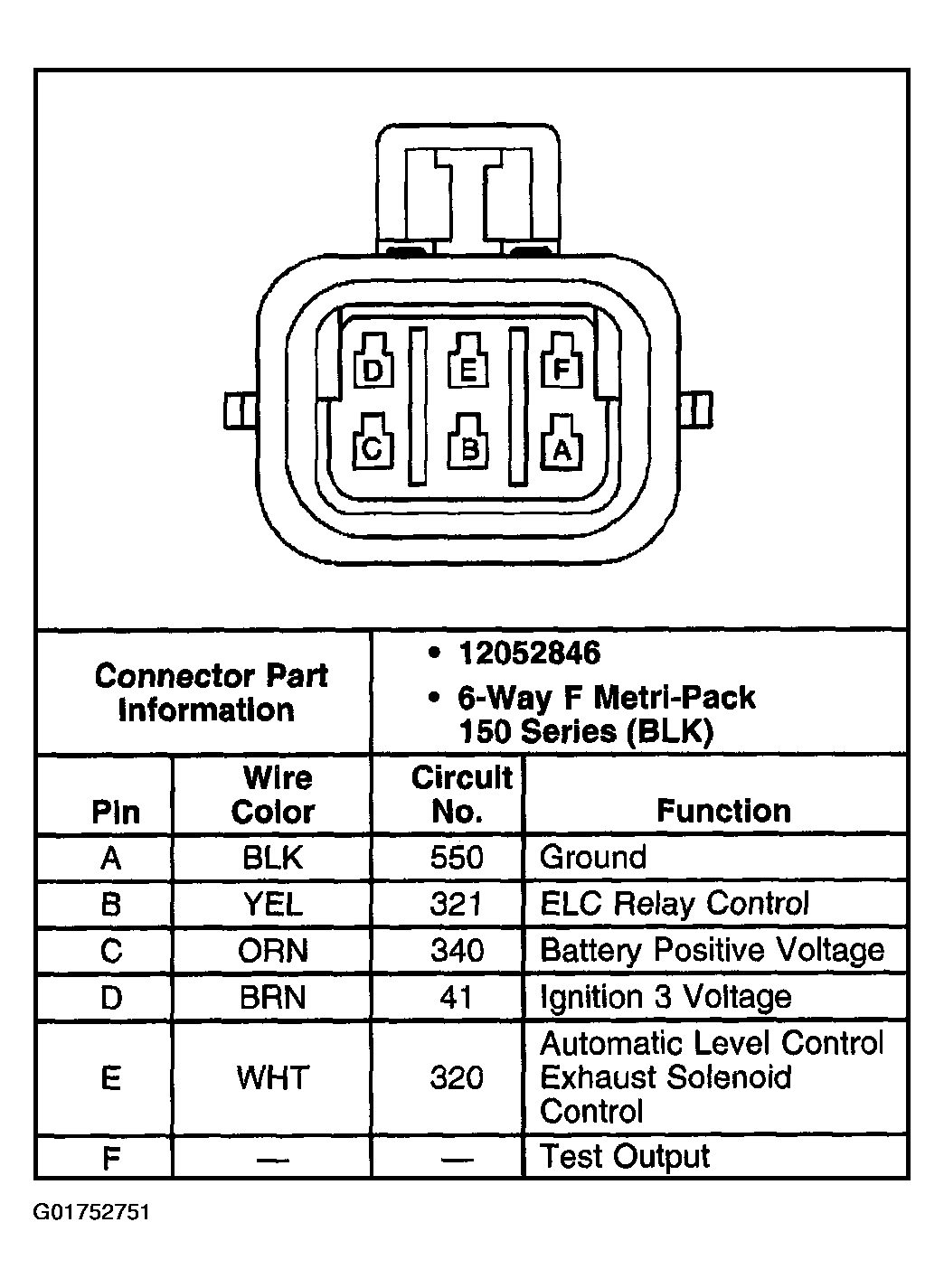

Fig 1: Identifying Automatic Level Control (ALC) Compressor Harness Connector

Courtesy of GENERAL MOTORS CORP.

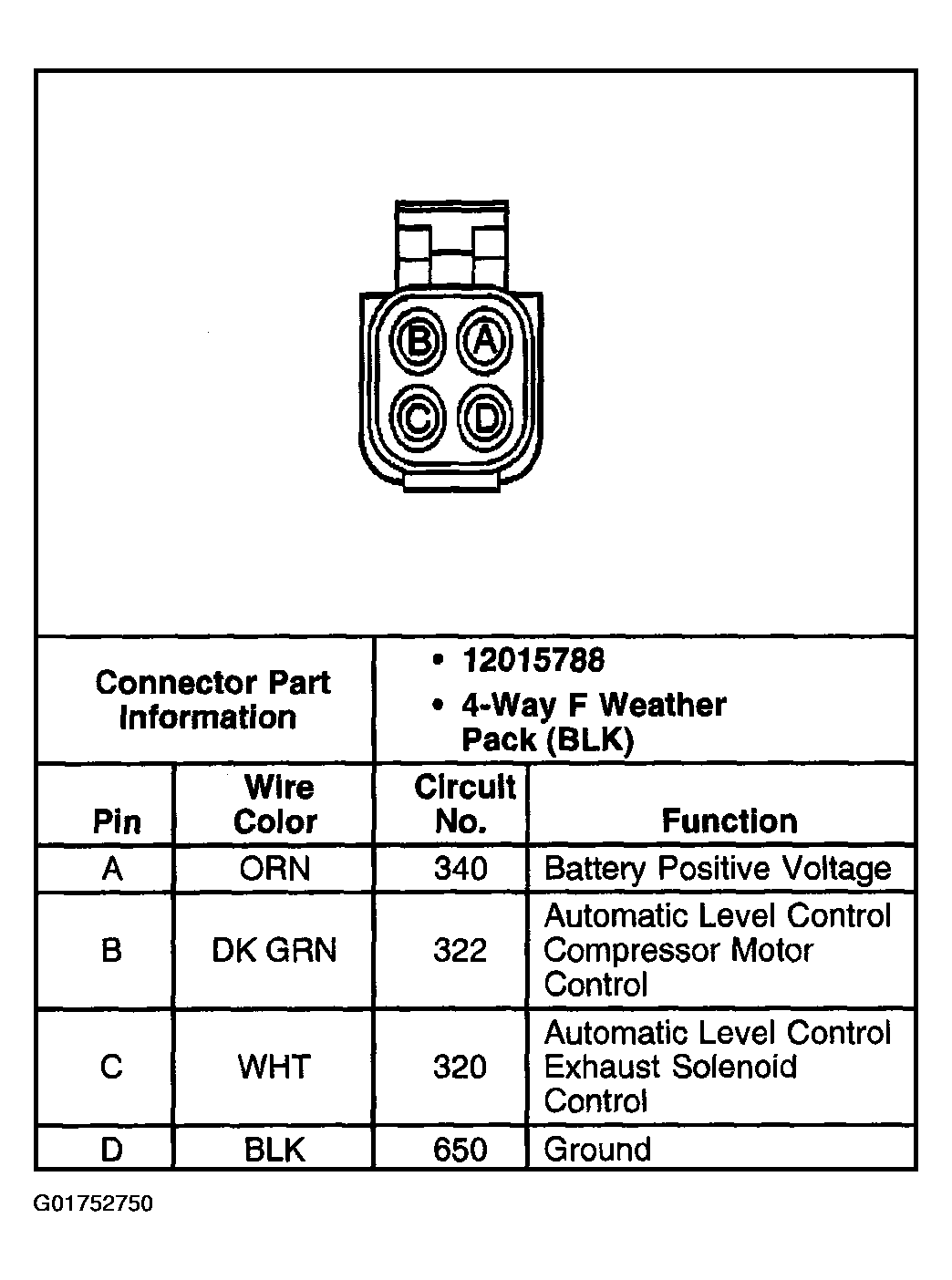

Fig 2: Identifying Automatic Level Control (ALC) Sensor Harness Connector

Courtesy of GENERAL MOTORS CORP.
