Stationary Windows Connector End Views

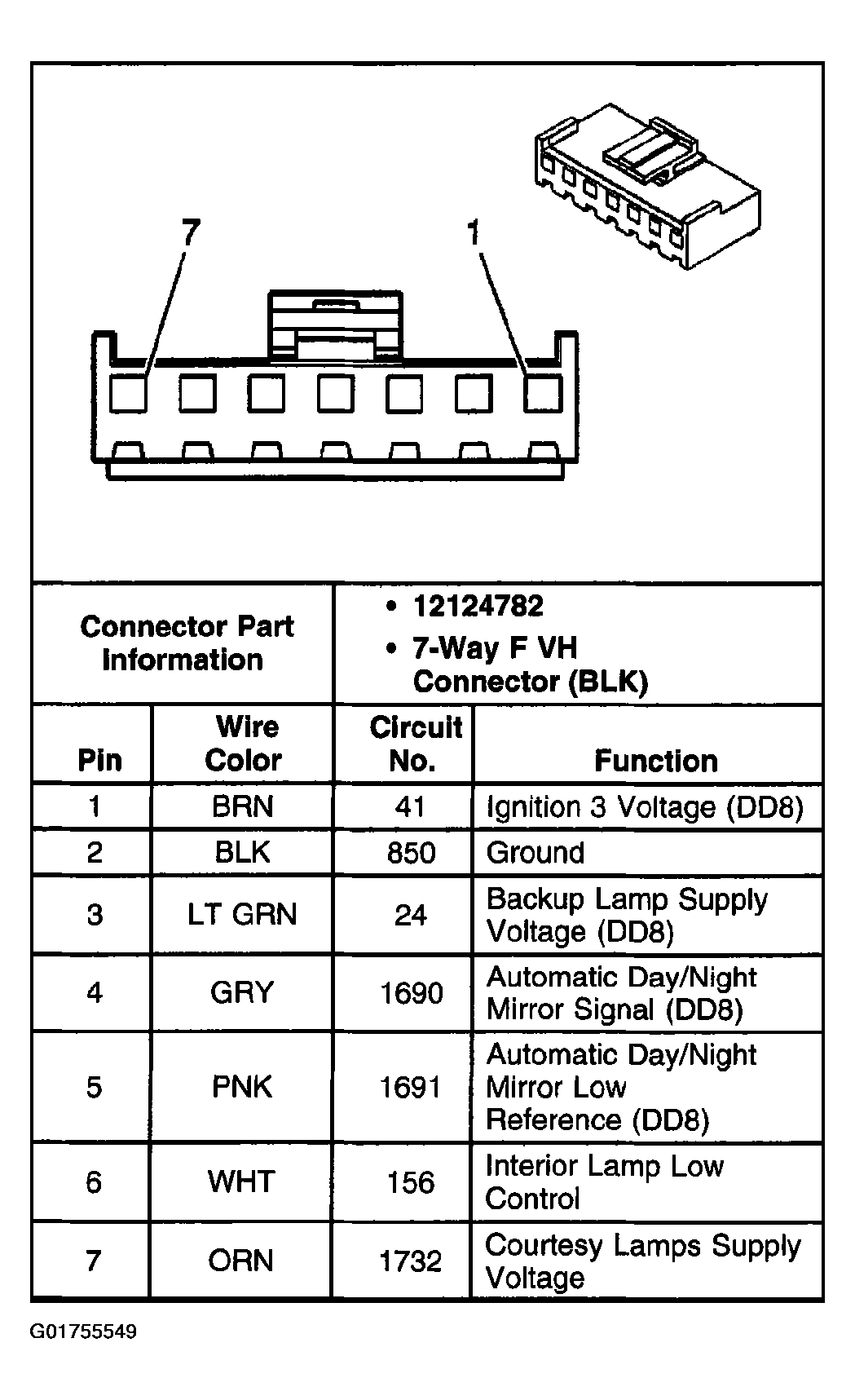

Fig 1: Identifying Inside Rearview Mirror (w/o UE1) Connector End View
G01755549Courtesy of GENERAL MOTORS CORP.

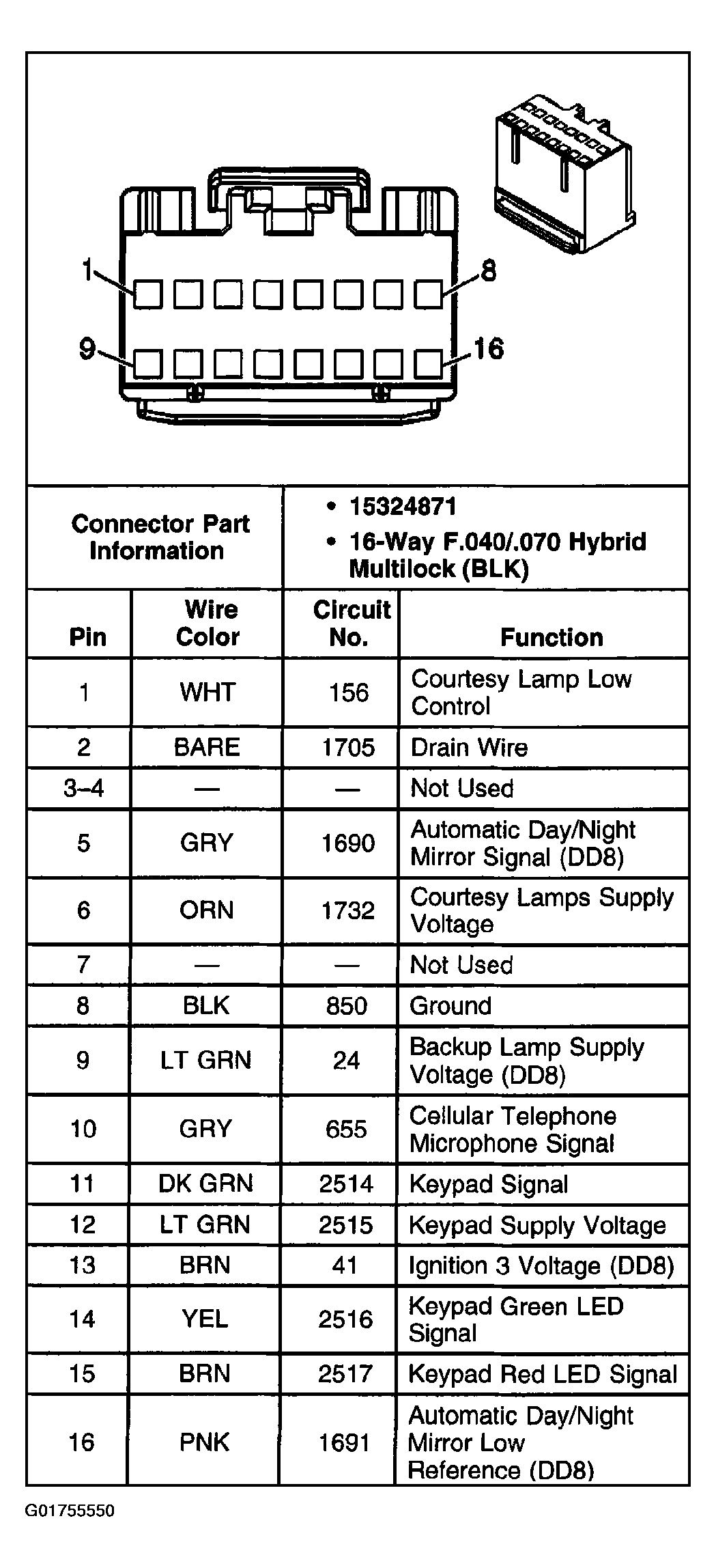

Fig 2: Identifying Inside Rear View Mirror (w/UE1) Connector End View
G01755550Courtesy of GENERAL MOTORS CORP.

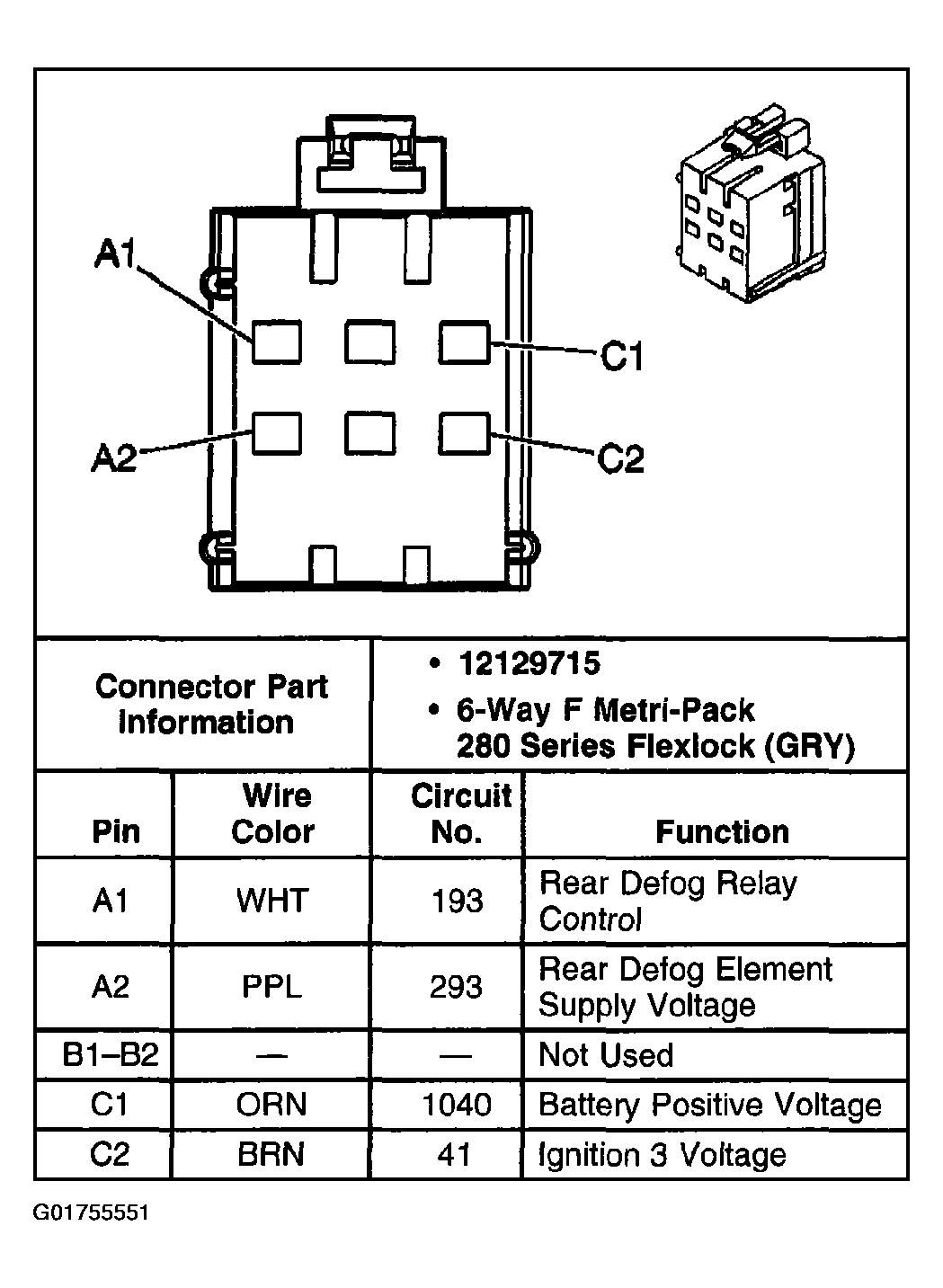

Fig 3: Identifying Rear Window Defogger Relay Connector End View
G01755551Courtesy of GENERAL MOTORS CORP.
