Home › Buick › 2002 › Regal GS › Repair and Diagnosis › Electrical › Horns › Component Locator › Horns Connector End Views

Horns Connector End Views

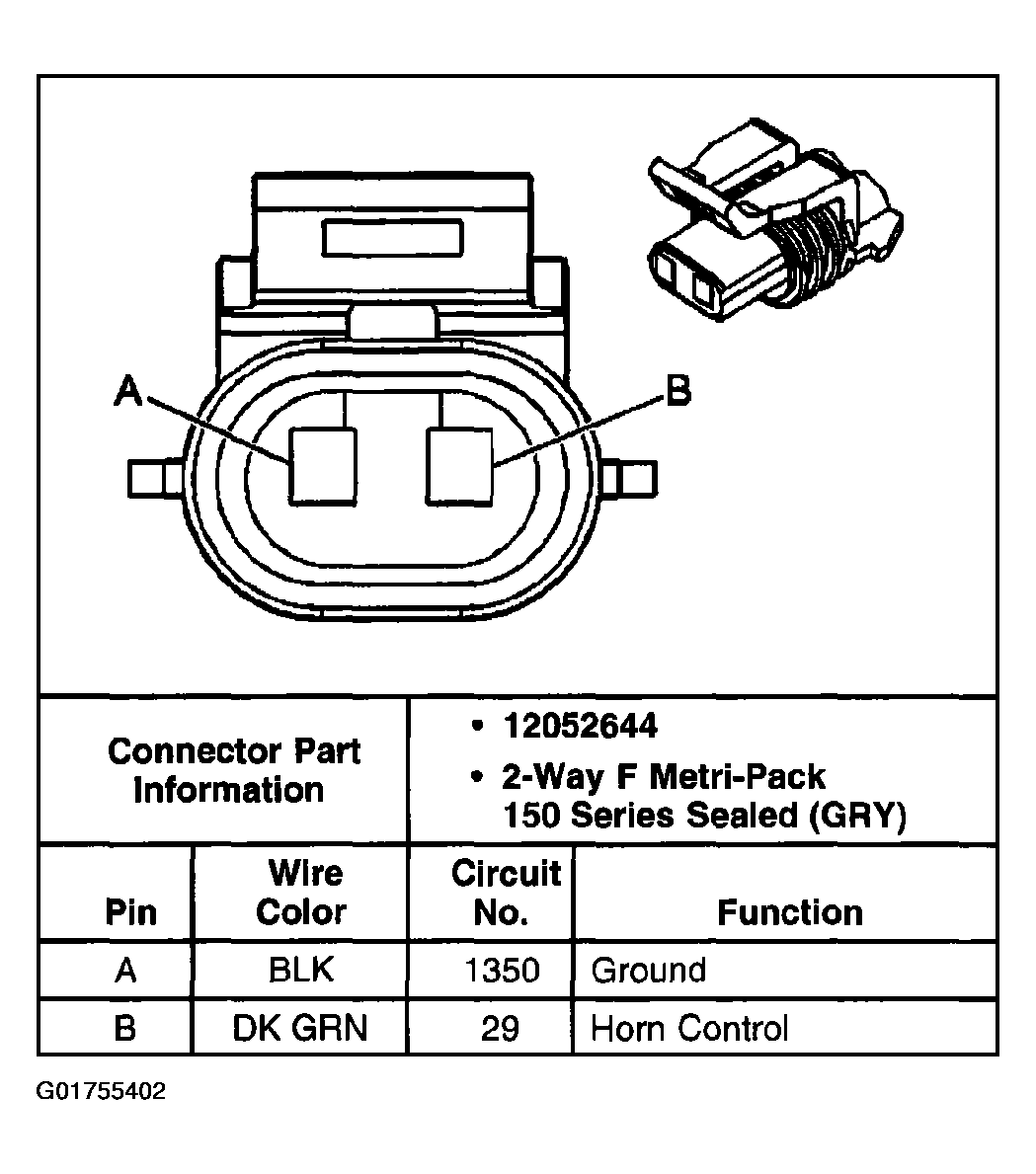

Fig 1: Identifying Horn Connector End View
G01755402Courtesy of GENERAL MOTORS CORP.
