Installation Procedure

  1. Connect the electrical connectors.

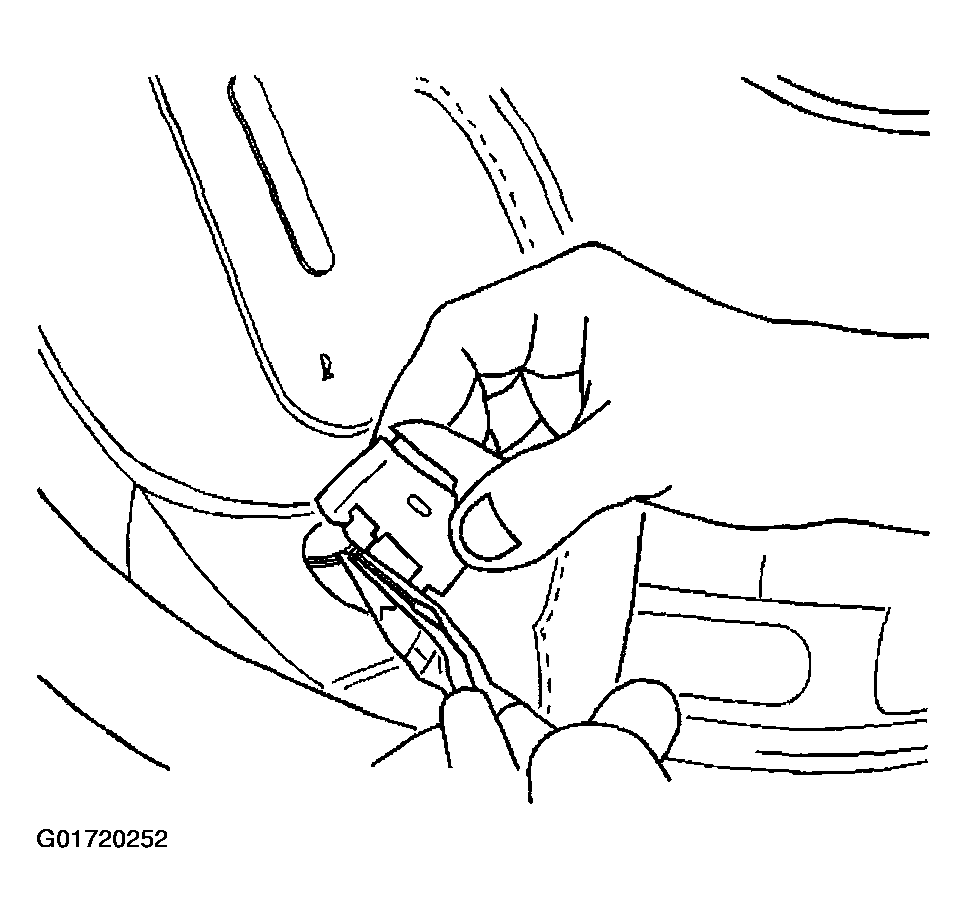

    Fig 1: Electrical Connectors
    G01720252Courtesy of GENERAL MOTORS CORP.
  2. Position the steering wheel control switches to the steering wheel.

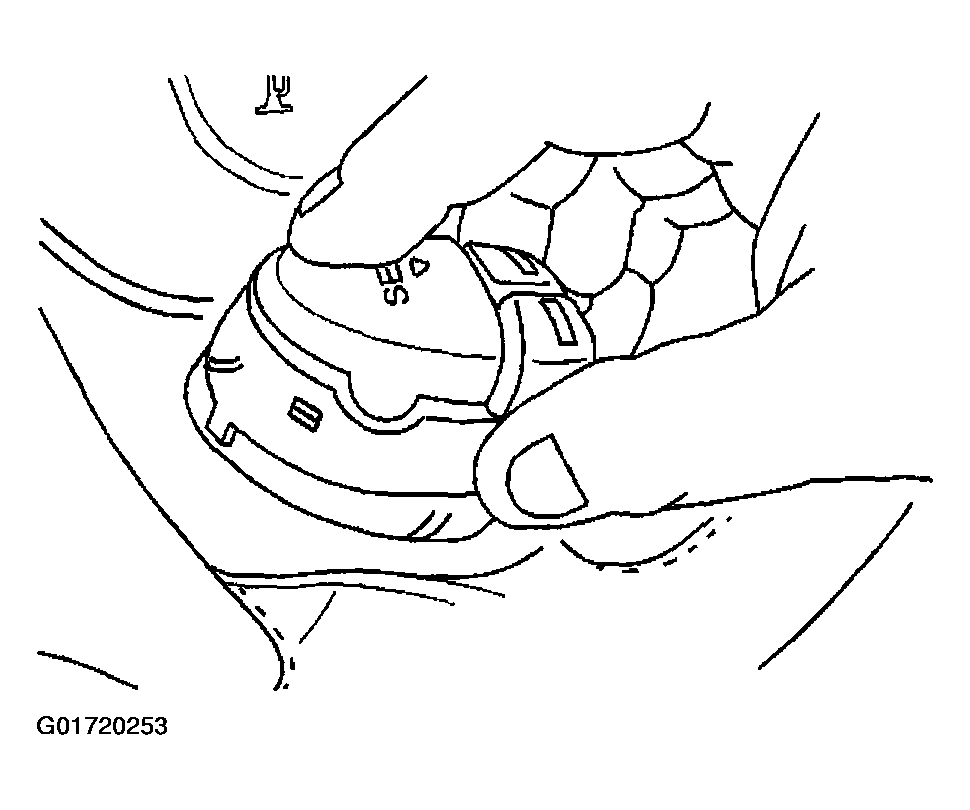

    Fig 2: Steering Wheel Control Switches
    G01720253Courtesy of GENERAL MOTORS CORP.
  3. Install the steering wheel control switches by pressing into place until fully seated.
Fig 3: Installing The Steering Wheel Control Switches
G01720254Courtesy of GENERAL MOTORS CORP.
