Installation Procedure

  1. Connect the door lock electrical connector to the inside door handle bezel.
  2. Connect the radio speaker electrical connector.
  3. Press the bezel onto the door trim panel.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the bezel screw to the inside door handle. Tighten the screw to 2 N.m (18 in lbs).

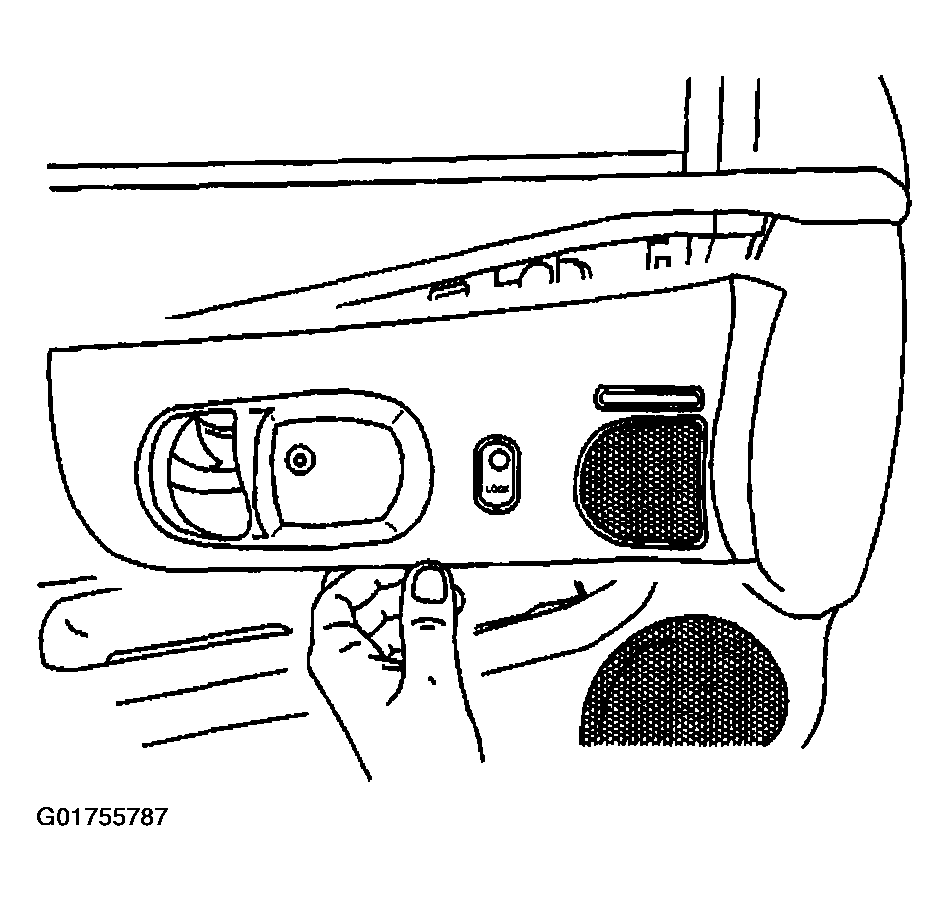

    5. Fig 1: Identifying Front Door Handle Bezel
    G01755787Courtesy of GENERAL MOTORS CORP.
