Removal Procedure

Open the rear door.
Using J 36604 remove the rear door hinge spring from the rear door hinge.
Remove the door hinge spring from the vehicle.

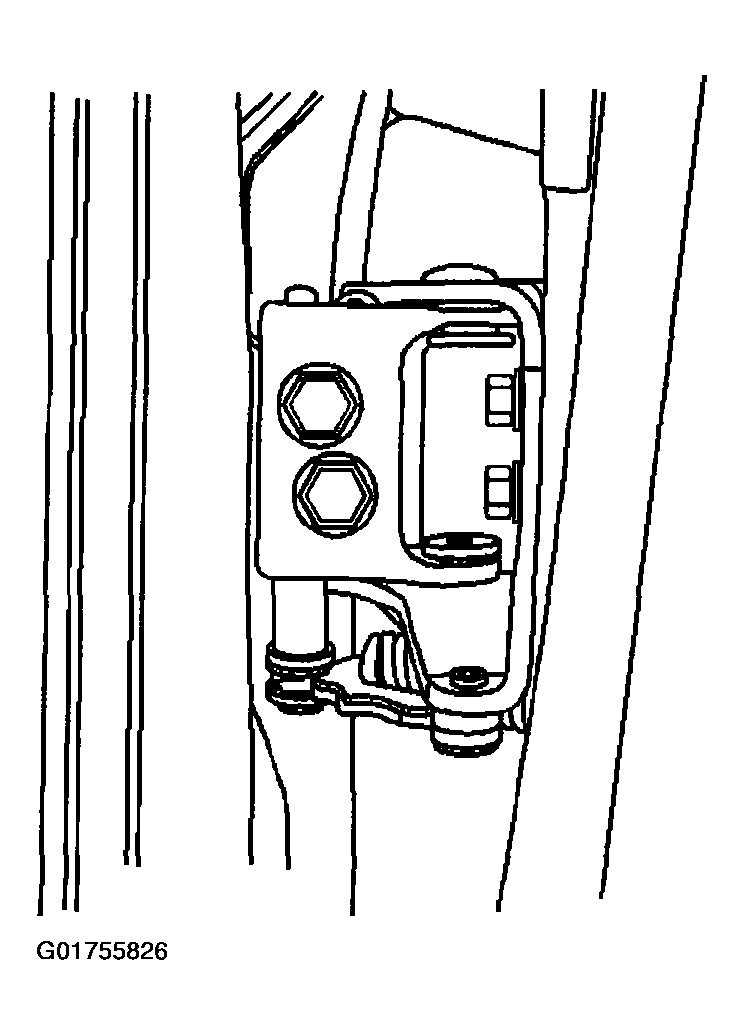

Fig 1: Identifying Rear Door Hinge
Courtesy of GENERAL MOTORS CORP.
