Removal Procedure

Turn the ignition switch to the OFF position.
Remove the attaching bolts for the cruise control module.
Swing the cruise control module off to the side.
Disengage the red locking tab from the connector (1).
Push down lock tab (1) and then move sliding connector cover (2) to the open position.
Disconnect the EBCM harness connector.

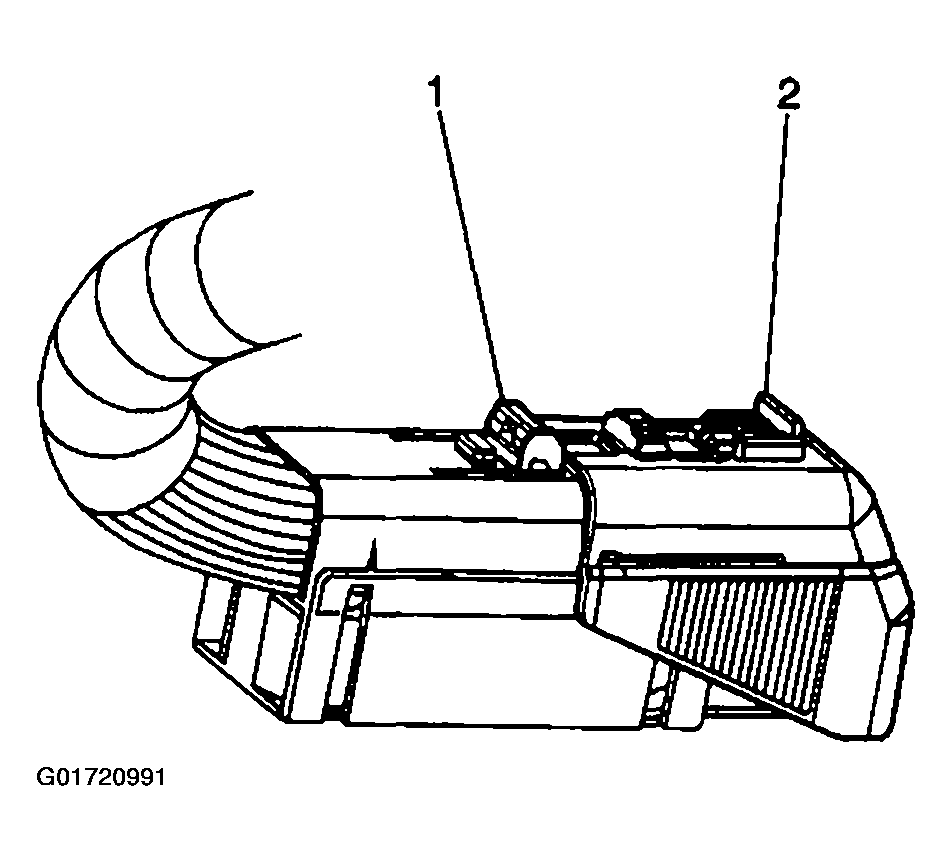

Fig 1: EBCM Harness Connector
Courtesy of GENERAL MOTORS CORP.

NOTE: Note the locations of the brake pipes in order to aid in installation.
Disconnect the wheel cylinder brake pipes (1) from the BPMV (2).
Swing the 4 wheel cylinder brakes pipes out of the way only after covering the open pipes to avoid dripping or being contaminated.

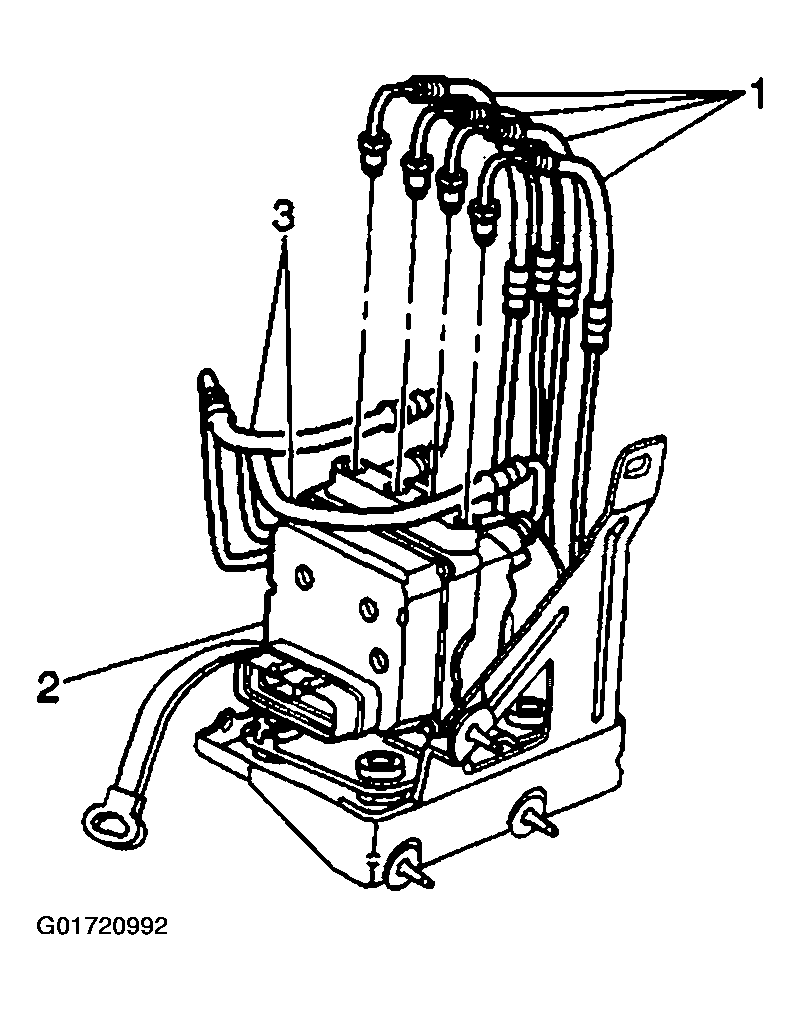

Fig 2: Wheel Cylinder Brake Pipes And BPMV
Courtesy of GENERAL MOTORS CORP.
Disconnect the master cylinder brake pipes (2) from the BPMV (4).
It is not necessary to remove the brake pipes (2) from the master cylinder (1).
Swing the 2 master cylinder brake pipes out of the way only after covering the open pipes to avoid dripping or being contaminated.

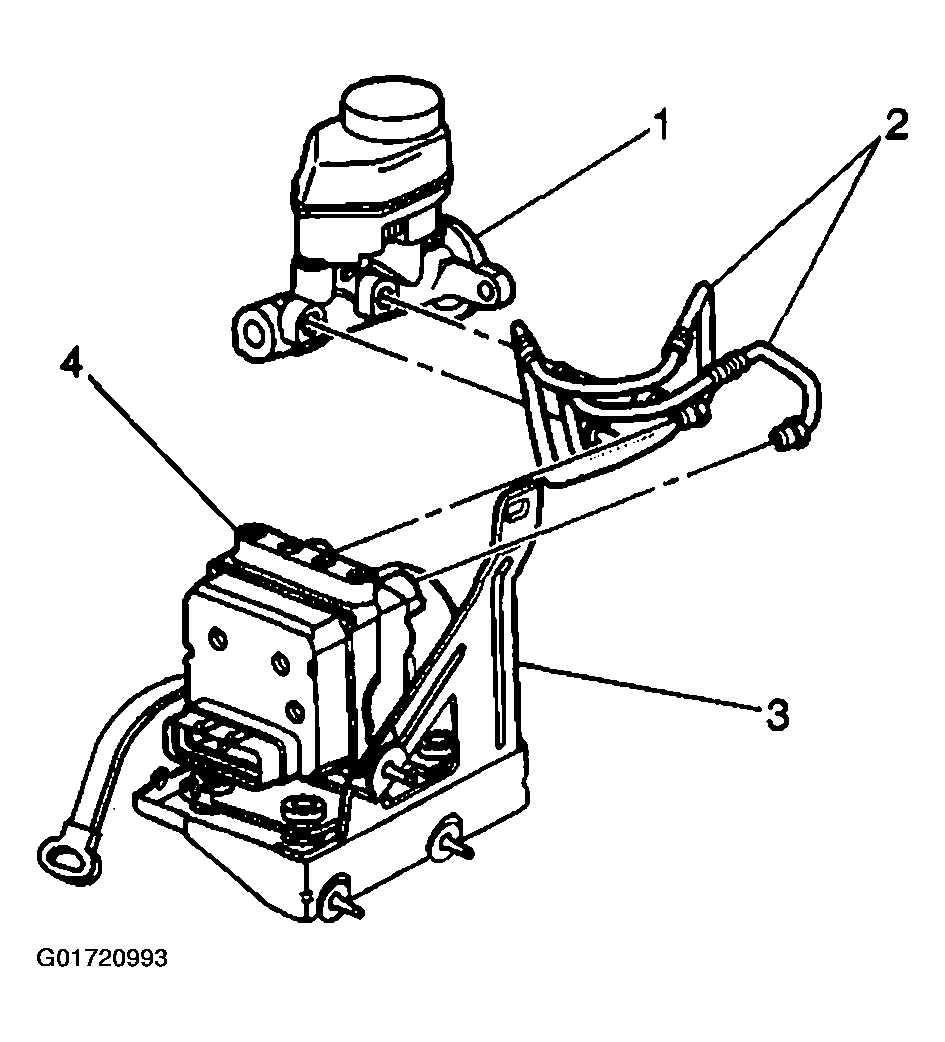

Fig 3: Master Cylinder Brake Pipes And BPMV
Courtesy of GENERAL MOTORS CORP.
Remove the 2 BPMV mounting bracket nuts (3) and 1 bolt located near the bottom and 1 nut (1) located at the top of the BPMV mounting bracket (4) to the strut tower.
Disconnect the ground strap between the EBCM assembly and the chassis.
Remove the BPMV mounting bracket (4) and EBCM assembly (2) from the vehicle.

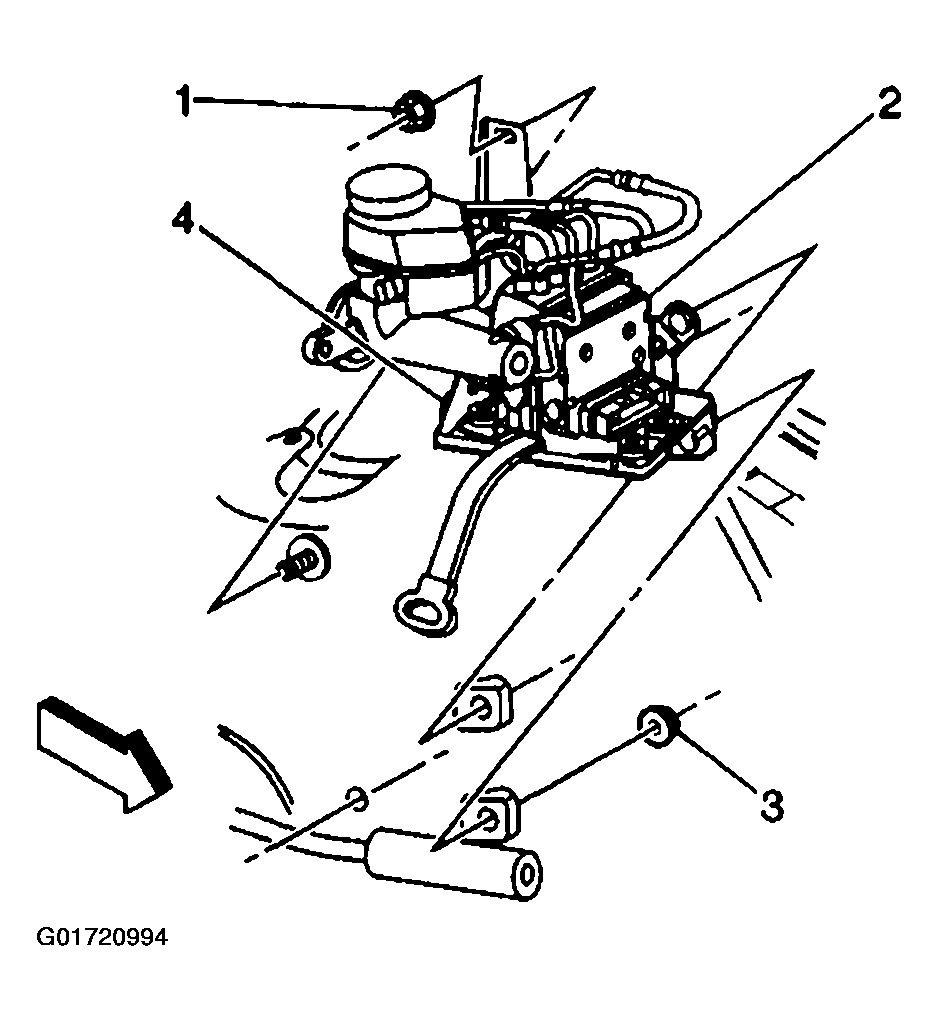

Fig 4: BPMV Mounting Bracket Nuts And EBCM Assembly
Courtesy of GENERAL MOTORS CORP.

NOTE: When removing the brake pressure modulator valve, protect the vehicle exterior from possible brake fluid spillage. Brake fluid can cause damage to painted surfaces.
Remove the 4 bolts (3) that connect the BPMV (1) to the mounting bracket (2).
Remove EBCM if replacing the BPMV only. Refer to Electronic Brake Control Module (EBCM) Replacement .

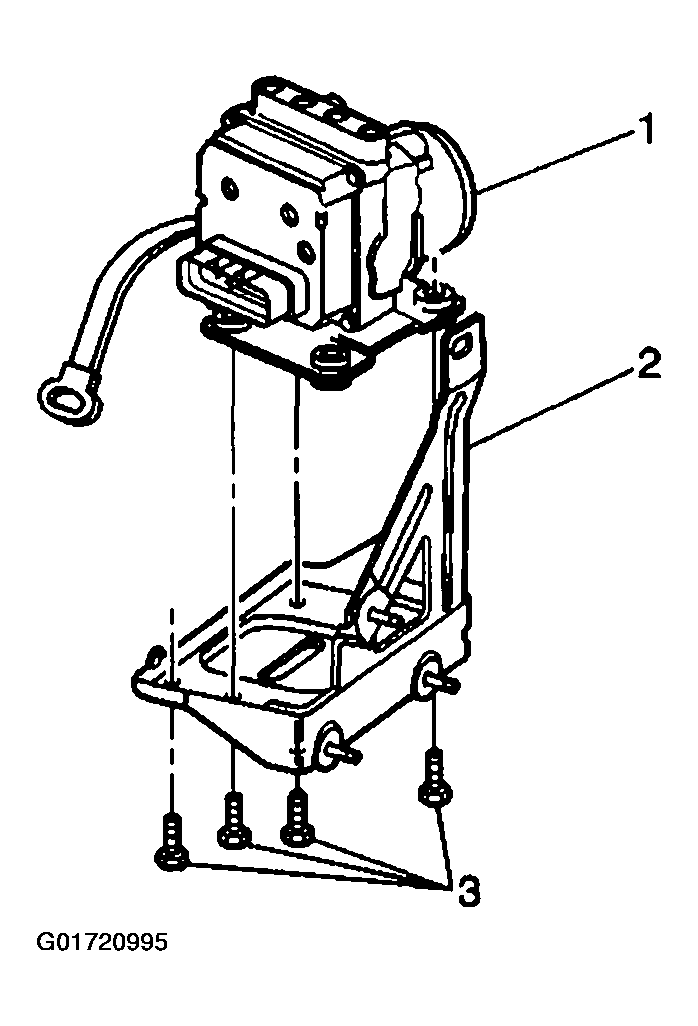

Fig 5: BPMV Mounting Bracket Bolts

Courtesy of GENERAL MOTORS CORP.
