Component Locations

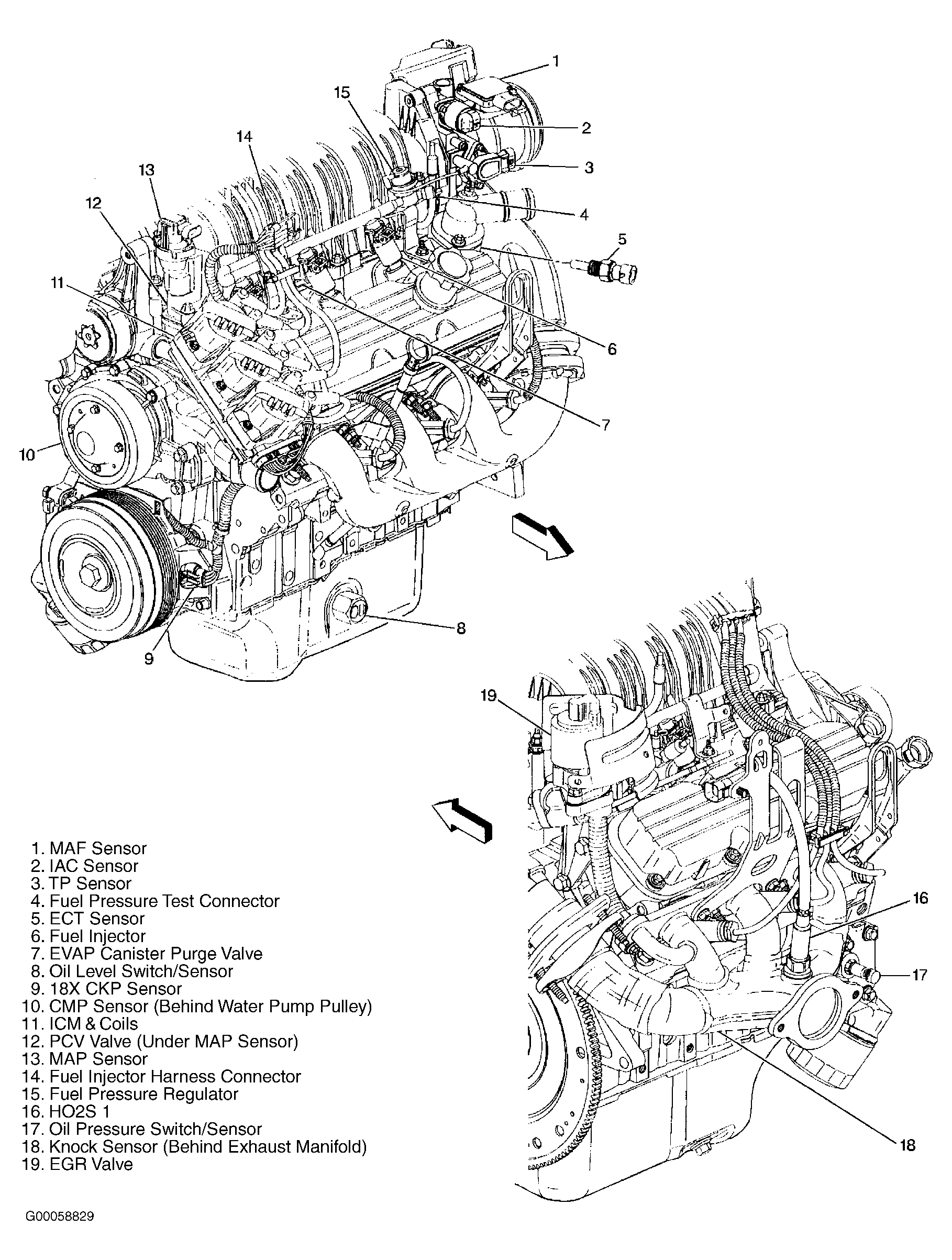

Fig 1: Locating Engine Control Components (VIN K)

G00058829

Courtesy of GENERAL MOTORS CORP.

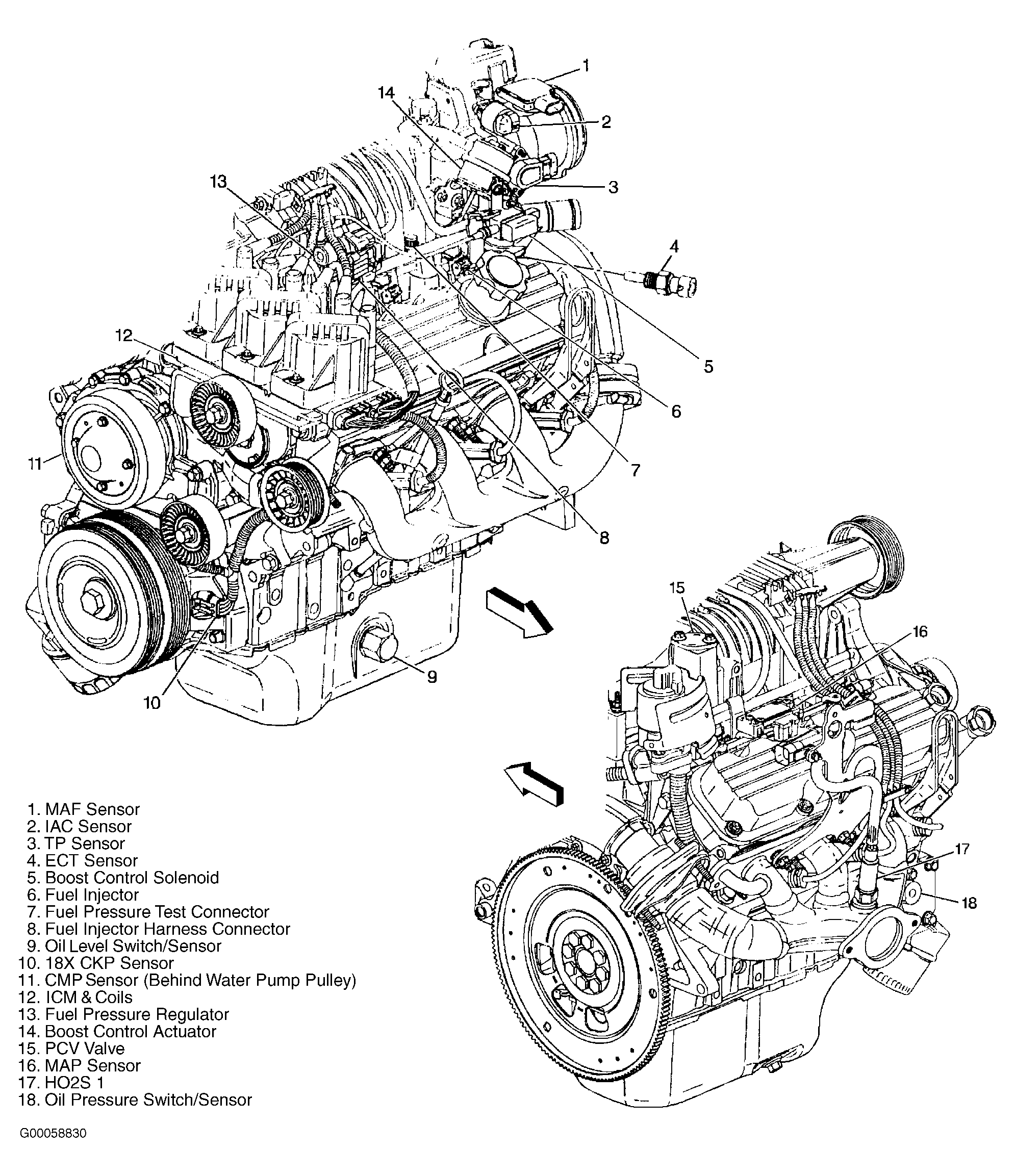

Fig 2: Locating Engine Control Components (VIN 1)

G00058830

Courtesy of GENERAL MOTORS CORP.

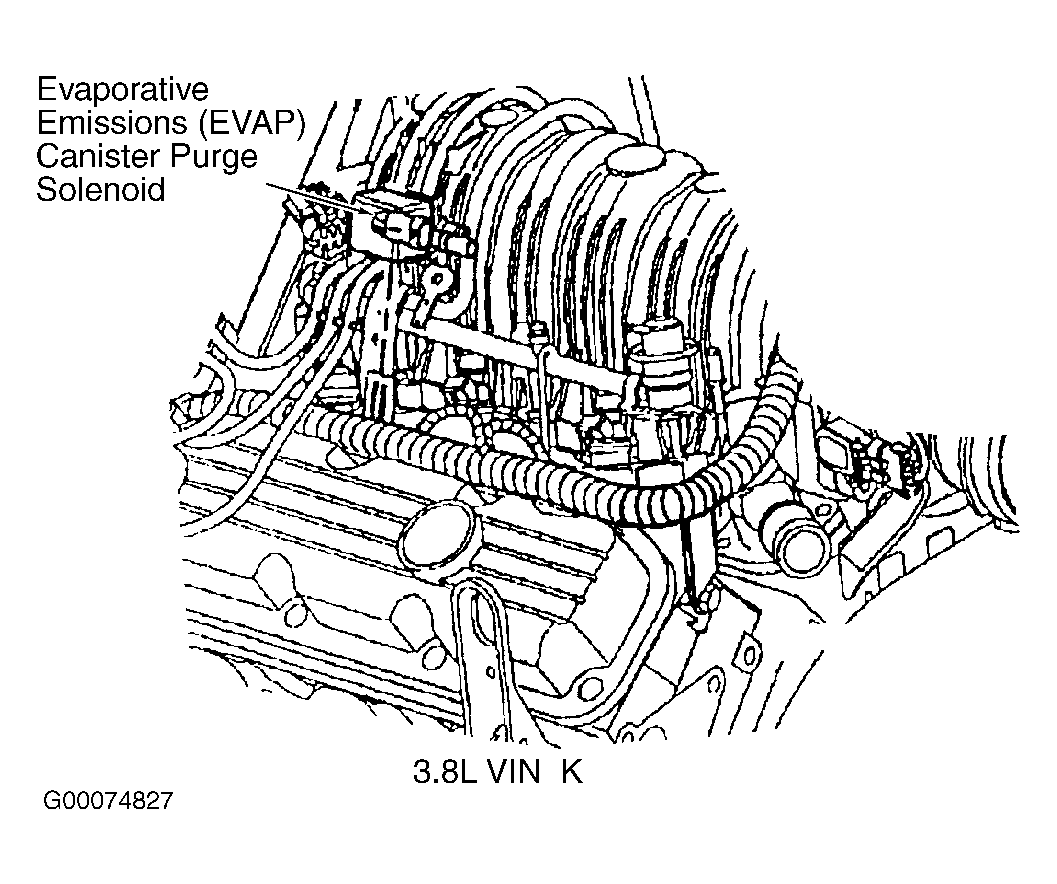

Fig 3: Locating EVAP Purge Solenoid (VIN K)

G00074827

Courtesy of GENERAL MOTORS CORP.

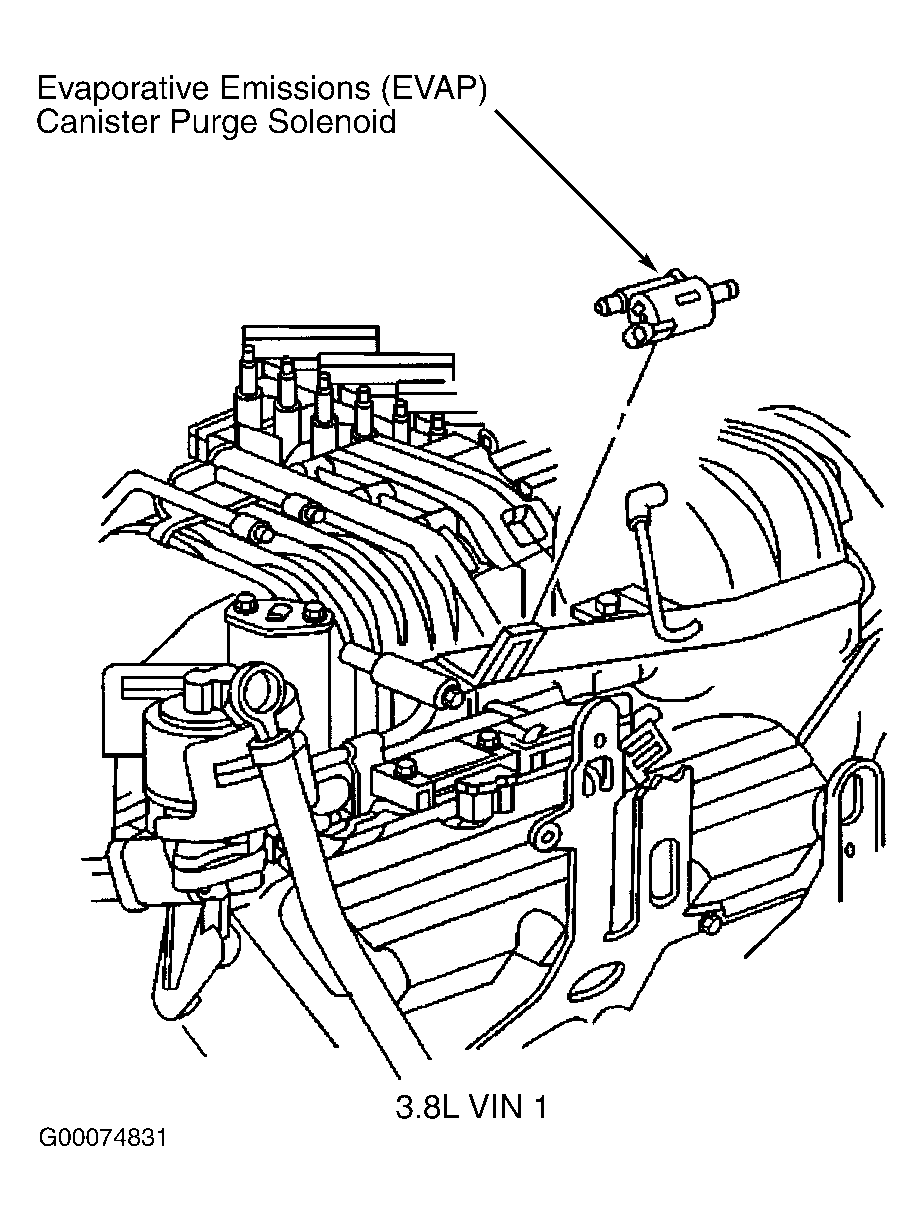

Fig 4: Locating EVAP Purge Solenoid (VIN 1)

G00074831

Courtesy of GENERAL MOTORS CORP.

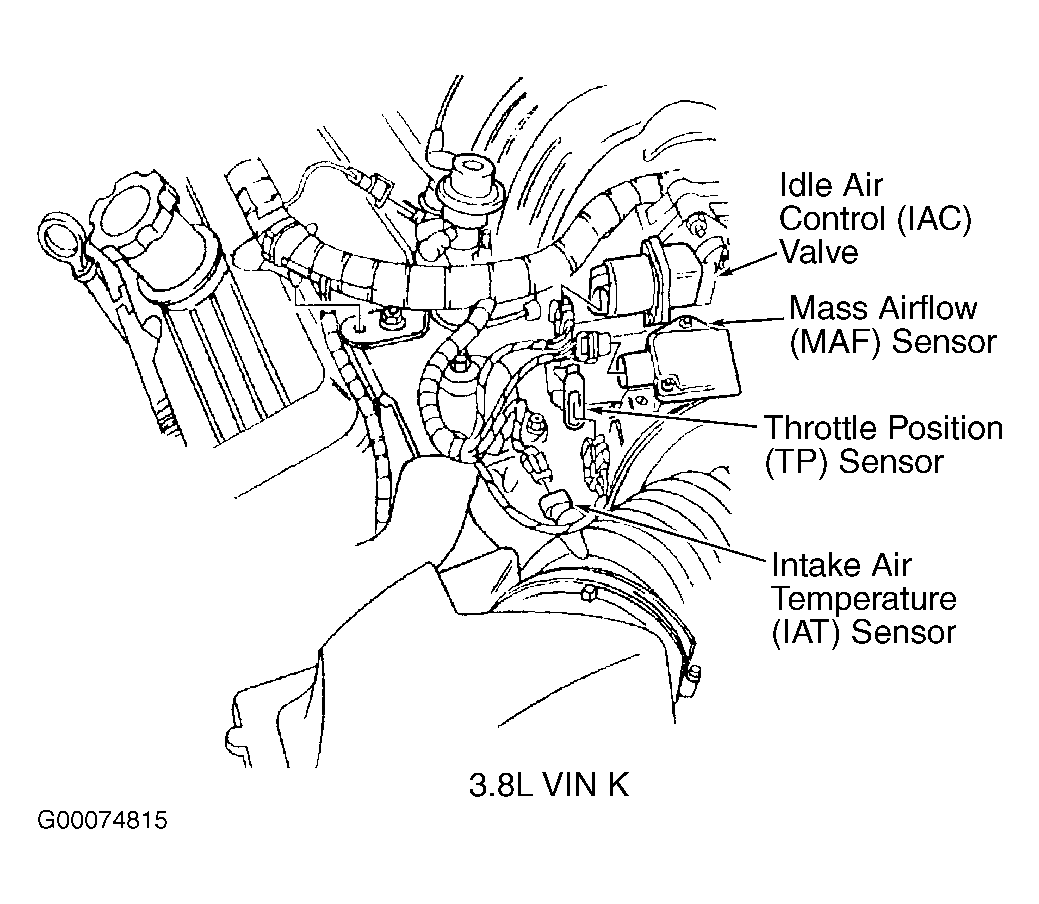

Fig 5: Locating IAT, MAF & TP Sensors (VIN K)

G00074815

Courtesy of GENERAL MOTORS CORP.
