Installation Procedure

Install the belt retractor into the T-slot in the center pillar.
NOTE: Refer to FASTENER NOTICE .
Install the seat belt retractor bolt. Tighten the seat belt retractor bolt to 68 N.m (50 ft lbs).

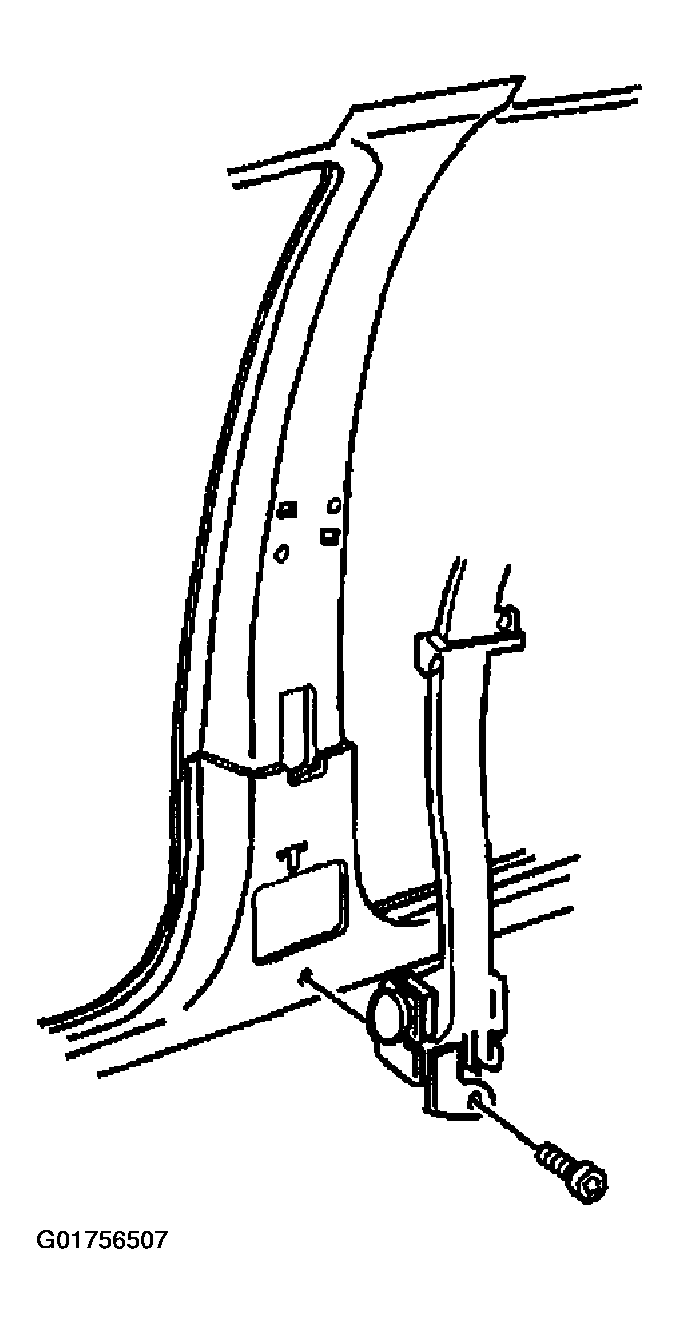

Fig 1: Identifying Lower Center Pillar Seat Belt Retractor
Courtesy of GENERAL MOTORS CORP.
Position the anchor plate to the seat stud.
Install the anchor plate nut to the seat stud. Tighten the anchor plate nut to 42 N.m (31 ft lbs).

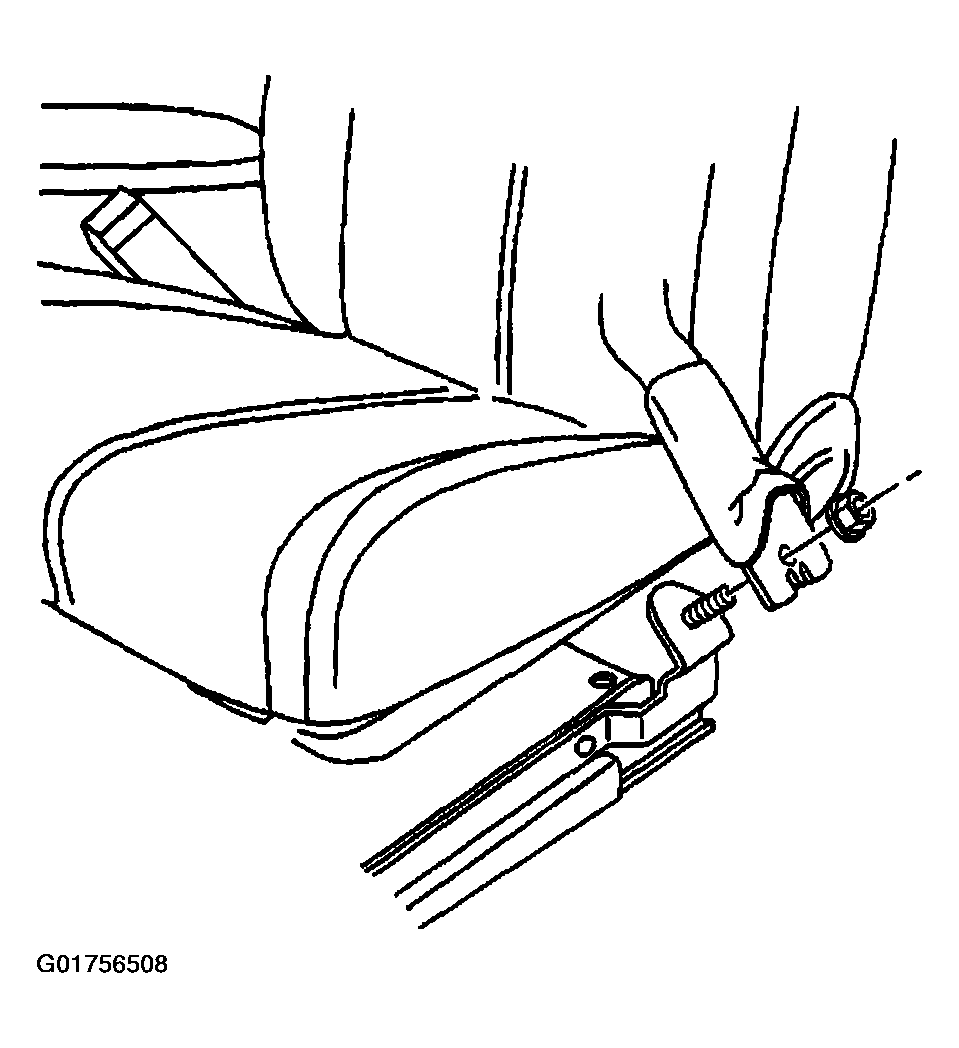

Fig 2: Identifying Seat Stud Anchor Plate Nut
Courtesy of GENERAL MOTORS CORP.
Install the intermediate guide bolts. Tighten the intermediate guide bolts to 10 N.m (89 in lbs).

Fig 3: Identifying Intermediate Guide Bolts
Courtesy of GENERAL MOTORS CORP.
Install the lower center pillar trim. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR .
Position the guide loop to the guide adjuster bracket.
Install the guide loop nut. Tighten the guide loop nut to 42 N.m (31 ft lbs).

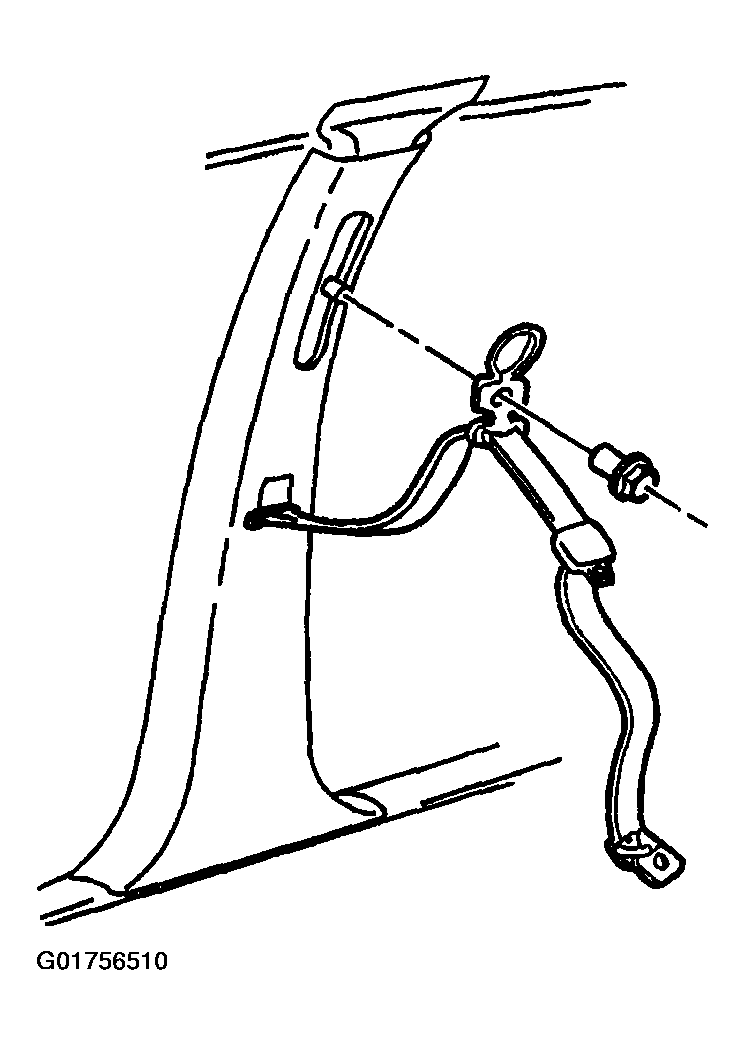

Fig 4: Identifying Left Front Seat Belt Retractor Guide Loop Nut

Courtesy of GENERAL MOTORS CORP.
