Home
›
Buick
›
2002
›
Regal LS
›
Repair and Diagnosis
›
Steering
›
Steering Wheel And Steering Column
›
Component Locator
›
Steering Column Disassembled View (Floor Shift)
Steering Column Disassembled View (Floor Shift)

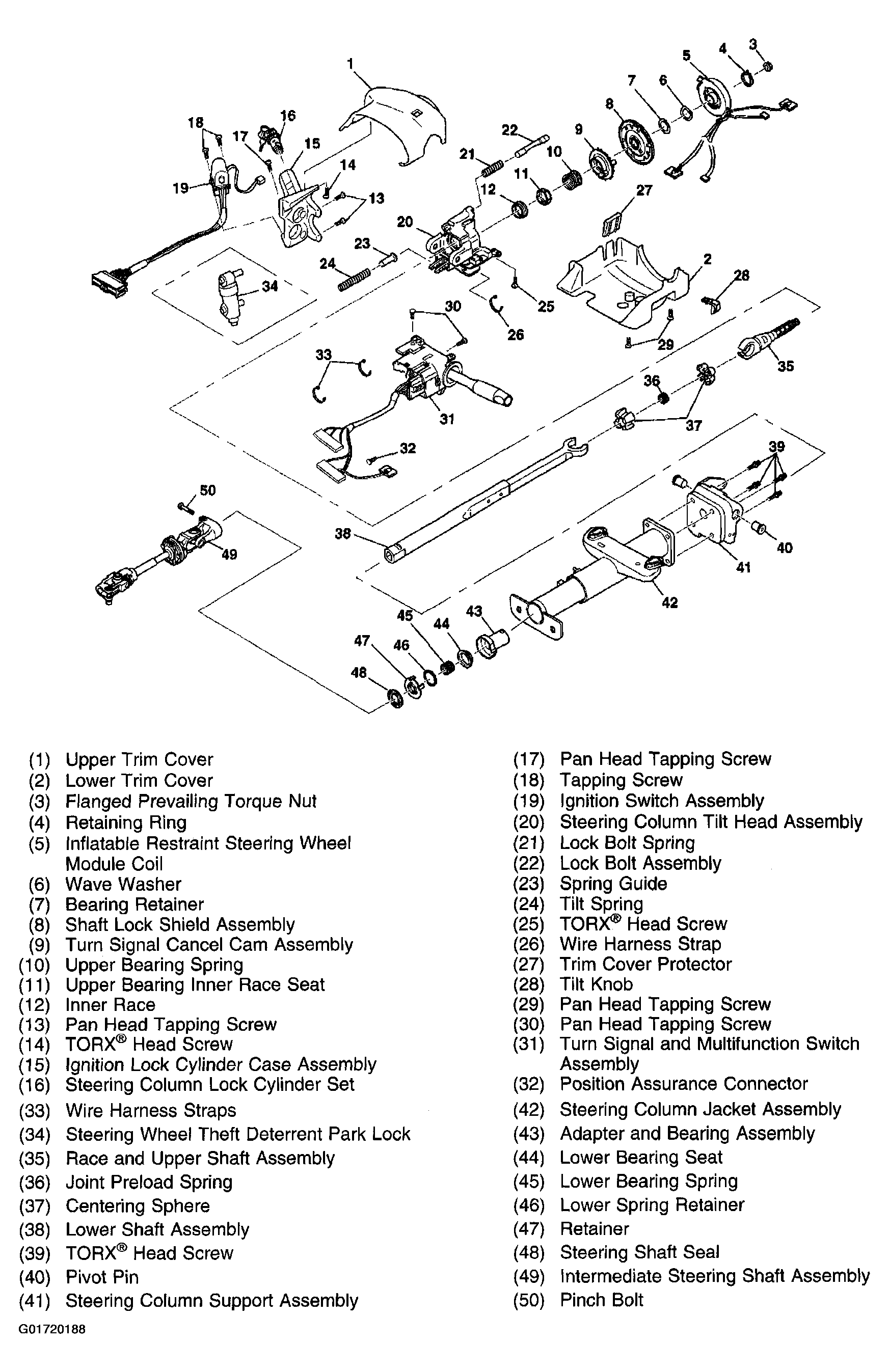

Fig 1: Tilt Steering Column, Floor Shift
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
