Body Control System
›
Component Locator
›
Body Control System Component Views
Body Control System Component Views

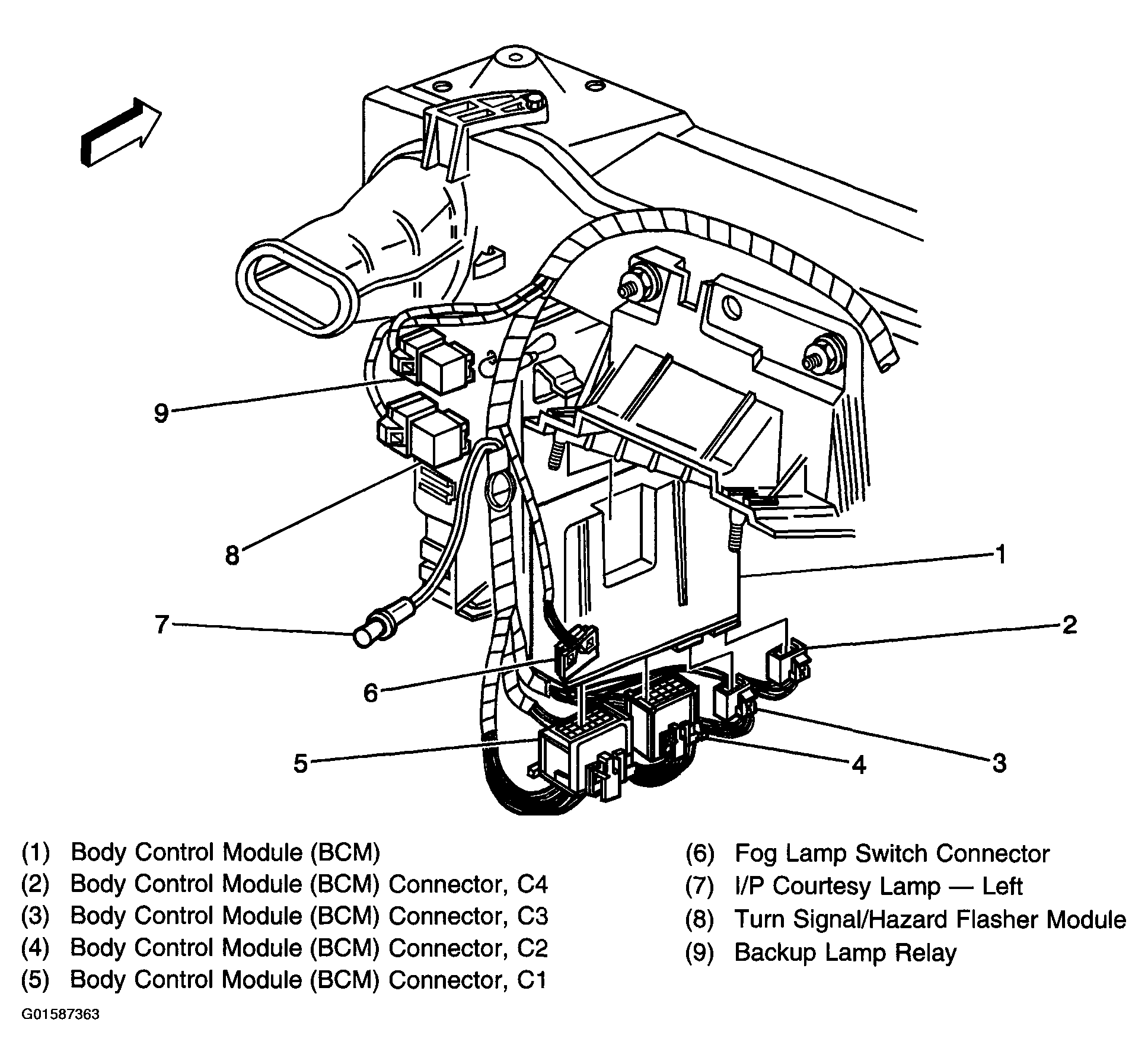

Fig 1: Locating Body Control System Component Views (Below Left Side Of I/P)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
