Schematic and Routing Diagrams

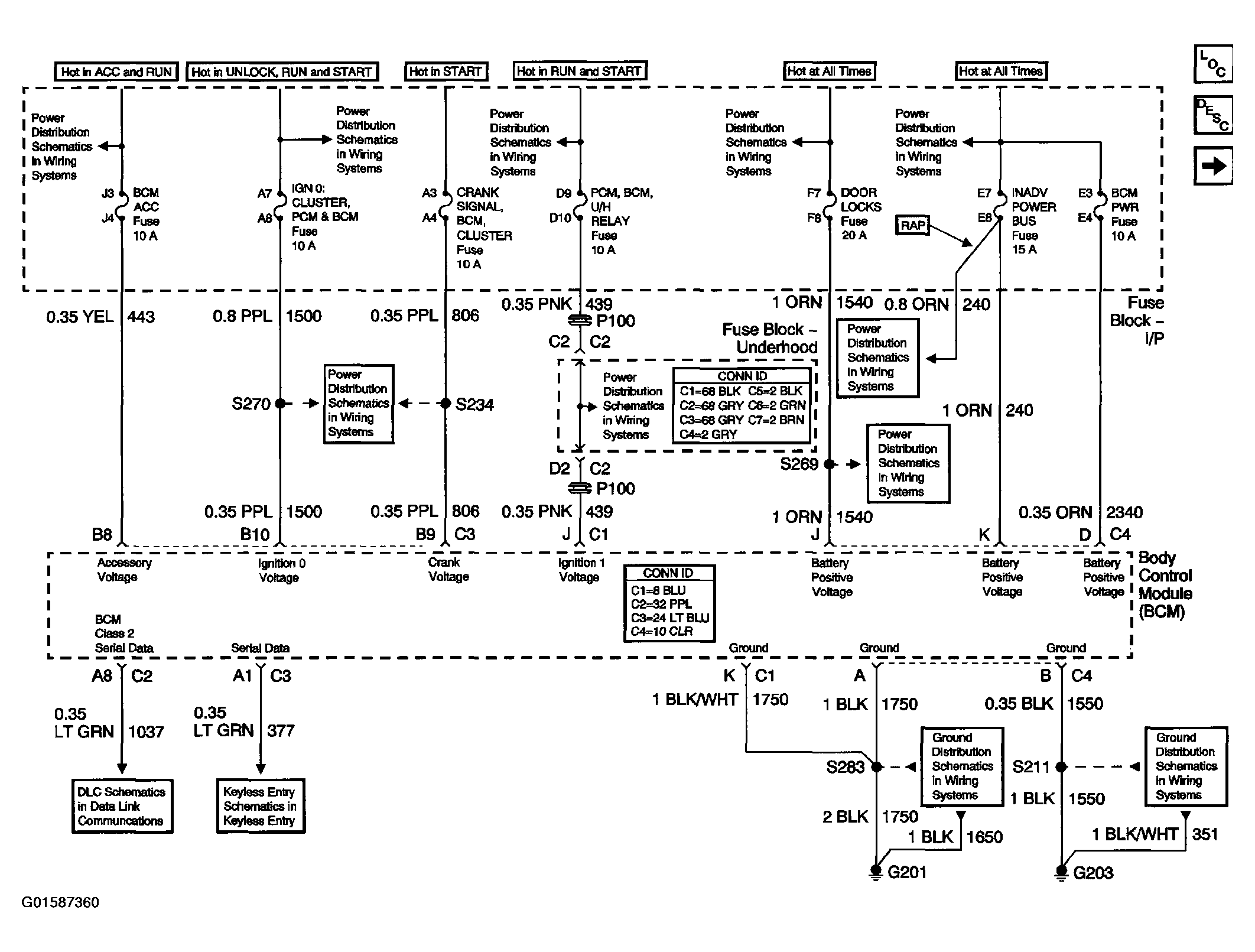

Fig 1: Body Control System Schematics (Power, Ground, And DLC)

Courtesy of GENERAL MOTORS CORP.

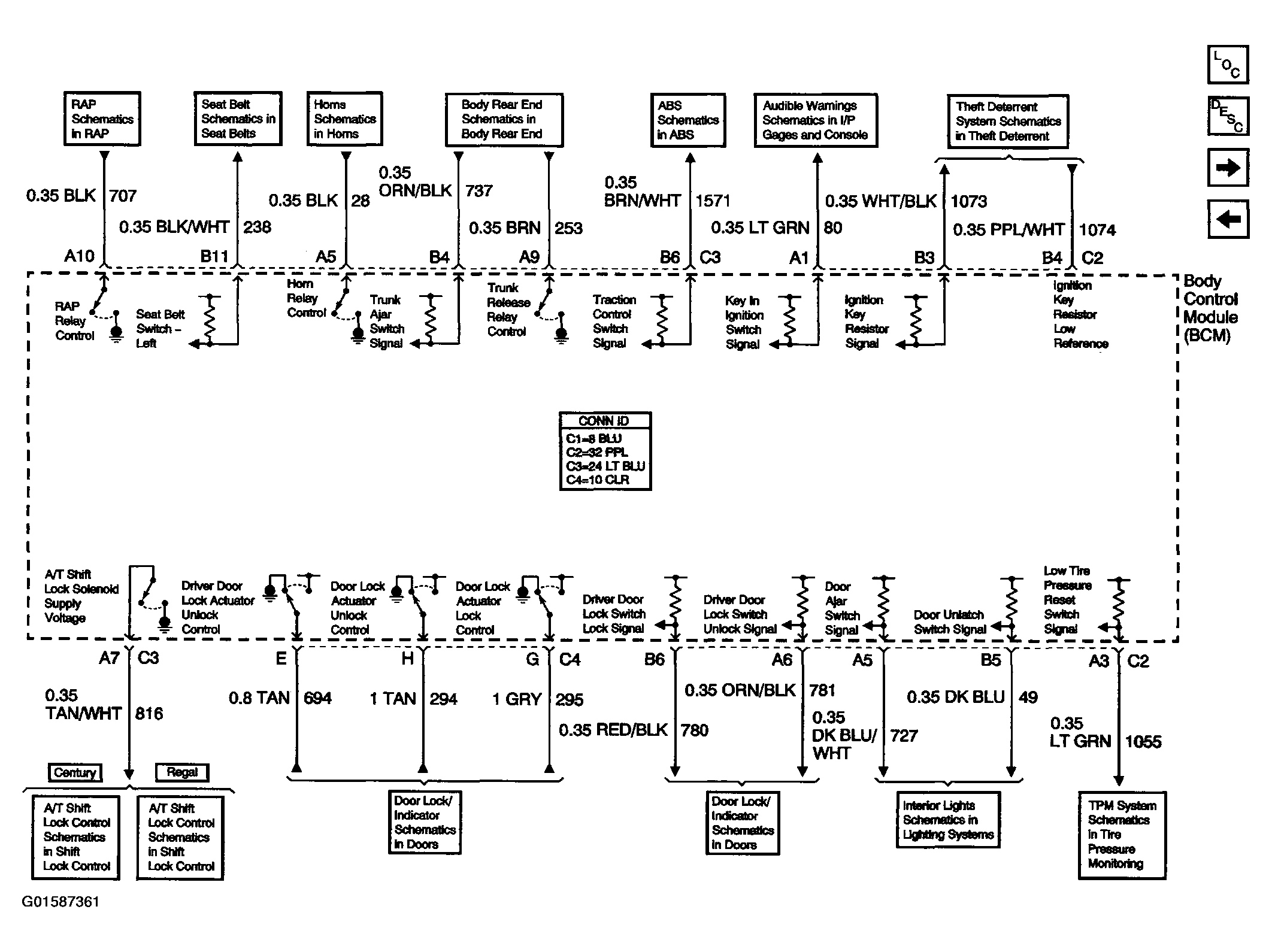

Fig 2: Body Control System Schematics (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

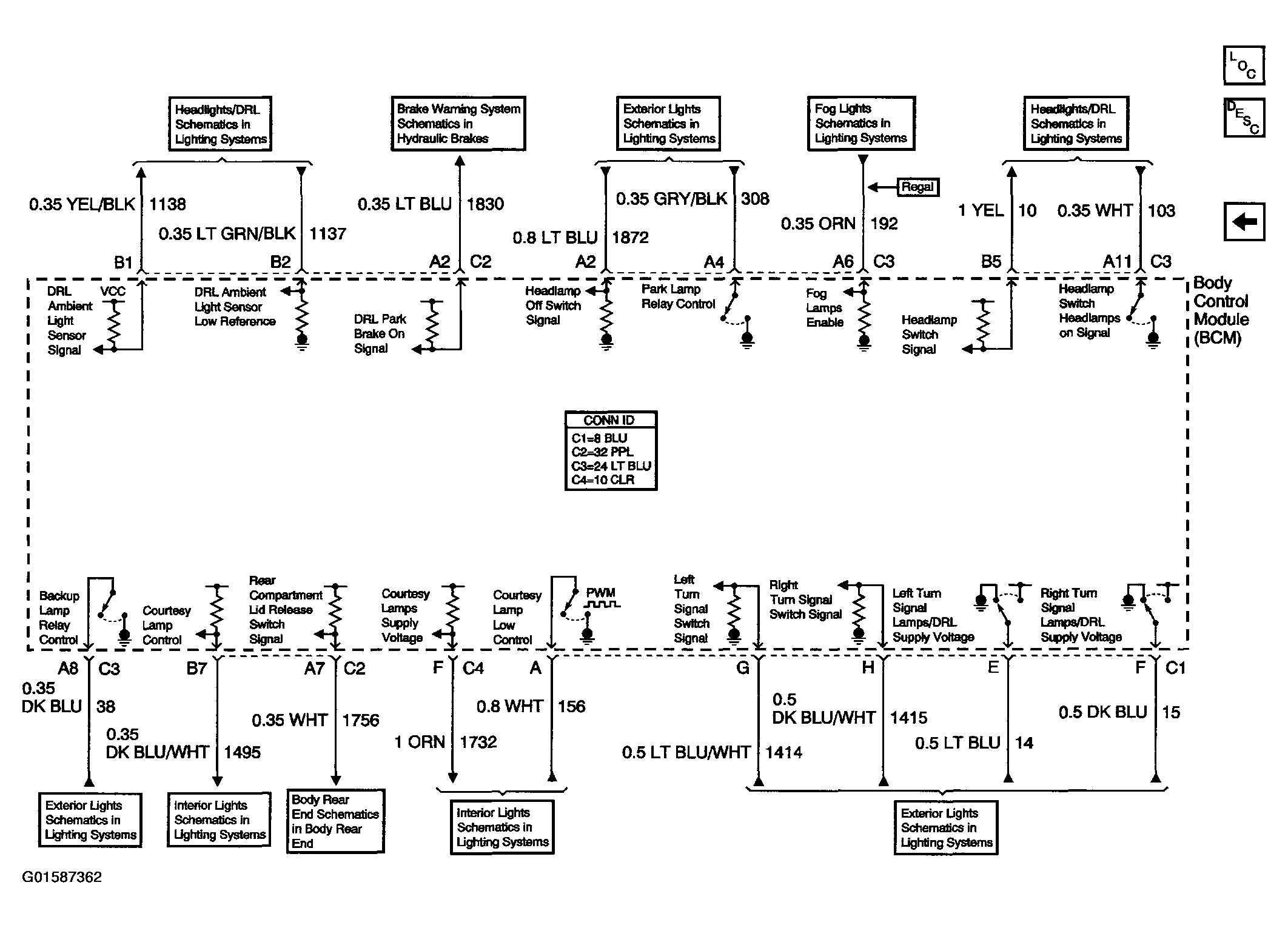

Fig 3: Body Control System Schematics (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
