Data Link Communications Connector End Views

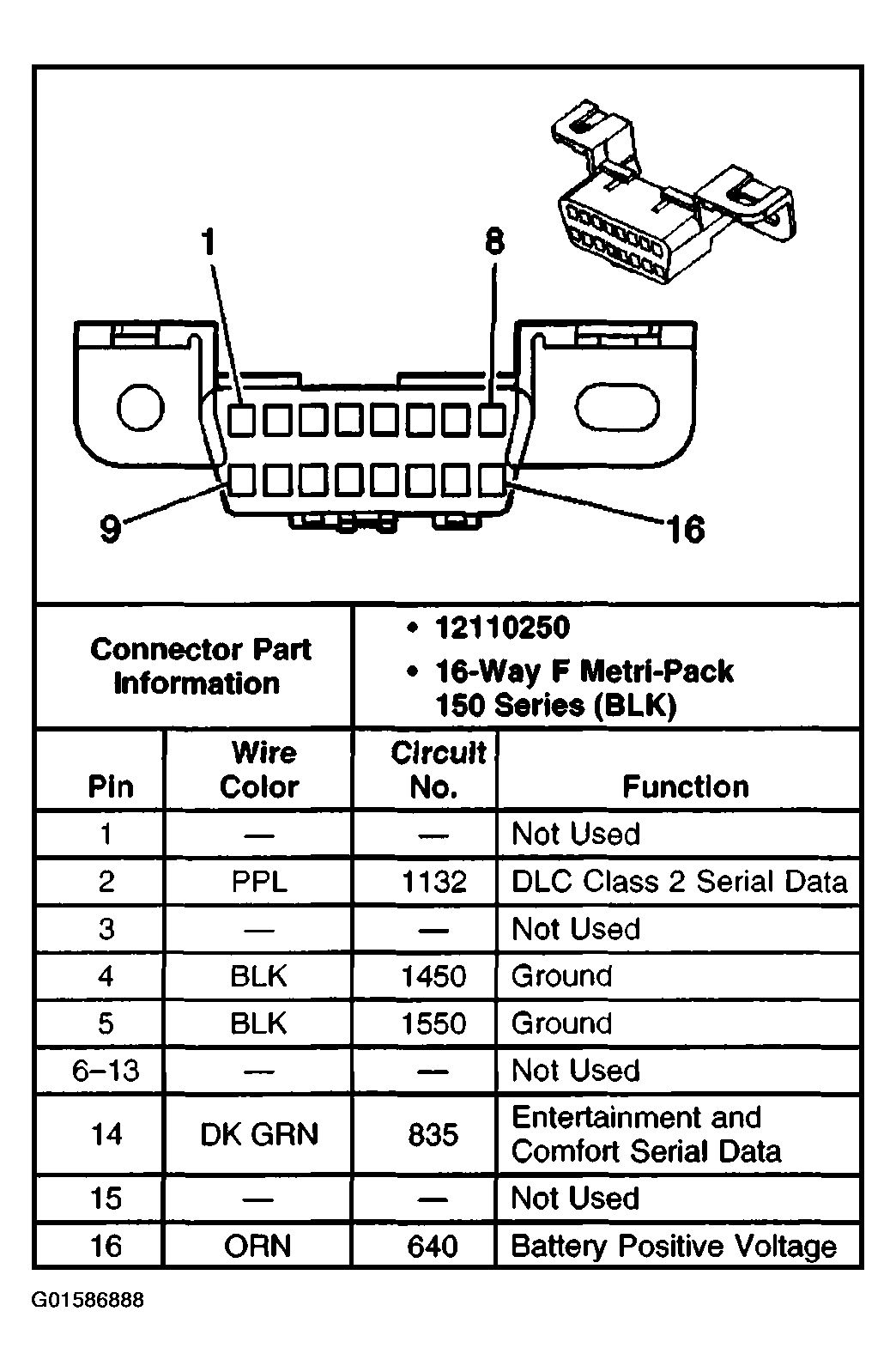

Fig 1: Data Link Connector End View
G01586888Courtesy of GENERAL MOTORS CORP.

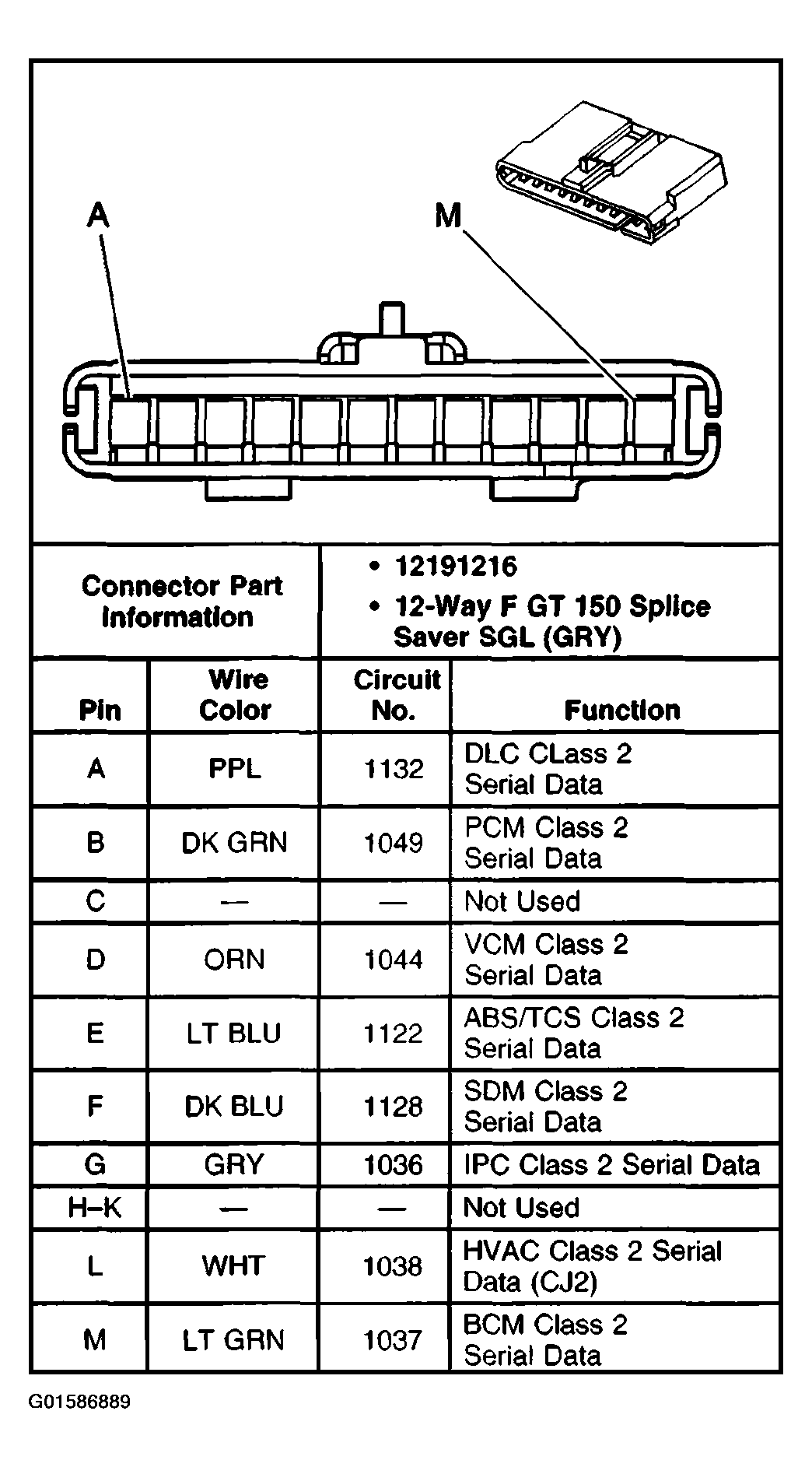

Fig 2: Splice Pack (SP205) Connector End View
G01586889Courtesy of GENERAL MOTORS CORP.
