Removal Procedure

  1. Remove the instrument panel (I/P) cluster trim plate. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages, and Console.
  2. Remove the radio screws.

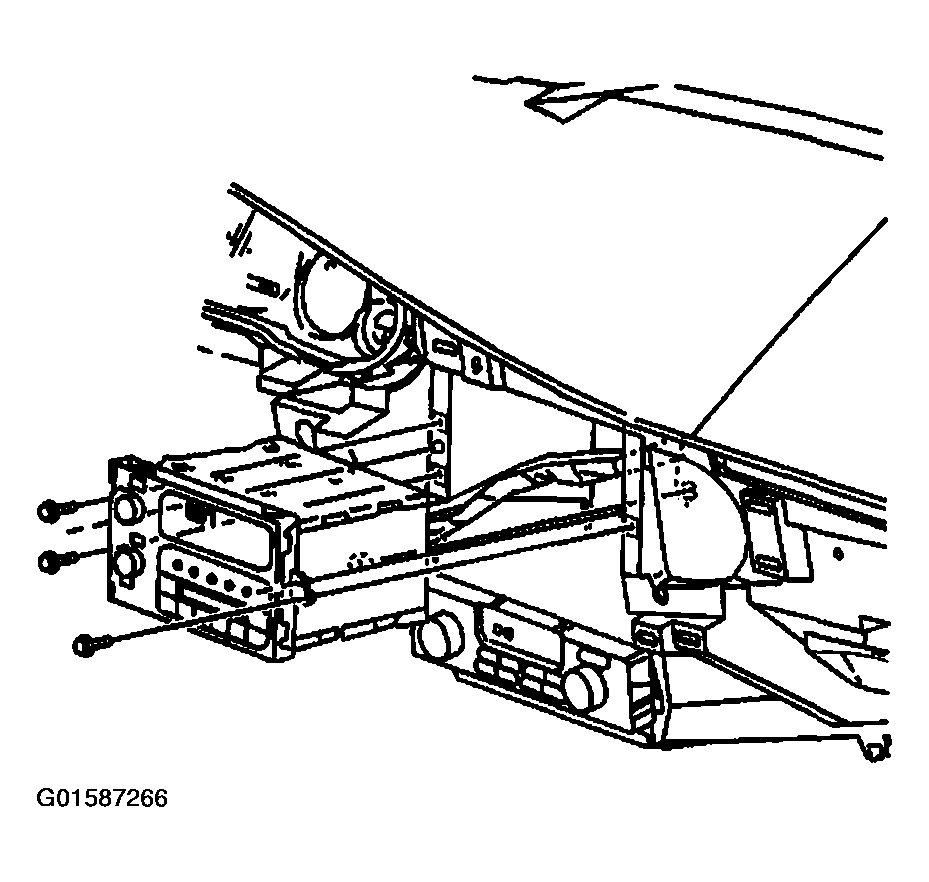

    Fig 1: Removing Radio & Retaining Screws
    G01587266Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector and the coaxial cable connector from the radio.
  4. Remove the radio from the I/P.
