Steering Column Disassembled View (Column Shift)

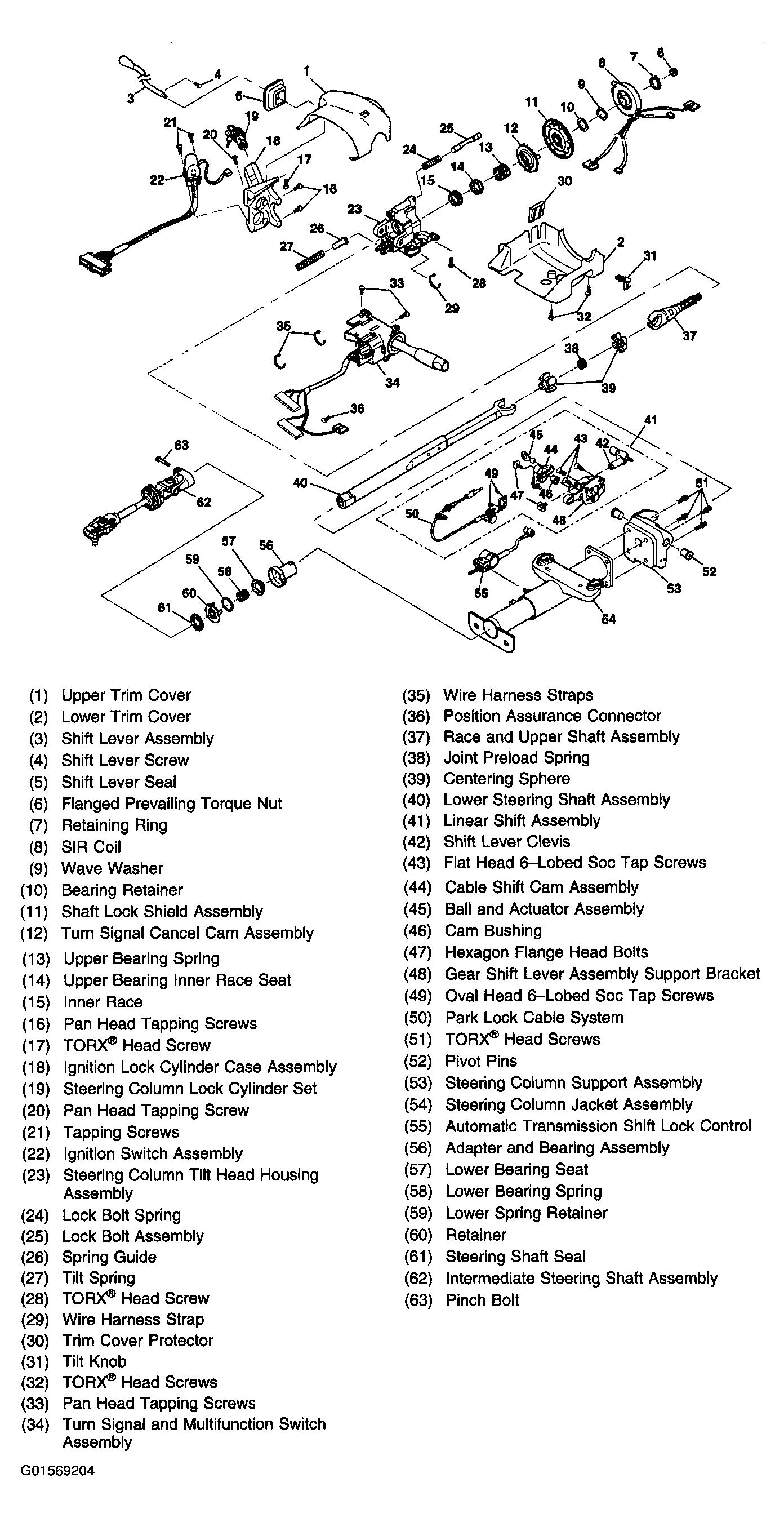

Fig 1: Exploded View Of Tilt Steering Column, Column Shift
G01569204Courtesy of GENERAL MOTORS CORP.
