Installation Procedure

  1. Install the inflatable restraint, left side impact module, if equipped. Refer to REMOVAL & INSTALLATION (SIDE IMPACT) in SIR.
  2. Install the front seat back pad to the front seat back frame. Refer to SEAT BACK PAD REPLACEMENT - FRONT  .

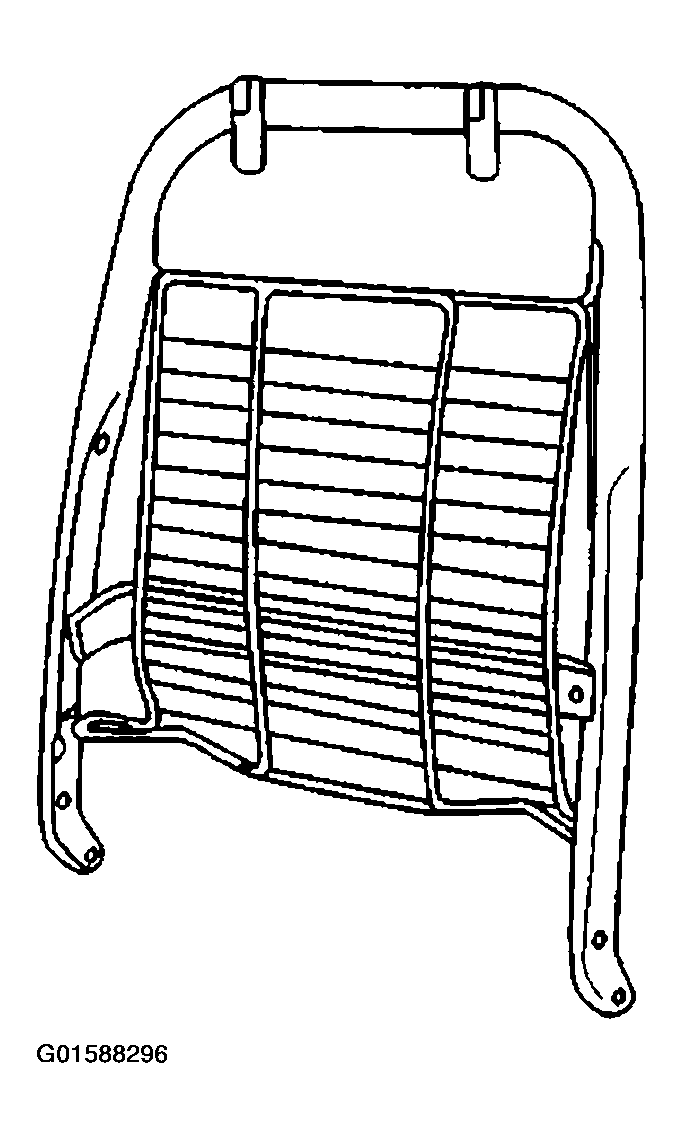

    3. Fig 1: Installing Front Seat Back Frame
    G01588296Courtesy of GENERAL MOTORS CORP.
  3. Install the front seat back. Refer to SEAT BACK REPLACEMENT - FRONT (SPLIT BENCH)  or SEAT BACK REPLACEMENT - FRONT (BUCKET SEAT)  .
