Power Roof Systems Component Views
Power Roof Systems Component Views

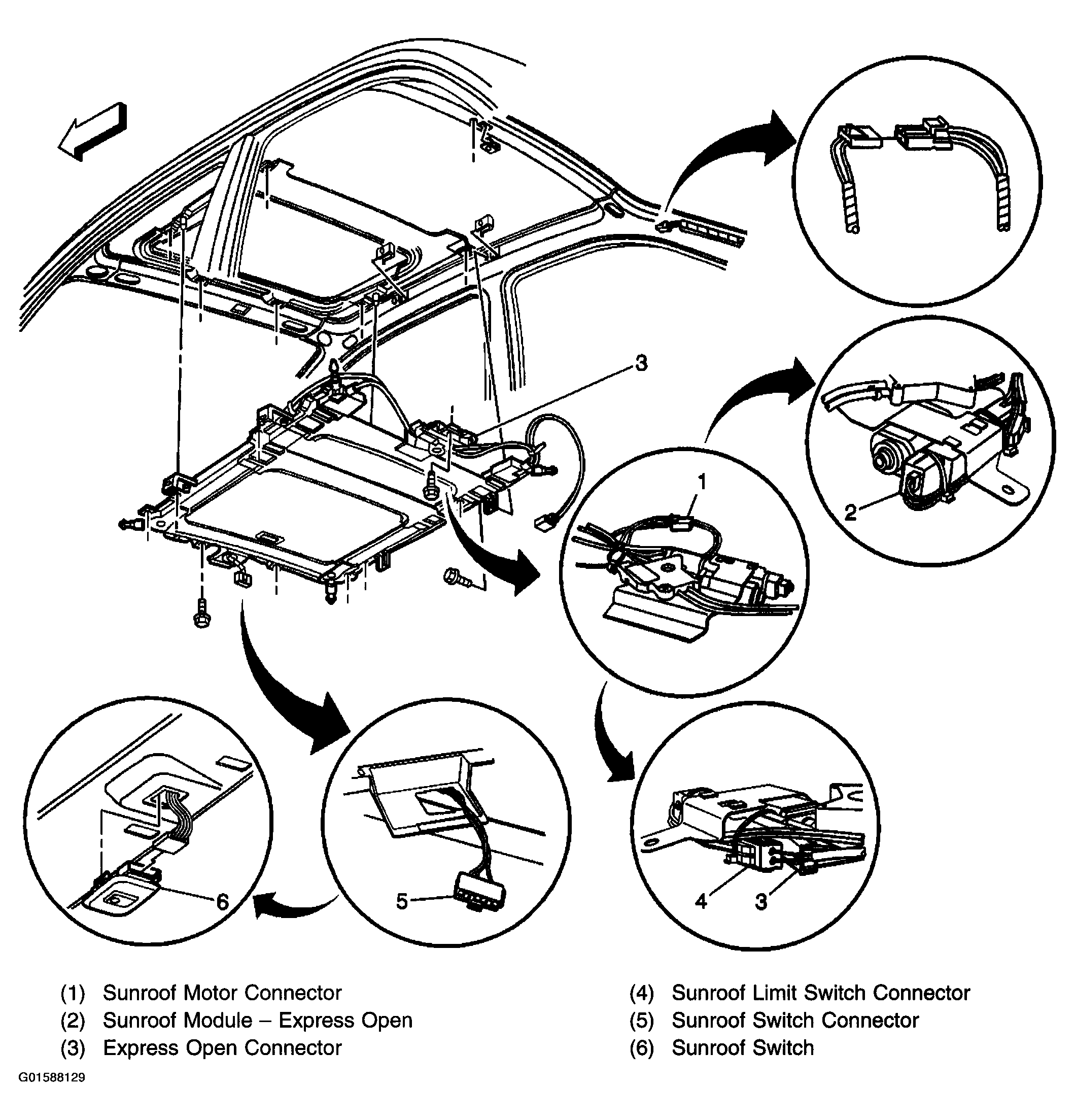

Fig 1: Sunroof (CF5) Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
