Installation Procedure

  1. Connect the door lock electrical connector to the inside door handle bezel.
  2. Press the bezel onto the door trim panel.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

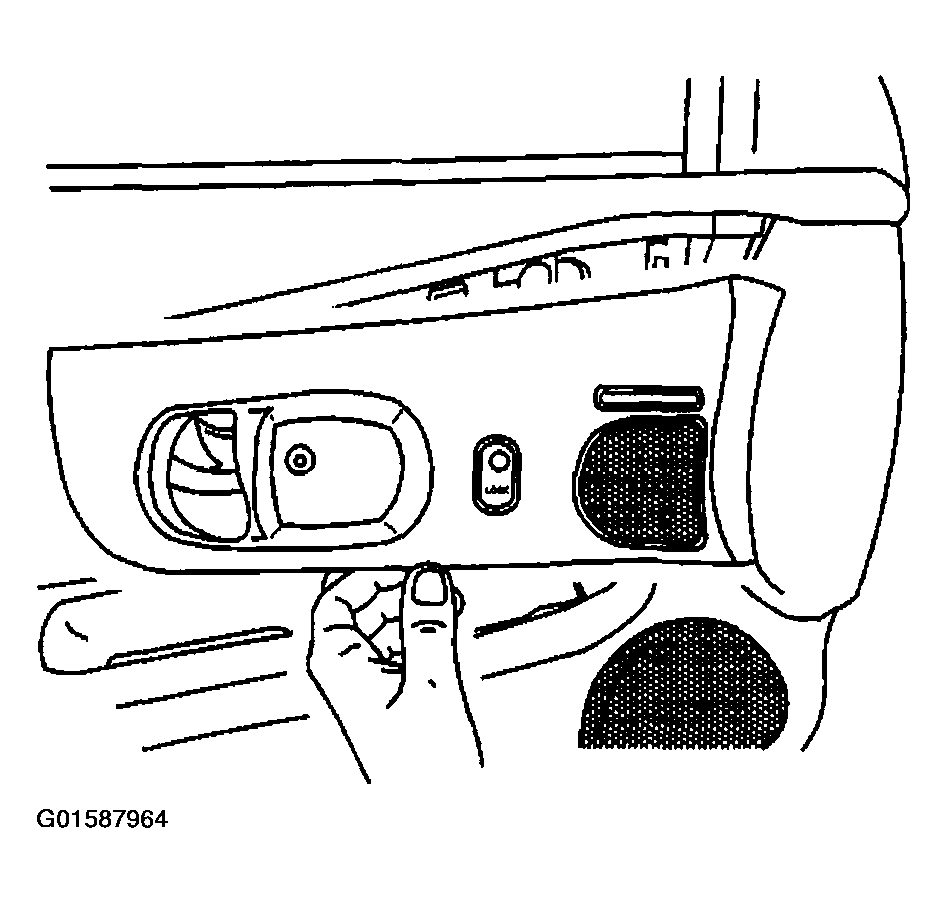

    3. Fig 1: Installing Bezel Inside Door Handle
    G01587964Courtesy of GENERAL MOTORS CORP.
  3. Install the bezel screw to the inside door handle.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).
