Removal Procedure

  1. Open the door.
  2. Using J 36604, remove the door hinge spring from the door hinge.
  3. Remove the door hinge spring from the vehicle.

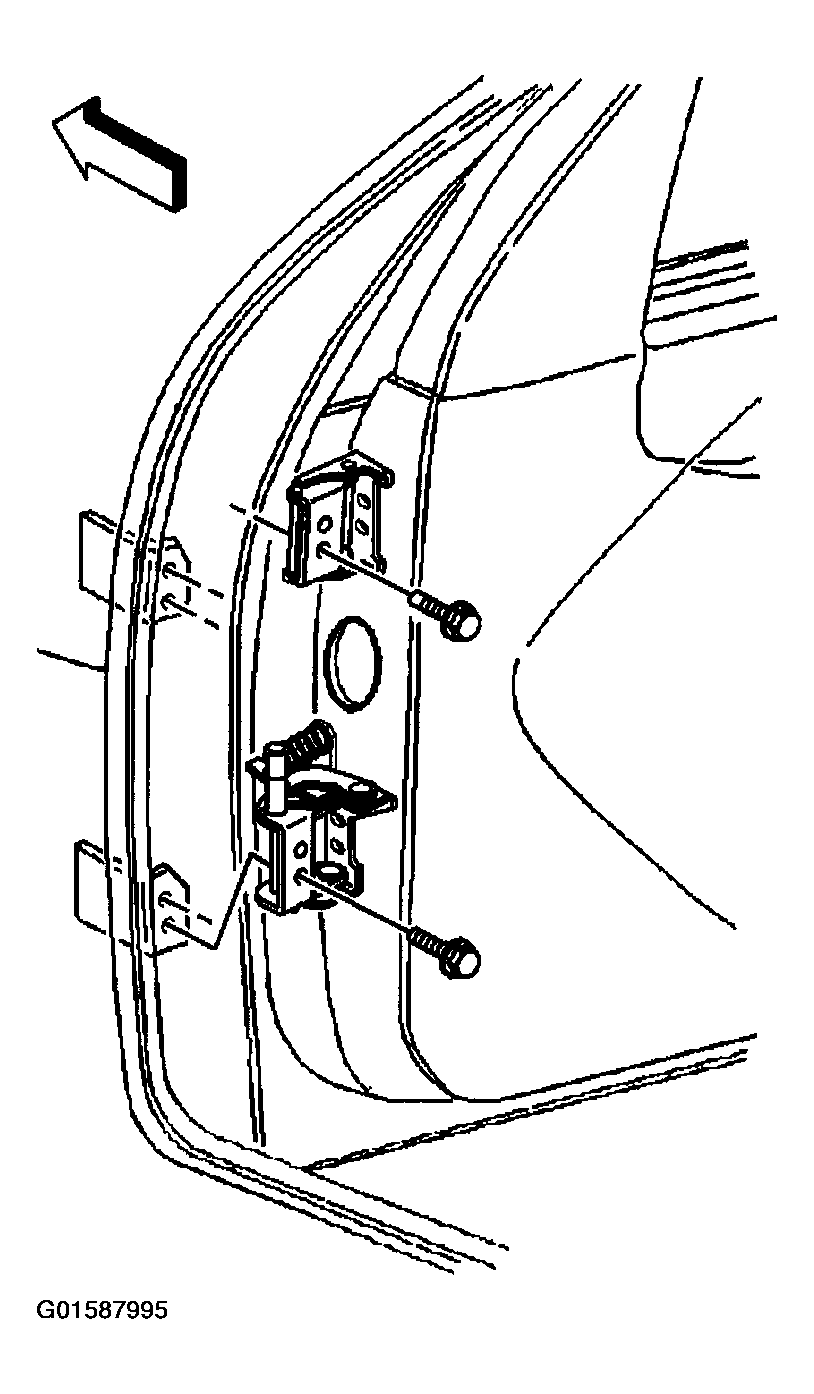

    4. Fig 1: Removing Door Hinge Spring From Vehicle
    G01587995Courtesy of GENERAL MOTORS CORP.
