Removal Procedure

Open the rear door.
Using J 36604, remove the rear door hinge spring from the rear door hinge.
Remove the door hinge spring from the vehicle.

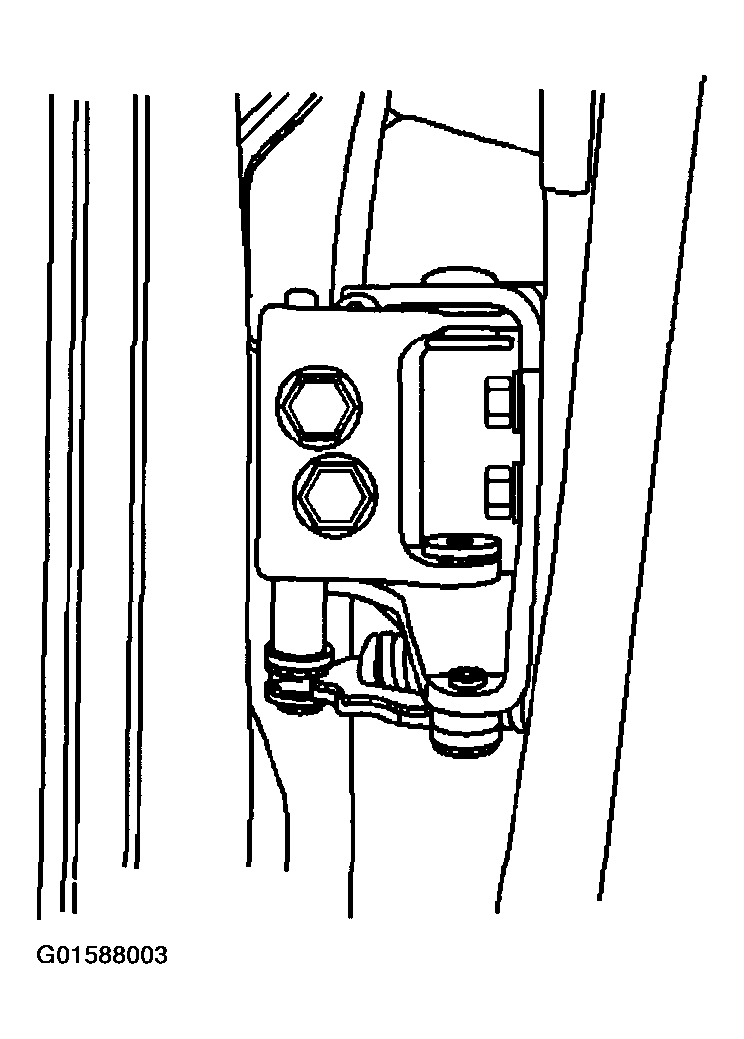

Fig 1: Removing Rear Door Hinge Spring

G01588003

Courtesy of GENERAL MOTORS CORP.
