Removal Procedure

  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Disconnect the mirror remote cable from the front door trim panel.
  3. Remove the mirror reinforcement cover.
  4. Remove the mirror nuts.
  5. Remove the mirror from the front door.

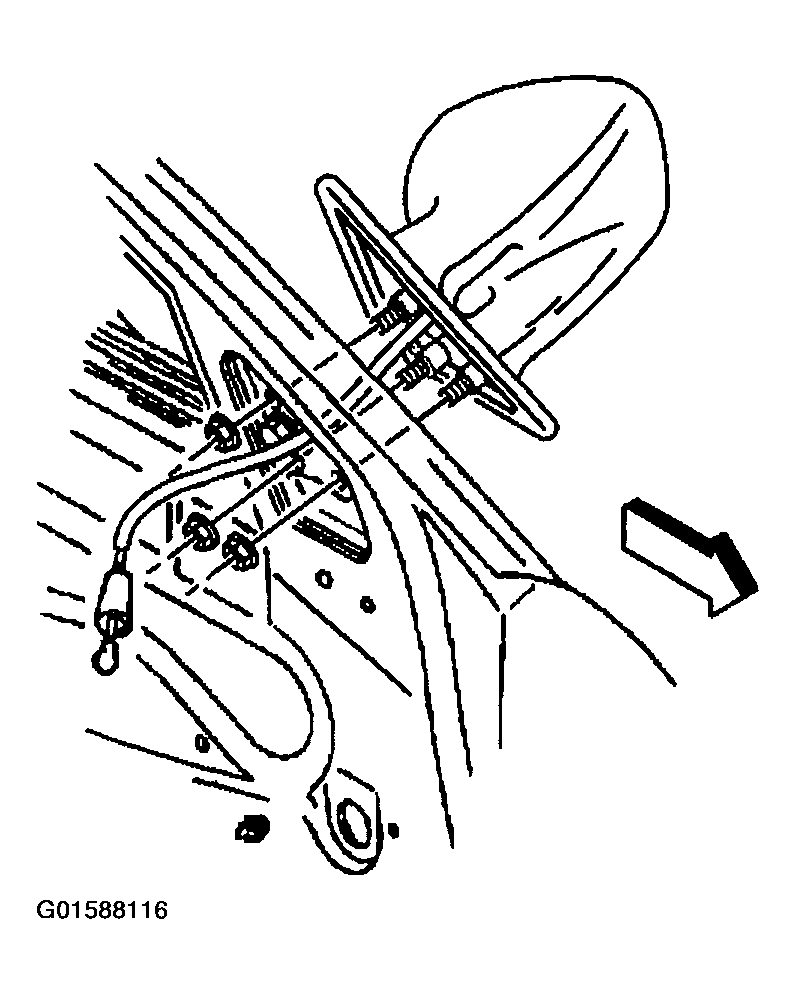

    6. Fig 1: Removing Front Door Remote Mirror
    G01588116Courtesy of GENERAL MOTORS CORP.
