Installation Procedure

  1. Install the switches into the mounting plate.

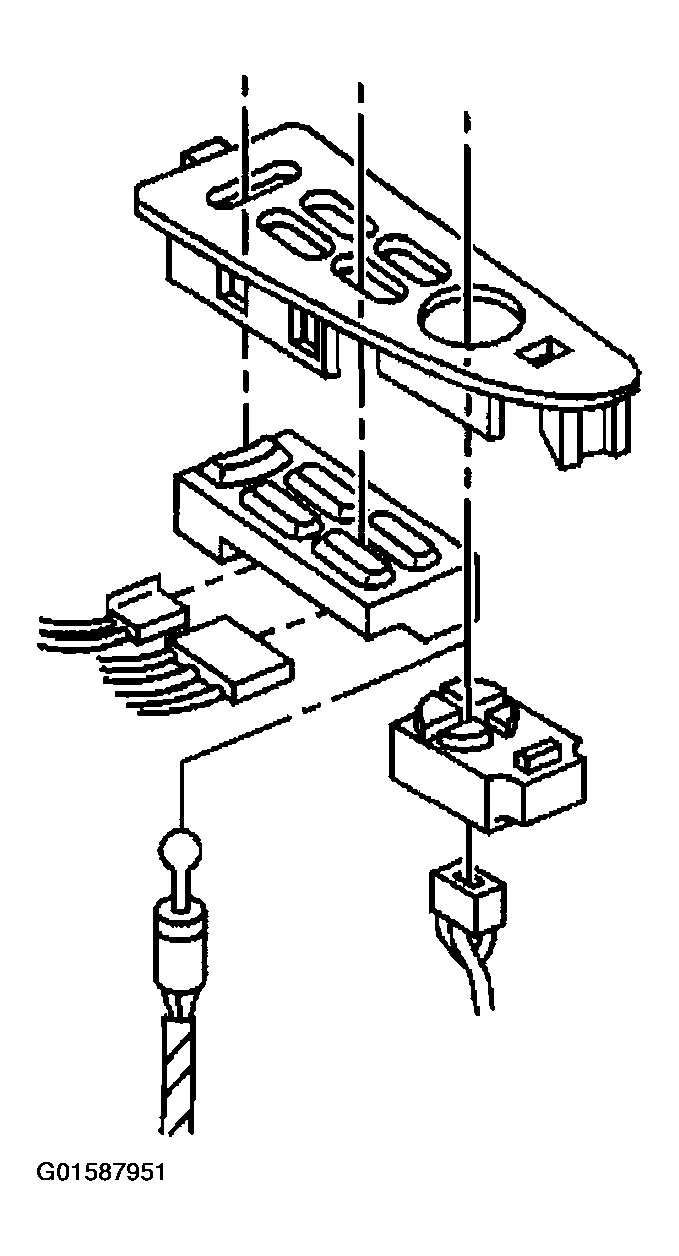

    2. Fig 1: Installing Switches Into Mounting Plate
    G01587951Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors.

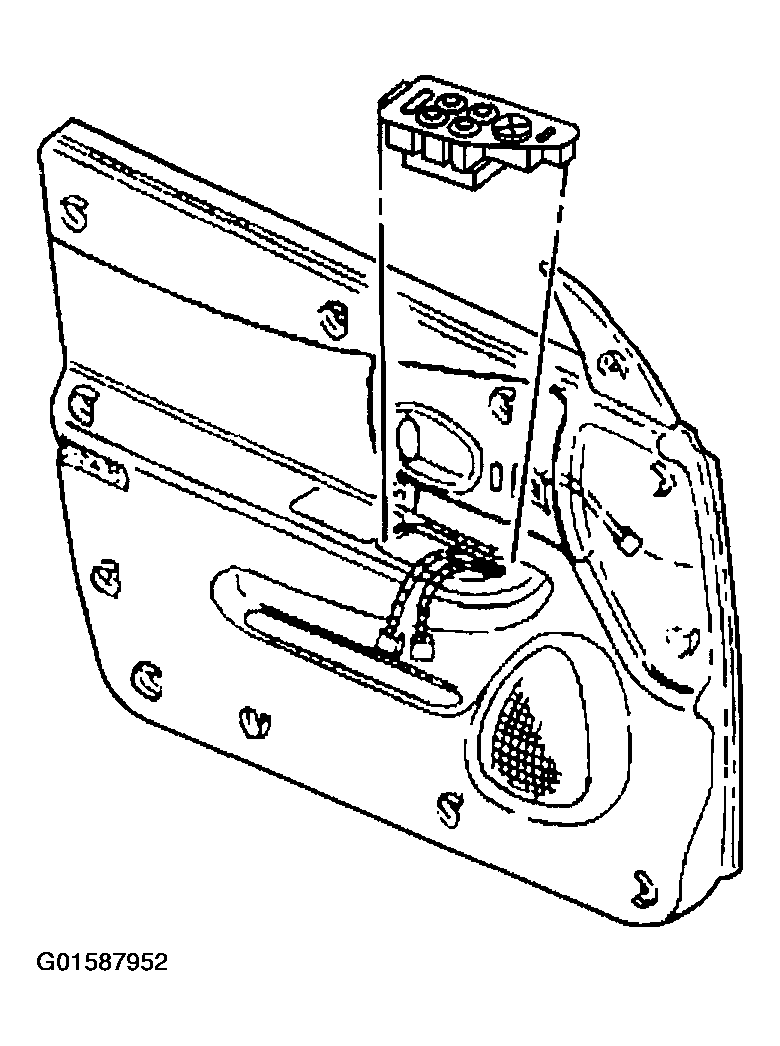

    3. Fig 2: Connecting Electrical Connectors
    G01587952Courtesy of GENERAL MOTORS CORP.
  3. Insert the mounting plate tab into the trim panel and press down on the front end to engage the front retainer.
