Door Lock/Indicator Schematics

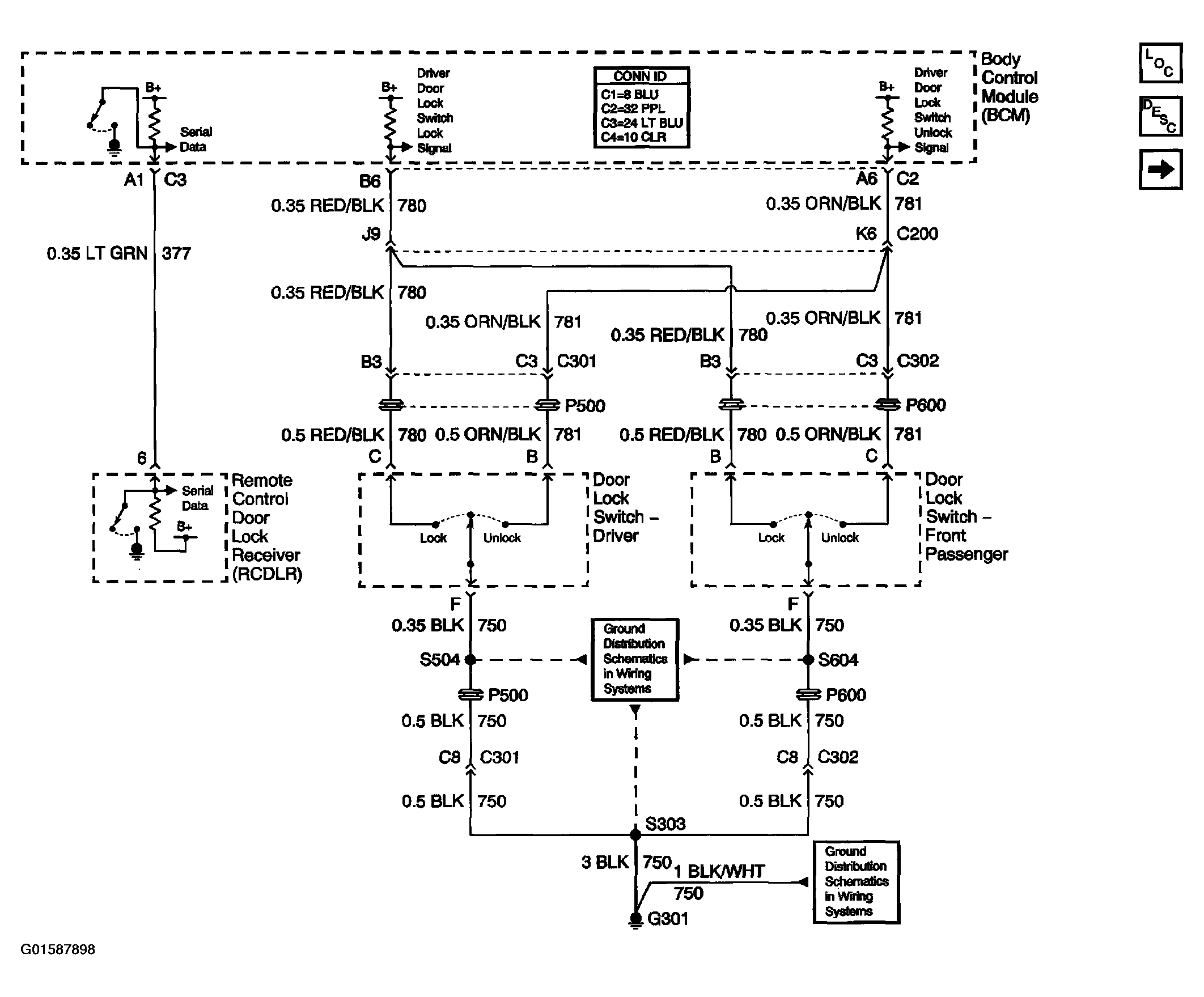

Fig 1: Door Switches Diagram

Courtesy of GENERAL MOTORS CORP.

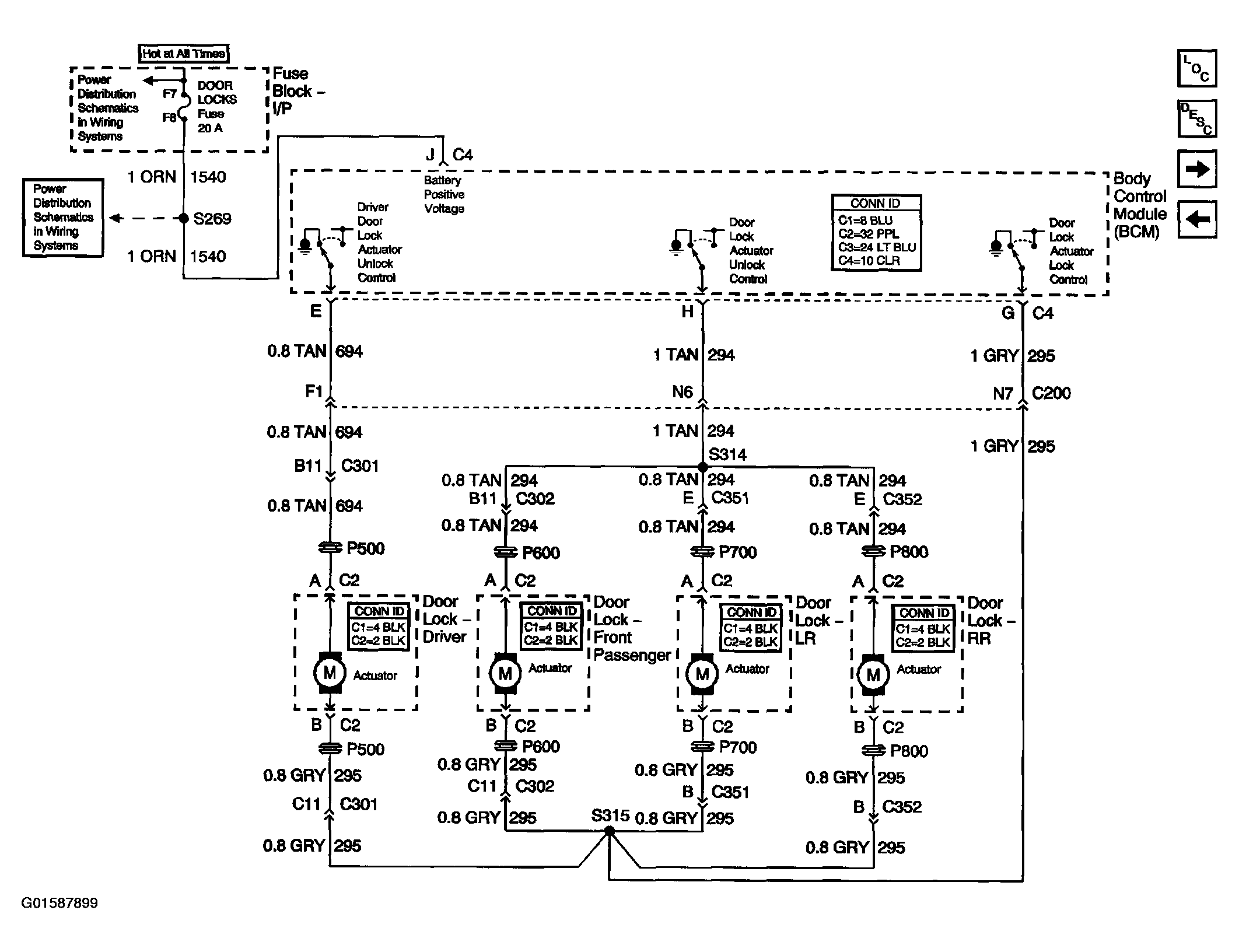

Fig 2: Door Actuators Diagram

Courtesy of GENERAL MOTORS CORP.

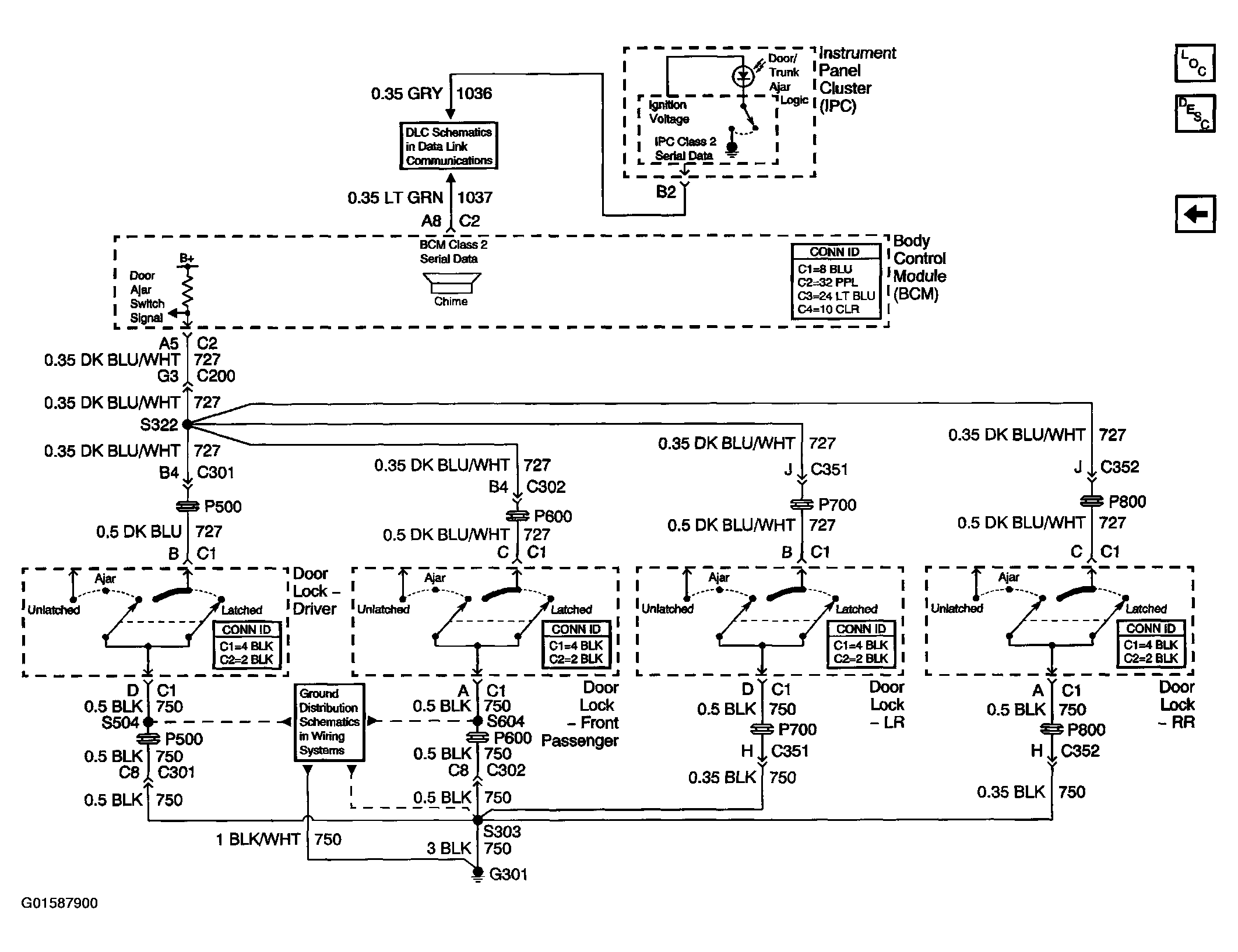

Fig 3: Door Ajar Indicator Diagram

Courtesy of GENERAL MOTORS CORP.
