Removal Procedure

  1. Remove the wire harness cover from the lighted rearview mirror, if equipped.
  2. Use a small flat-bladed tool in order to remove the rearview mirror from the rearview mirror support.

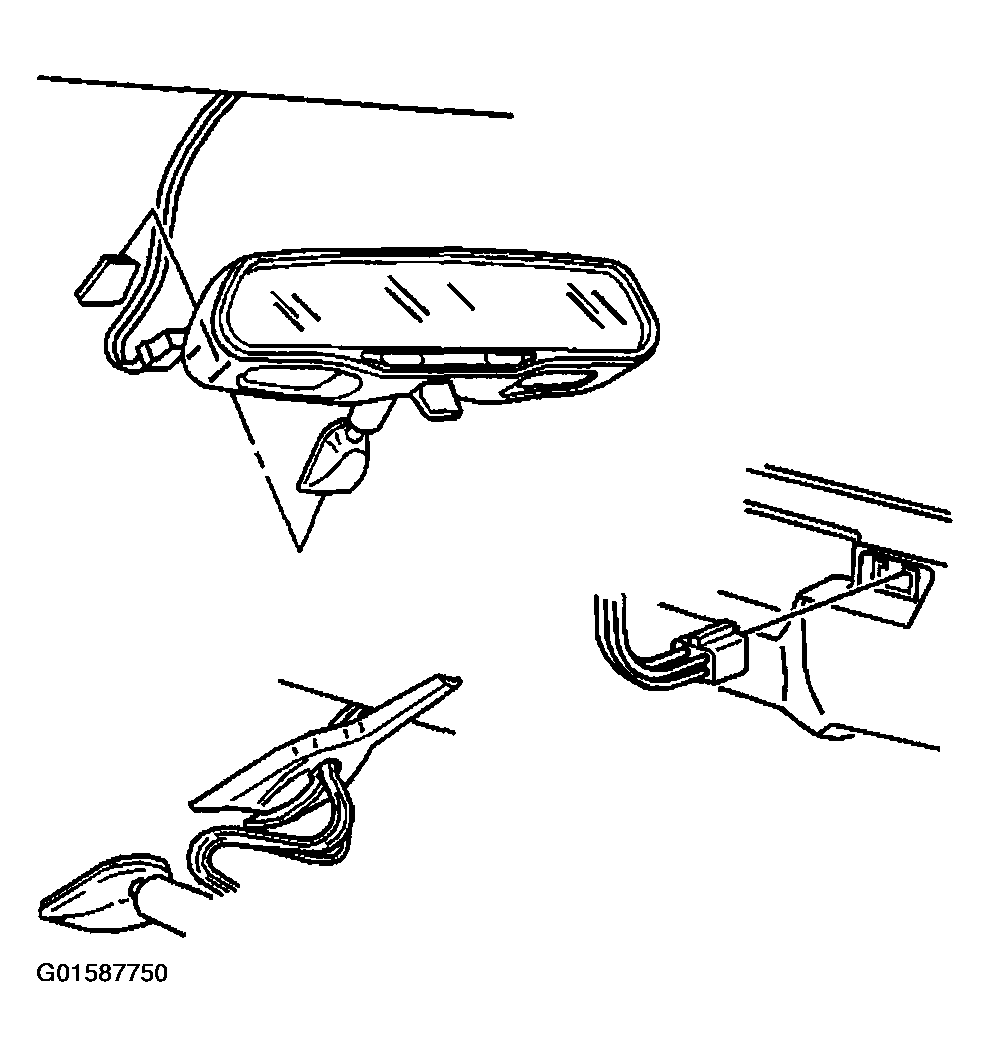

    3. Fig 1: Removing Rearview Mirror From Rearview Mirror Support
    G01587750Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the lighted rearview mirror, if equipped.

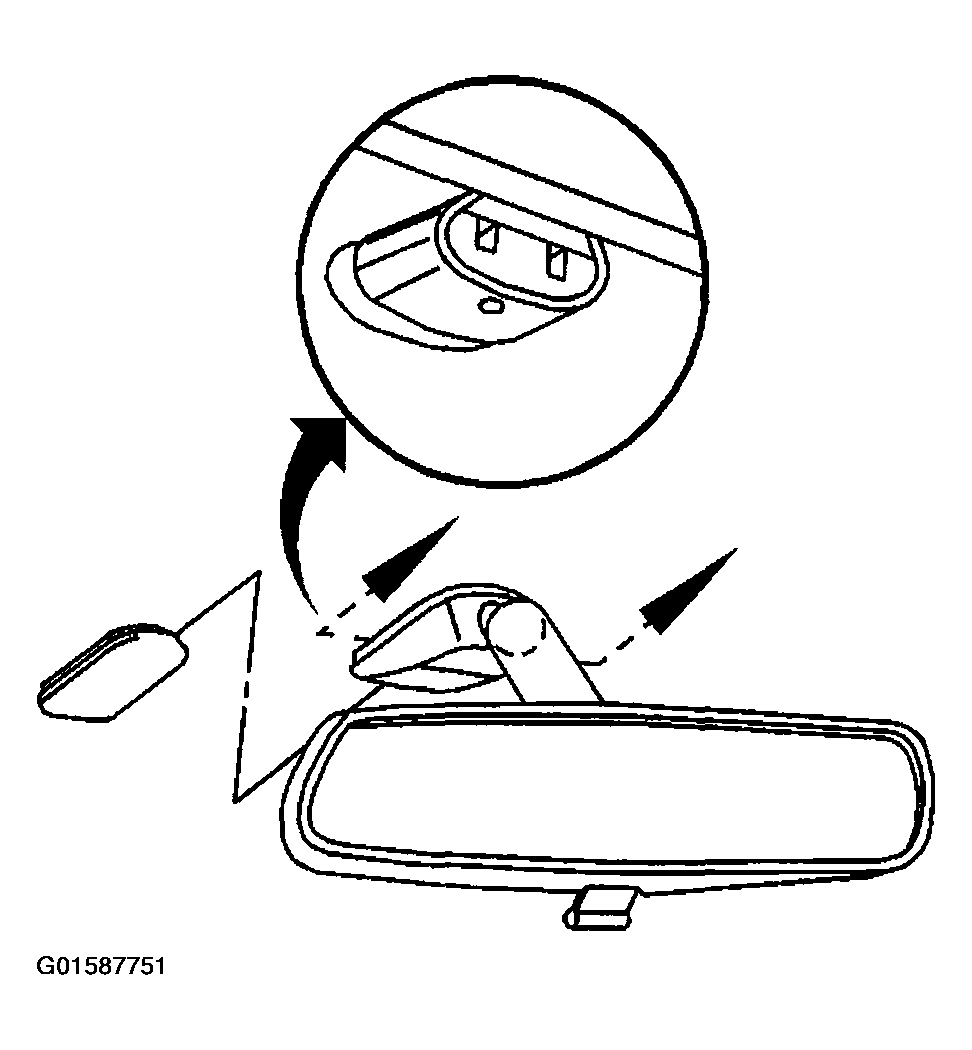

    4. Fig 2: Disconnecting Electrical Connector
    G01587751Courtesy of GENERAL MOTORS CORP.
