ABS Component Views

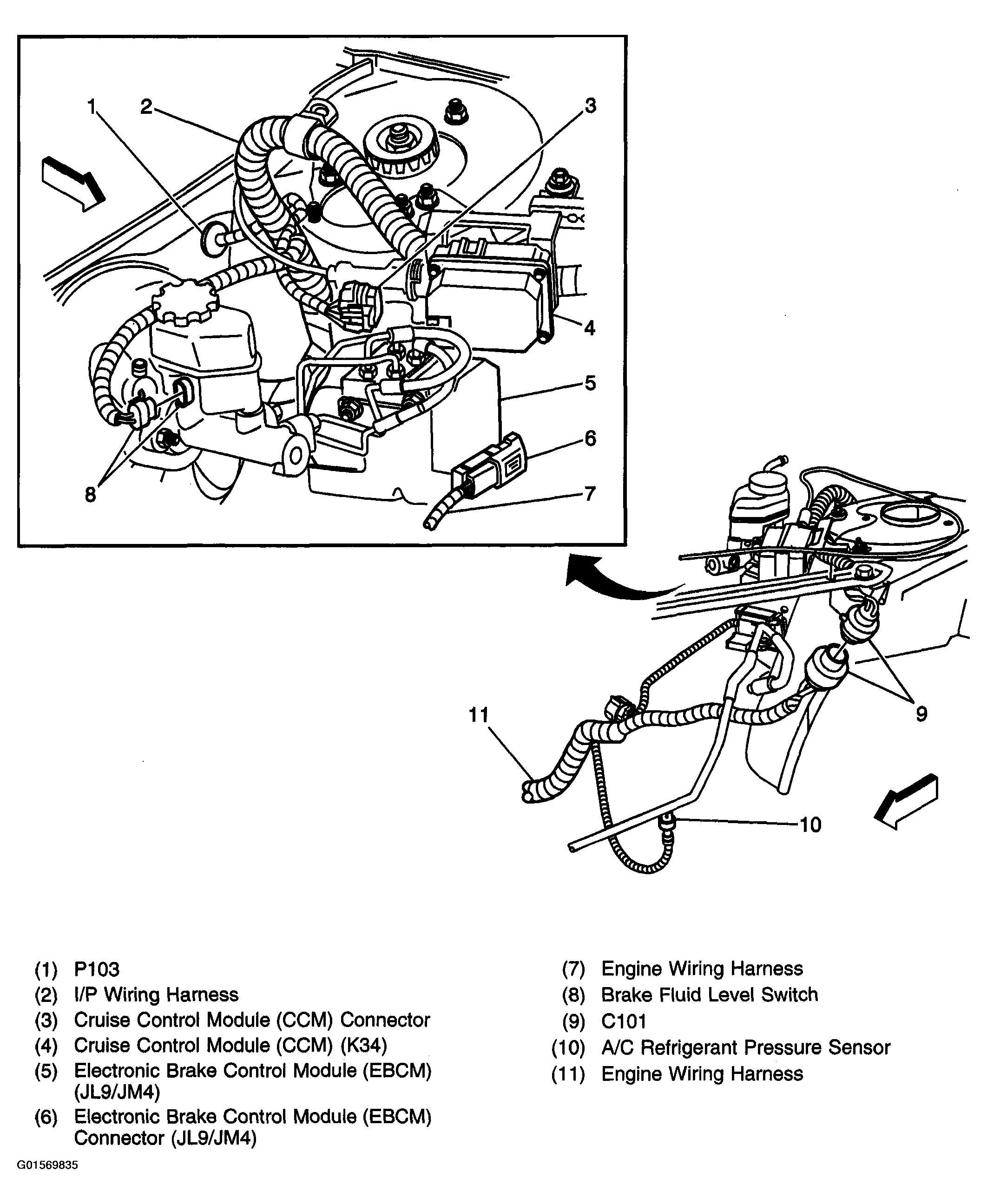

Fig 1: LR Of Engine Compartment Component View
Courtesy of GENERAL MOTORS CORP.

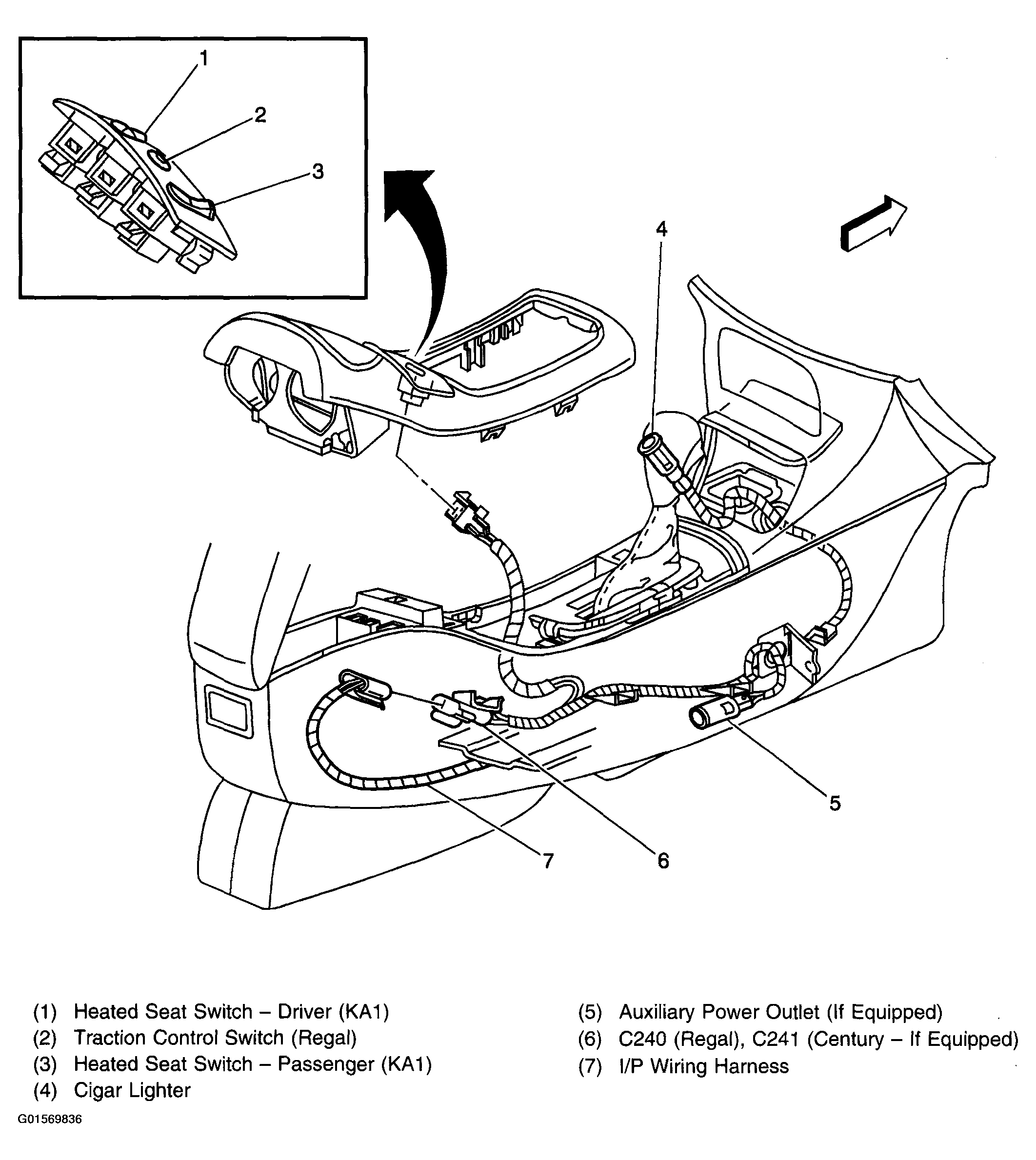

Fig 2: Center Console Component View (D06, D55 - If Equipped)
Courtesy of GENERAL MOTORS CORP.

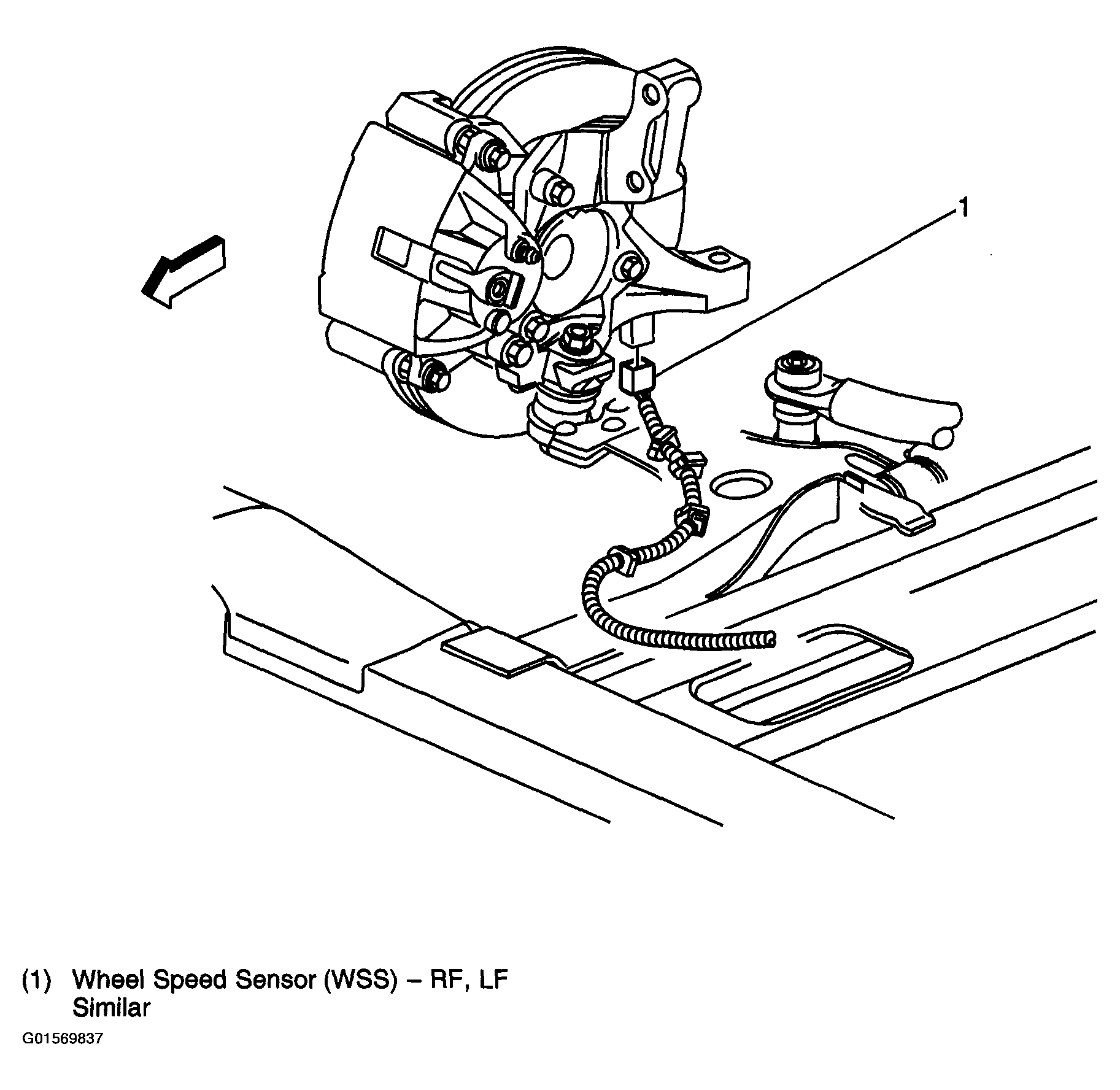

Fig 3: Wheel Speed Sensor Component View - RF, LF Similar
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
