Engine Electrical Component Views

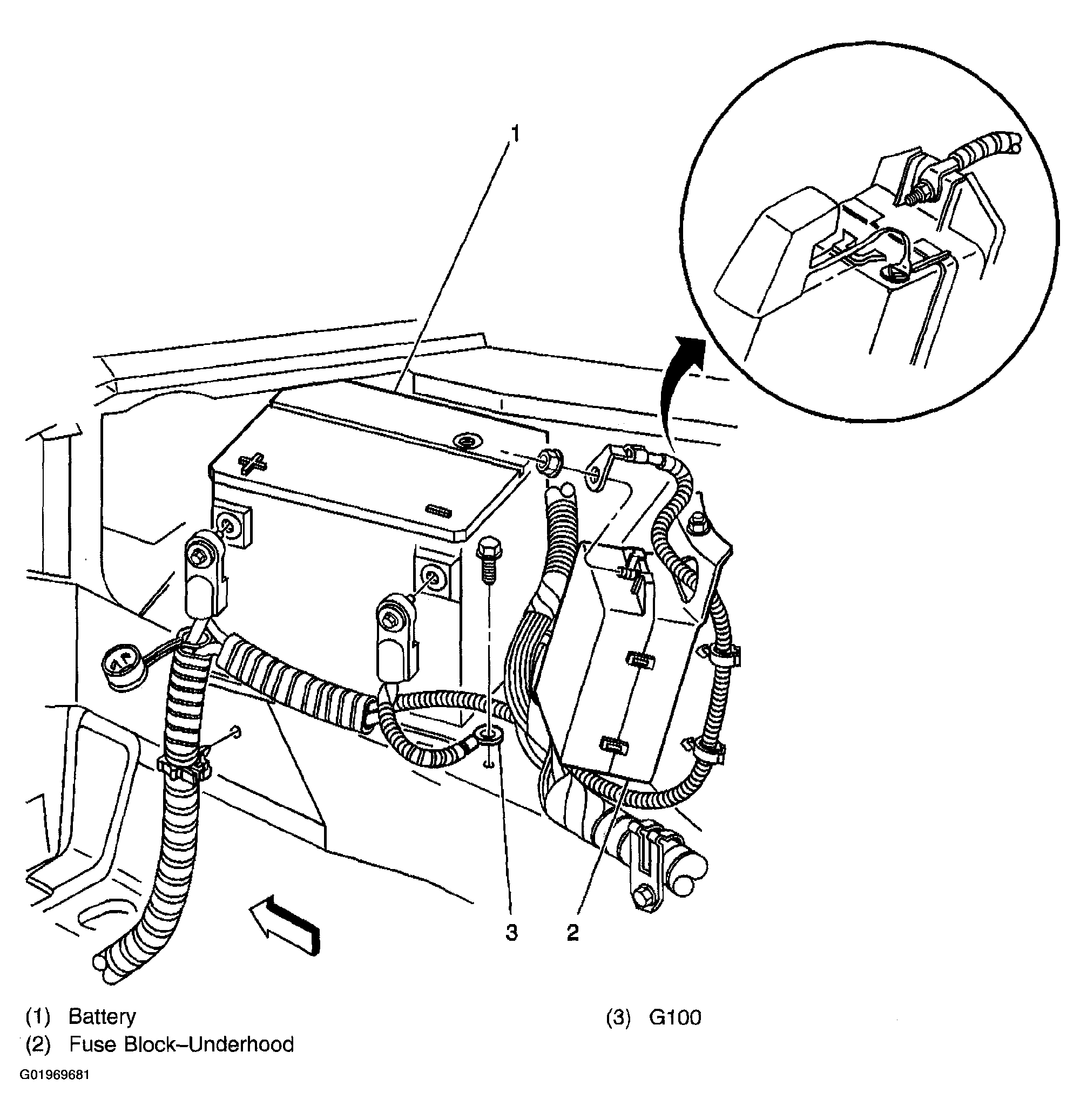

Fig 1: Battery Cable & Grounding Point Component View

Courtesy of GENERAL MOTORS CORP.

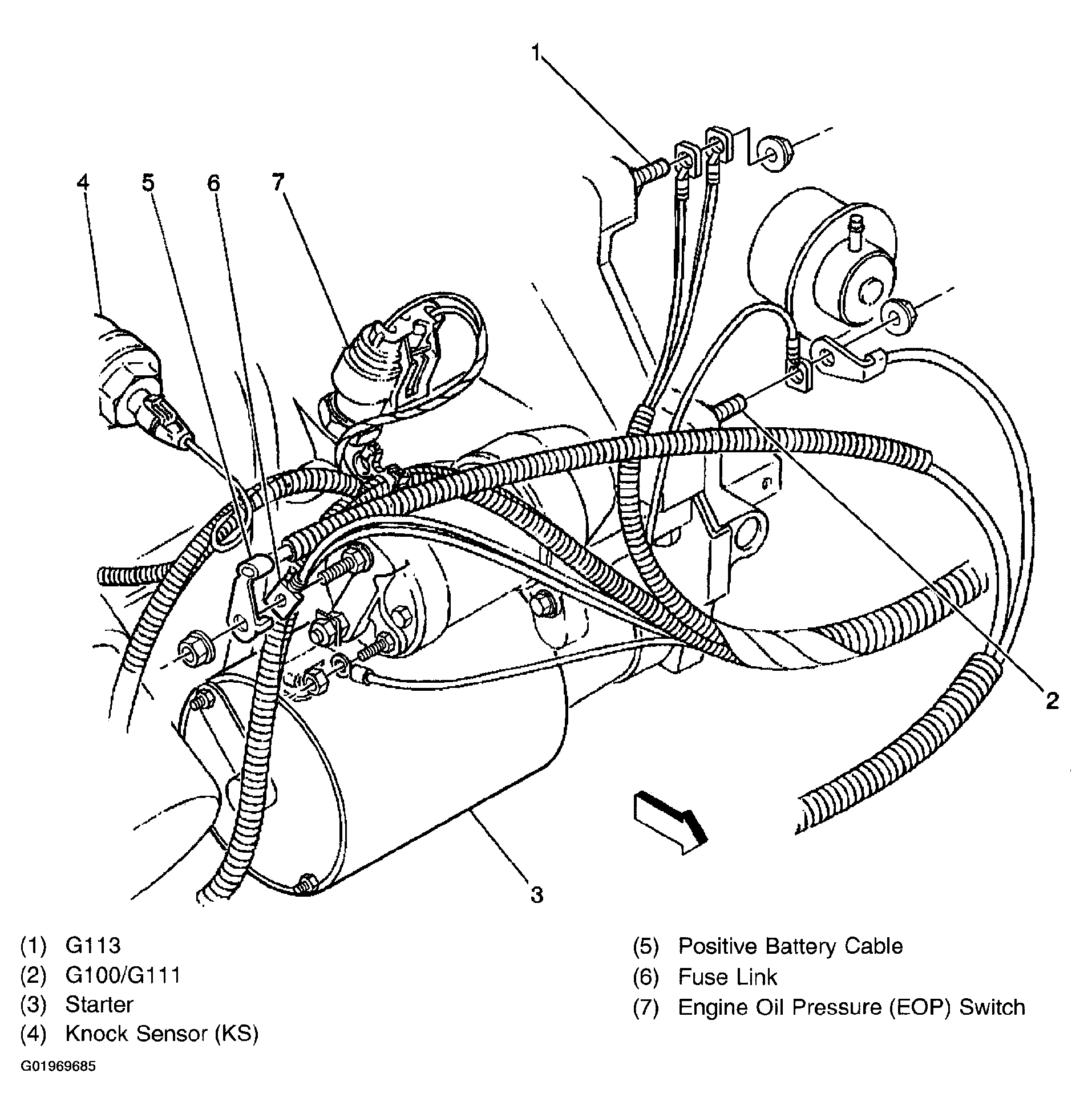

Fig 2: Lower Front Of Engine Component View

Courtesy of GENERAL MOTORS CORP.

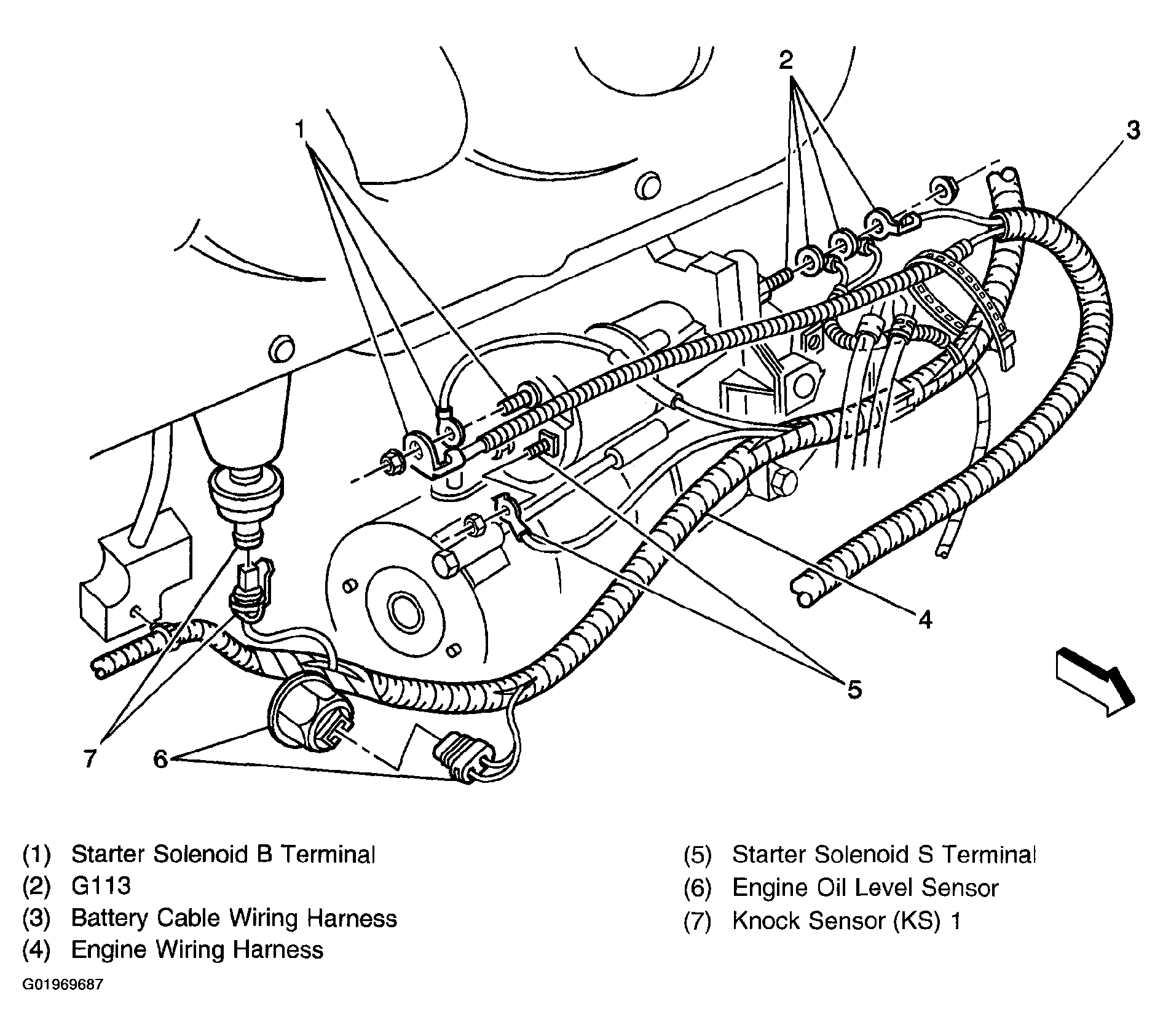

Fig 3: Lower Front Of Engine Component View (L36)

Courtesy of GENERAL MOTORS CORP.

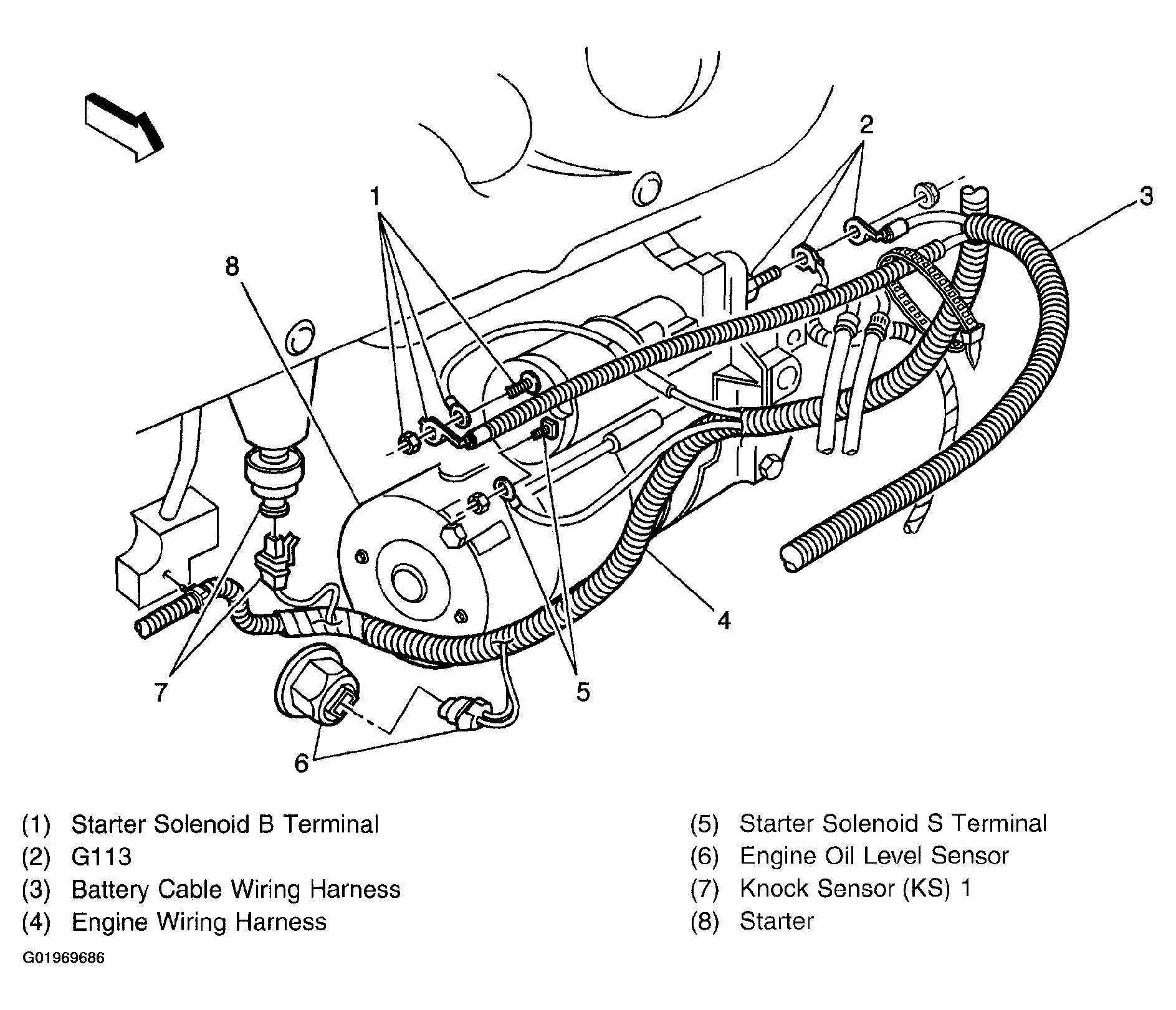

Fig 4: Lower Front Of Engine Component View (L67)

Courtesy of GENERAL MOTORS CORP.
