A/T Shift Lock Control Switch (Regal) Connector End View
A/T Shift Lock Control Switch (Regal) Connector End View

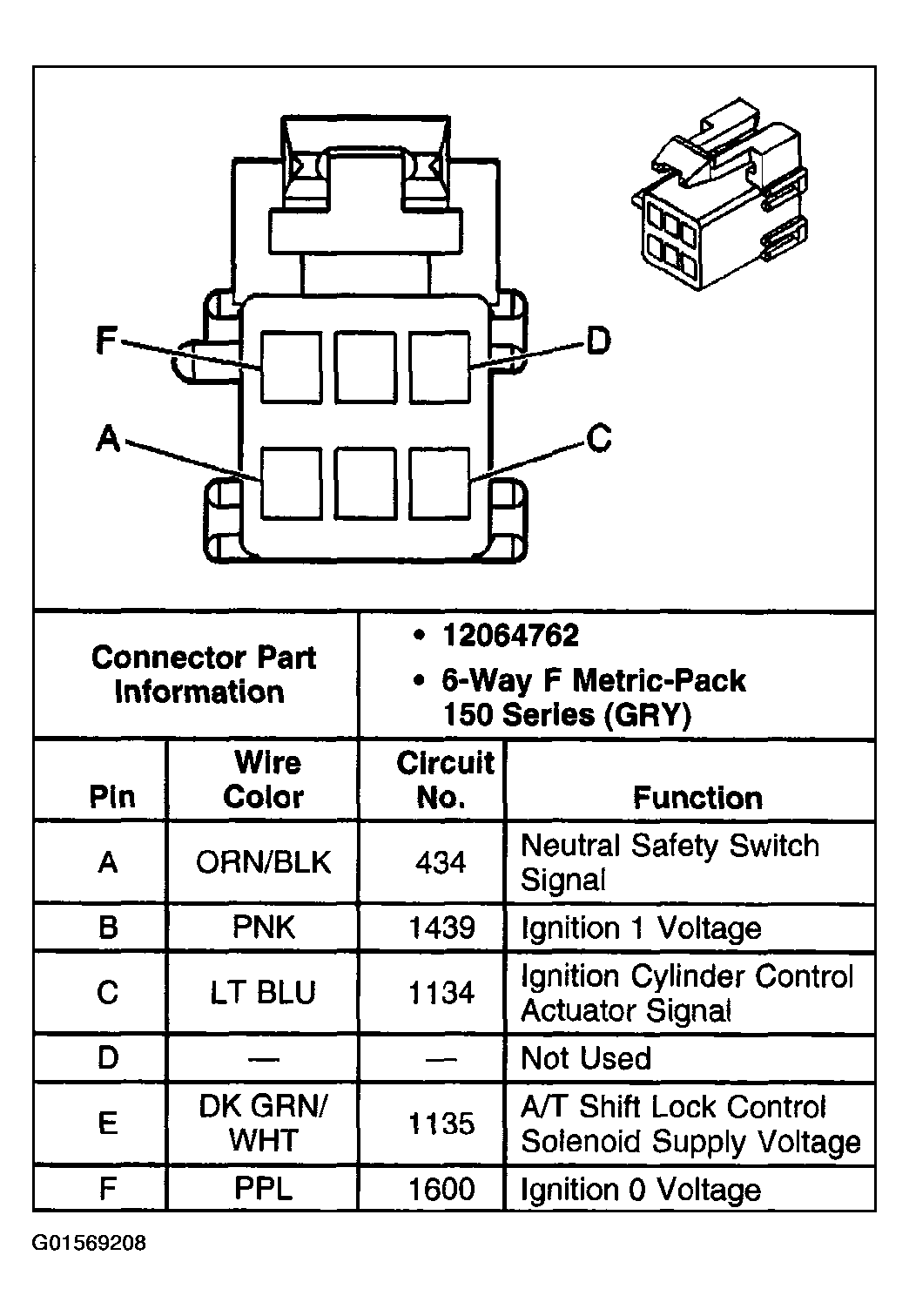

Fig 1: A/T Shift Lock Control Switch (Regal) Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
