Heated Seat Control Module - Driver (KA1) Connector End View
Heated Seat Control Module - Driver (KA1) Connector End View

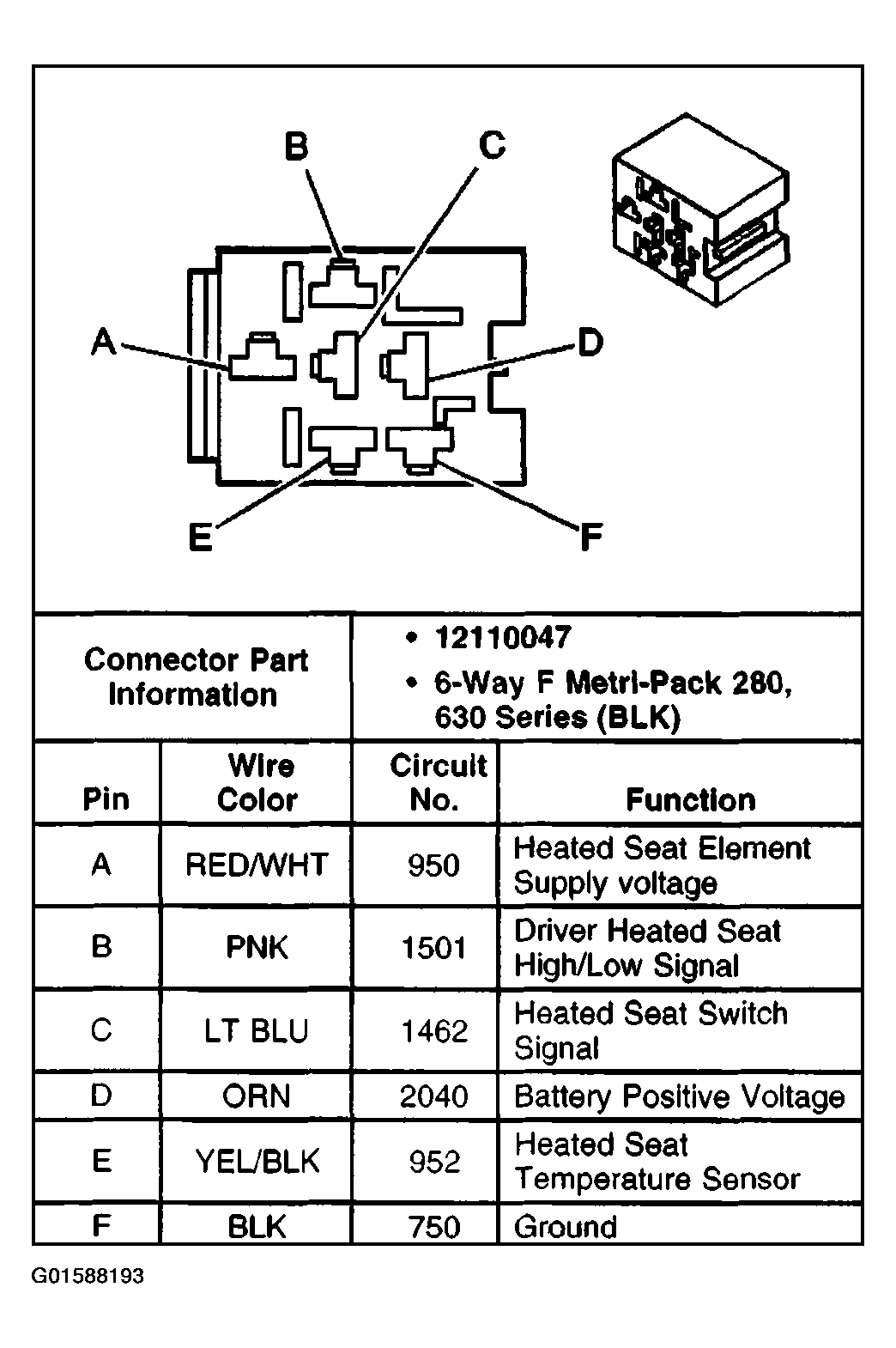

Fig 1: Heated Seat Control Module - Driver (KA1) Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
