Identifying Seat Belt Switch Connector End View - Driver
Identifying Seat Belt Switch Connector End View - Driver

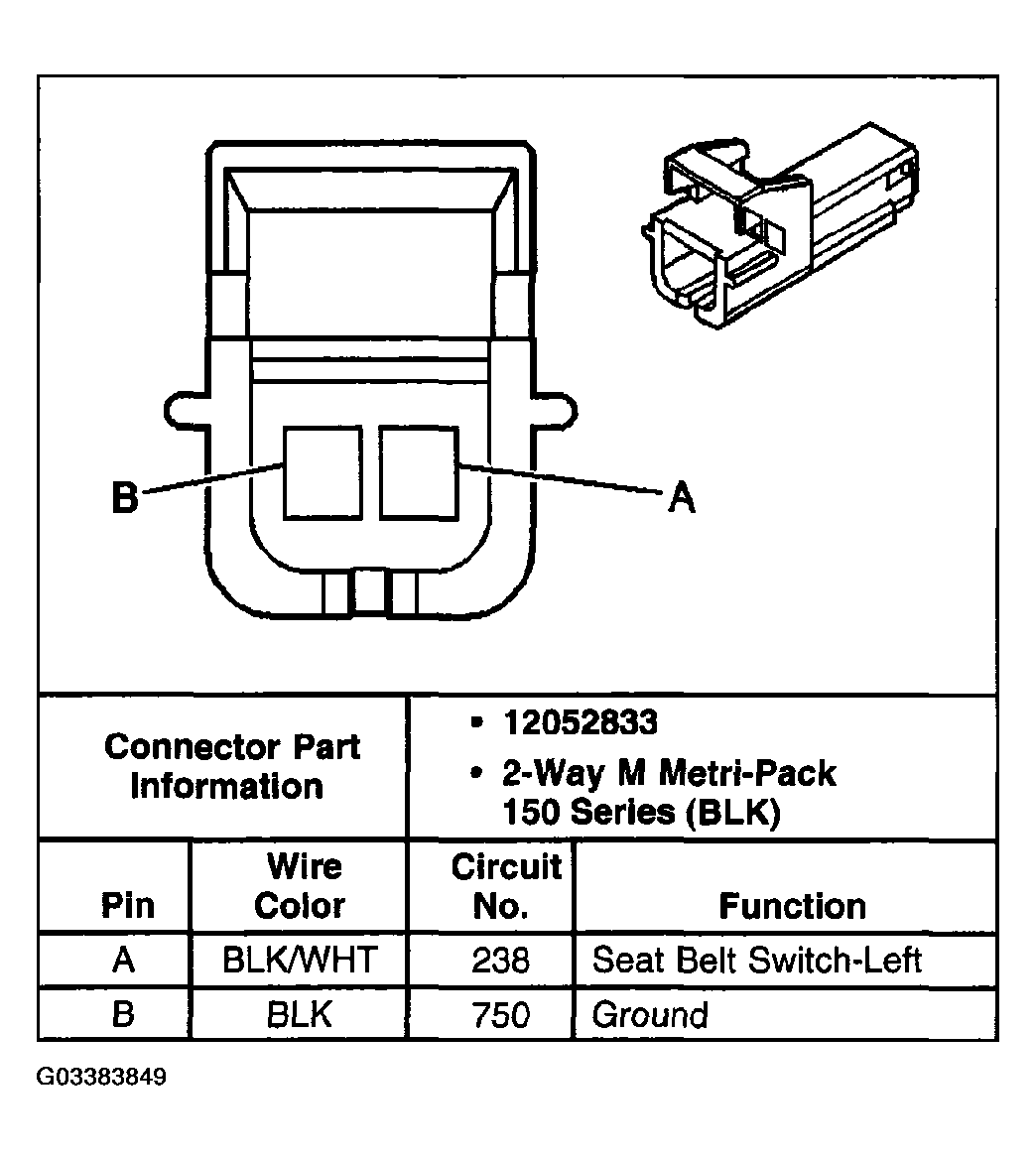

Fig 1: Identifying Seat Belt Switch Connector End View - Driver
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
