Rear Compartment Lid Release Relay Connector End View
Rear Compartment Lid Release Relay Connector End View

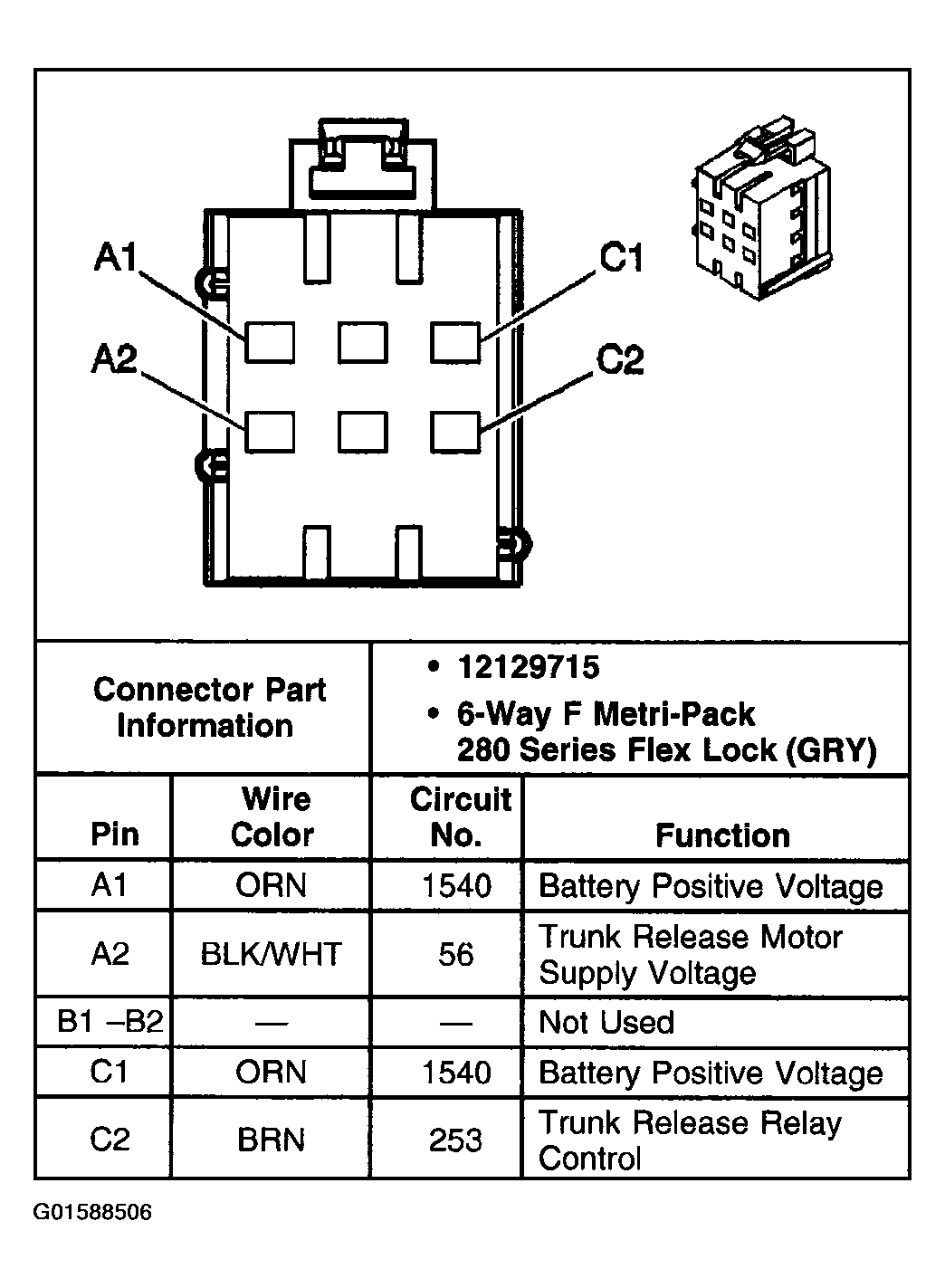

Fig 1: Rear Compartment Lid Release Relay Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
