Windshield Washer Fluid Level Switch Connector End View
Windshield Washer Fluid Level Switch Connector End View

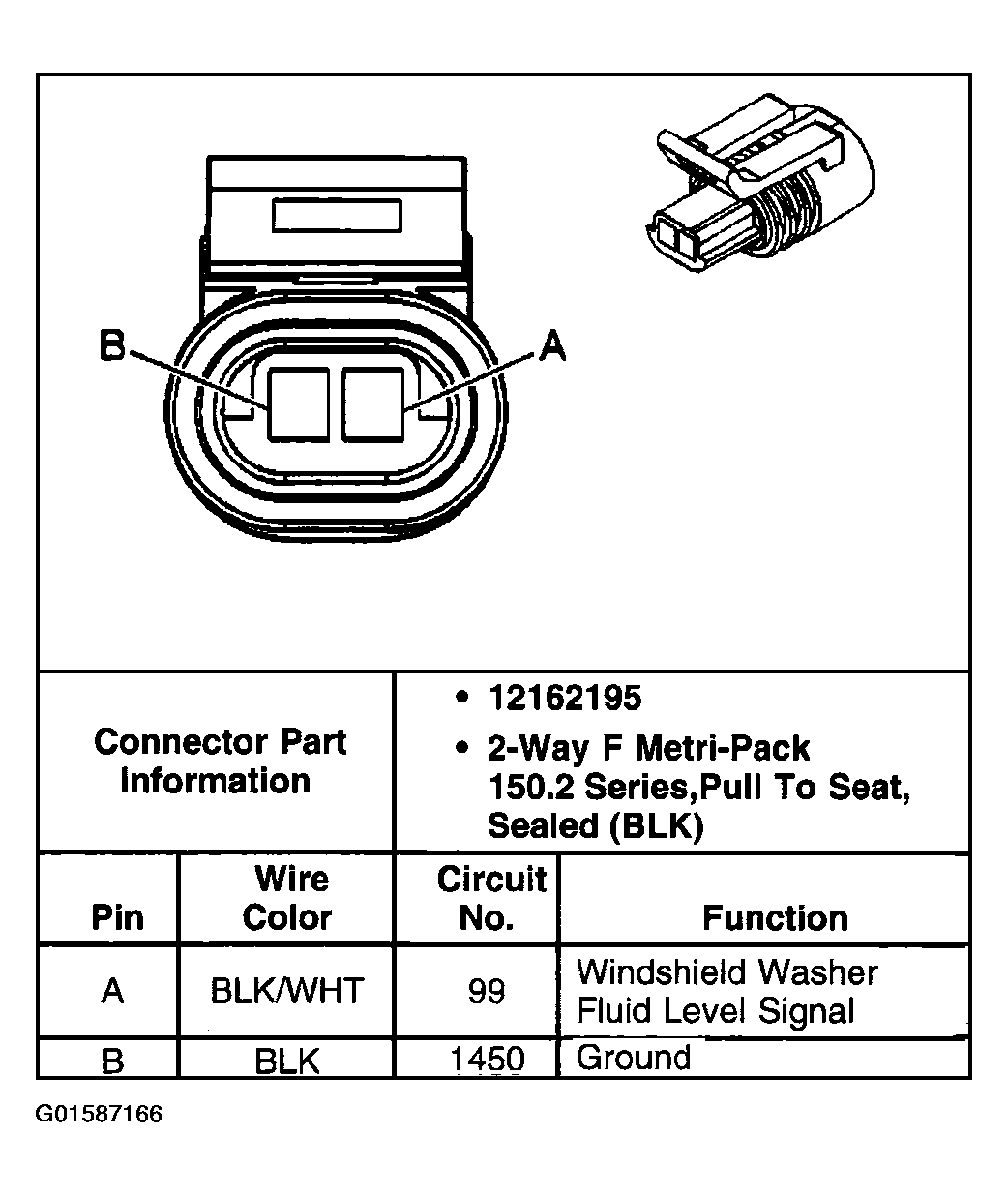

Fig 1: Windshield Washer Fluid Level Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
