A/C Refrigerant Pressure Sensor Connector End View Terminal
A/C Refrigerant Pressure Sensor Connector End View Terminal

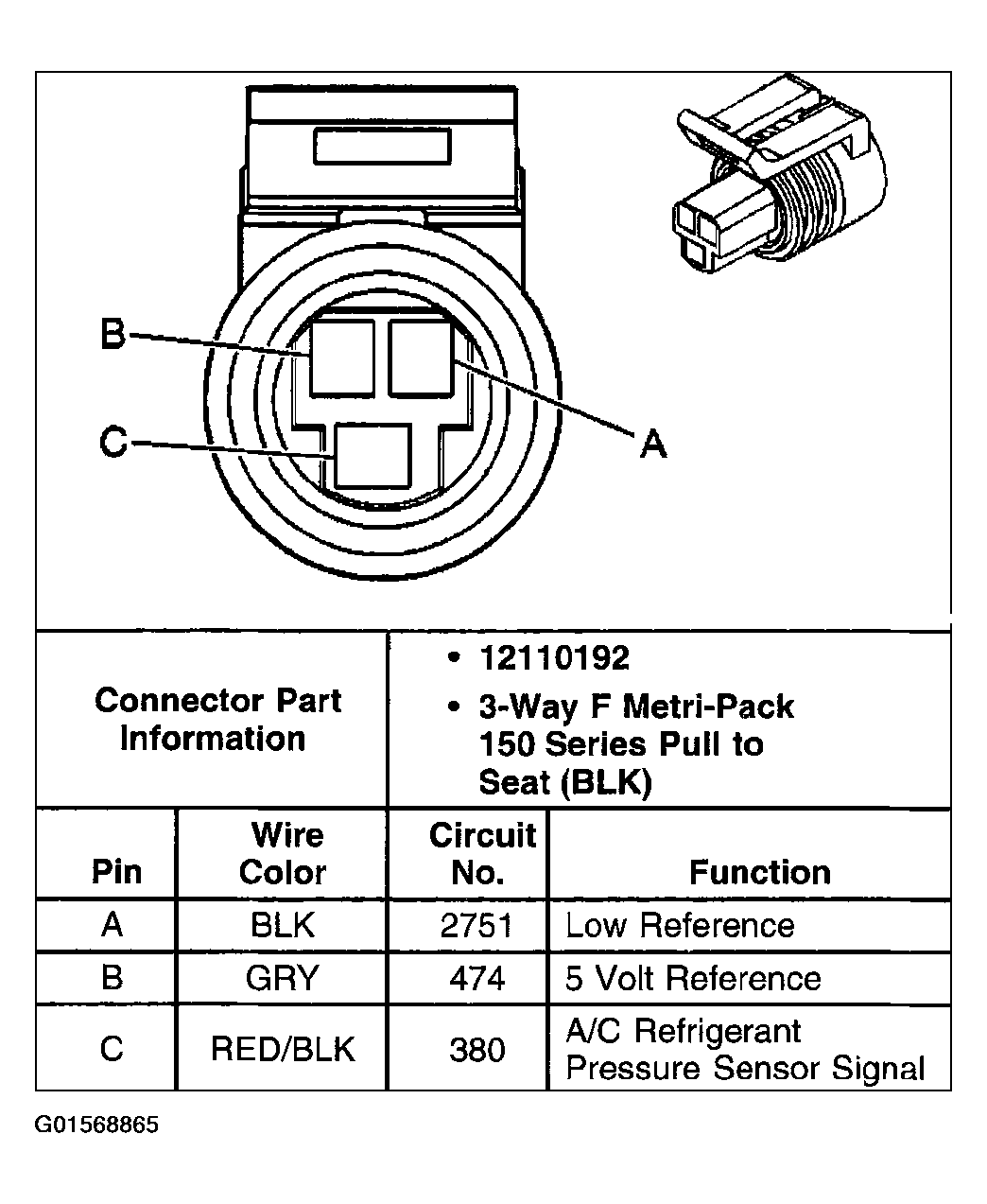

Fig 1: A/C Refrigerant Pressure Sensor Connector End View Terminal
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
