Connector Identification (3.1L)
›
Blower Motor Control Processor Connector End View Terminal
Blower Motor Control Processor Connector End View Terminal

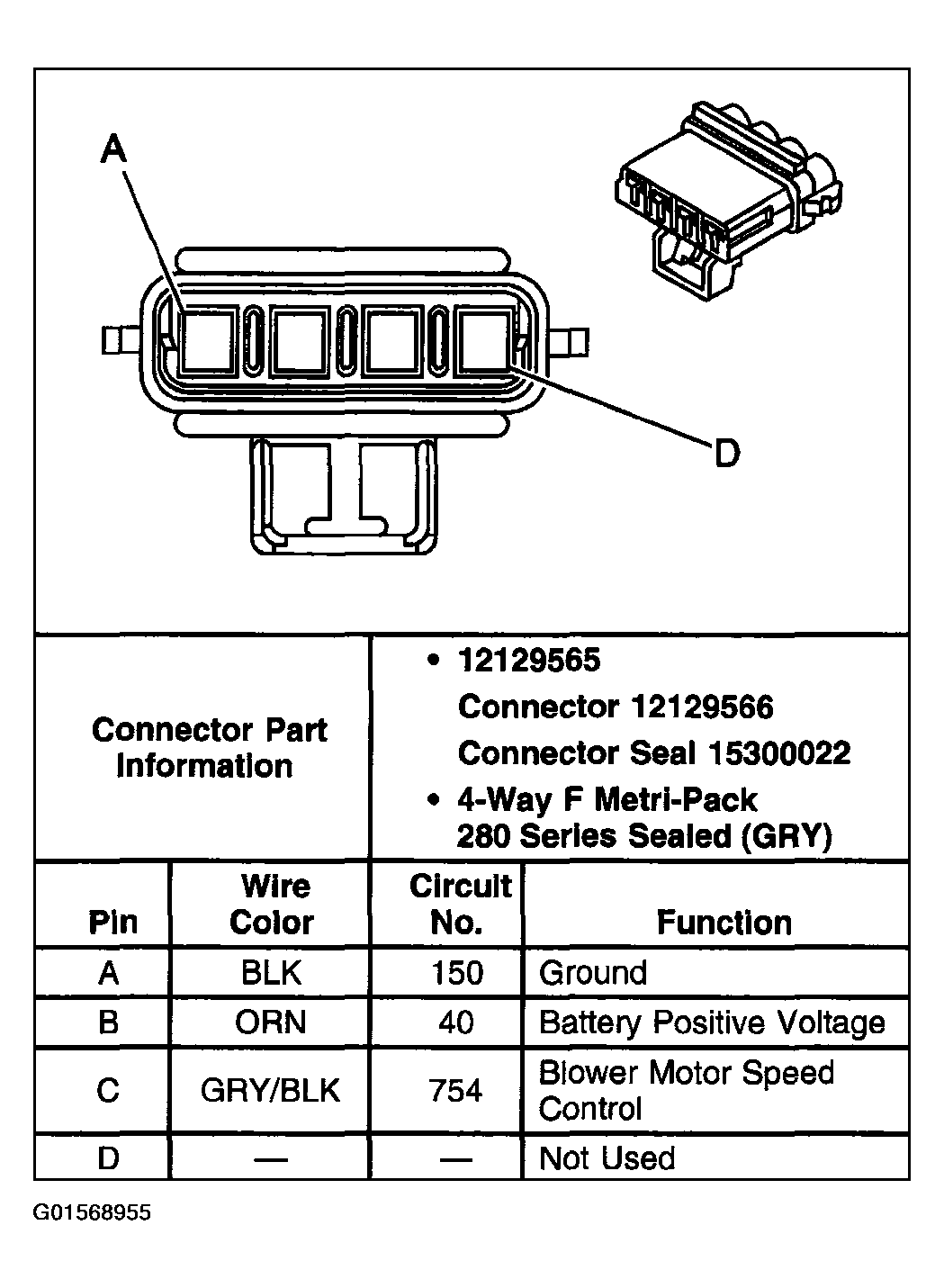

Fig 1: Blower Motor Control Processor Connector End View Terminal
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
