HVAC Control Module Connector End View Terminal (1 Of 2)

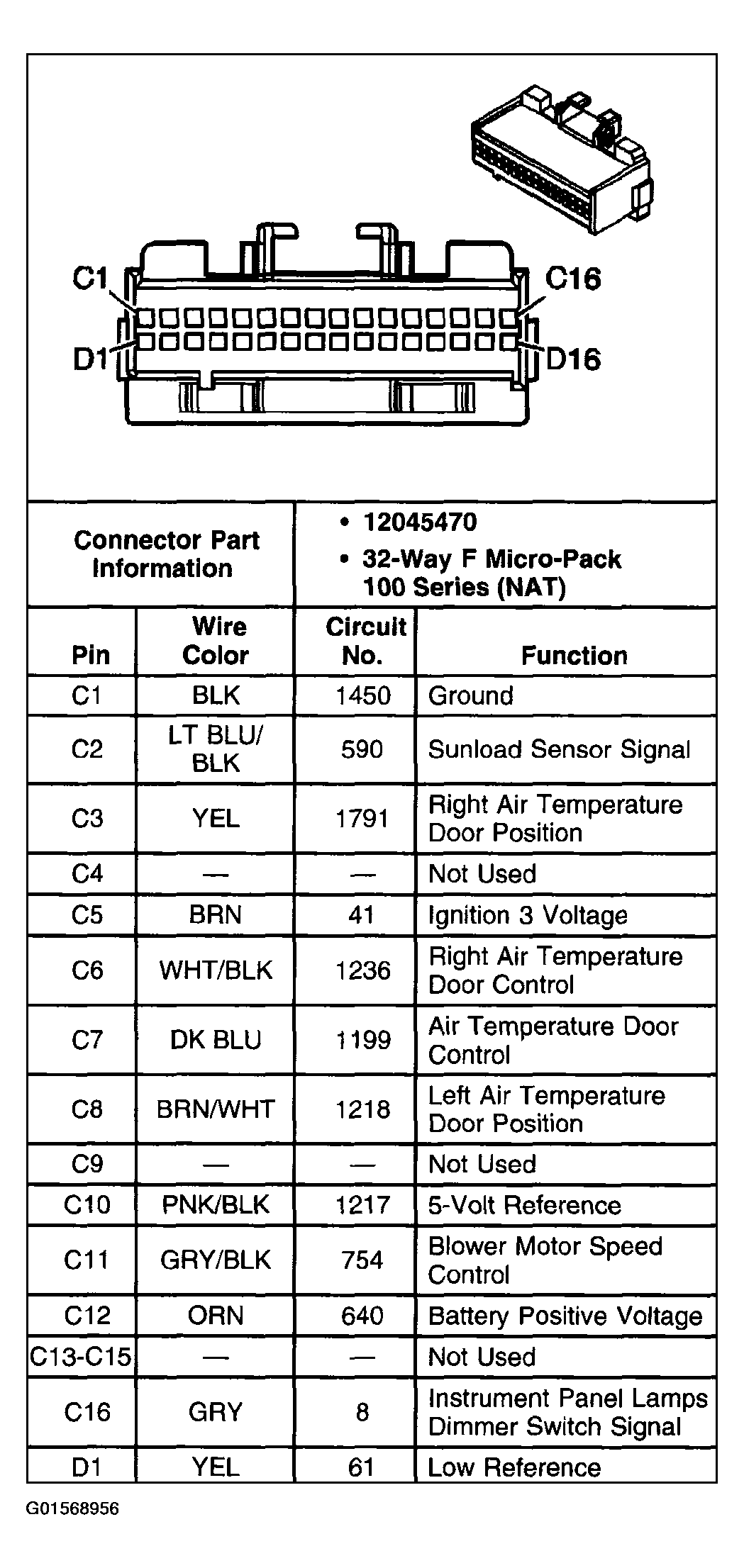

Fig 1: HVAC Control Module Connector End View Terminal (1 Of 2)
G01568956Courtesy of GENERAL MOTORS CORP.
