Vacuum Control Assembly Connector End View Terminal
Vacuum Control Assembly Connector End View Terminal

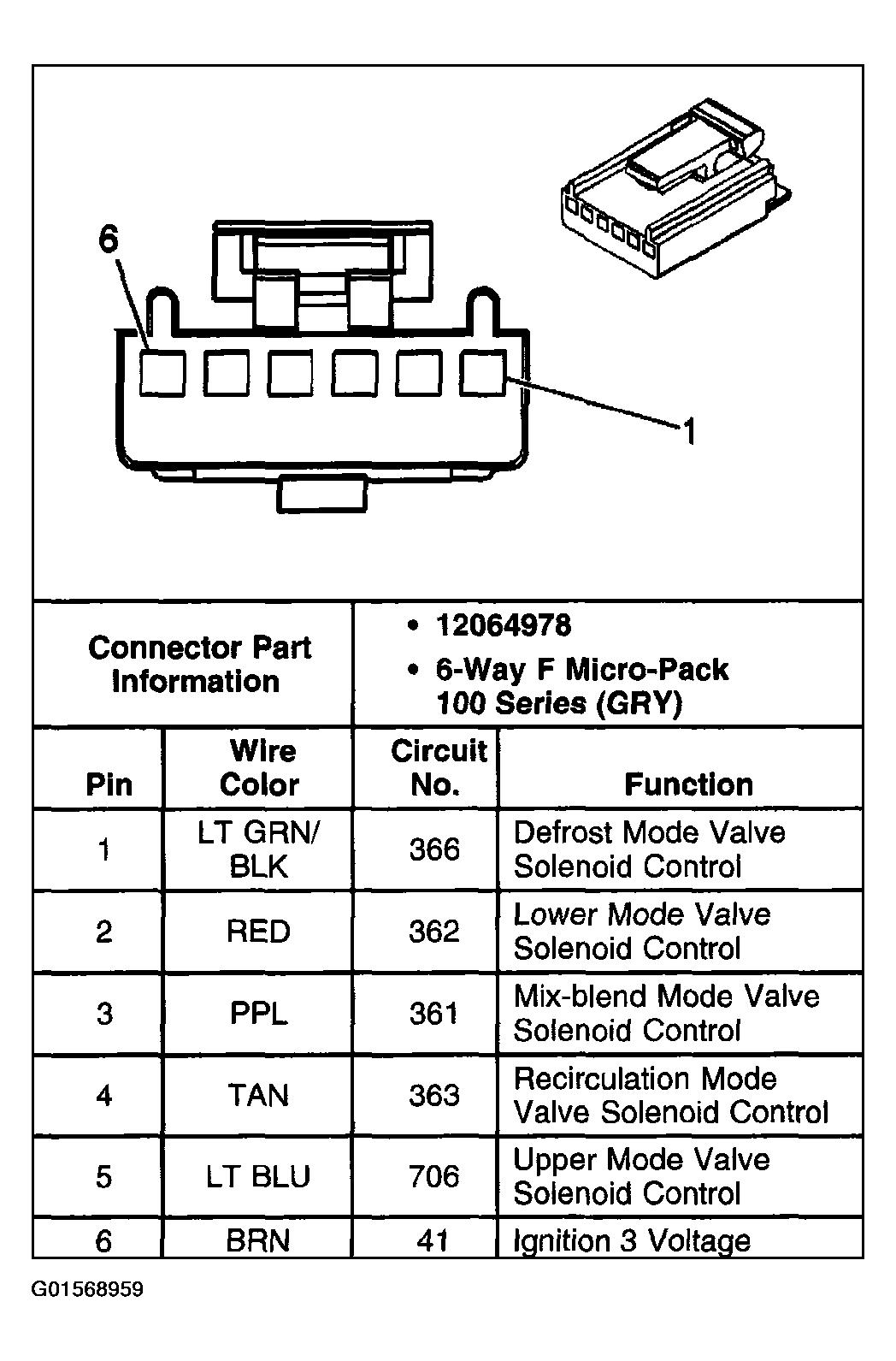

Fig 1: Vacuum Control Assembly Connector End View Terminal
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
