Removal Procedure

  1. Open the hood.
  2. Remove the RH headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT in Lighting Systems.
  3. Disconnect the horn electrical connector.

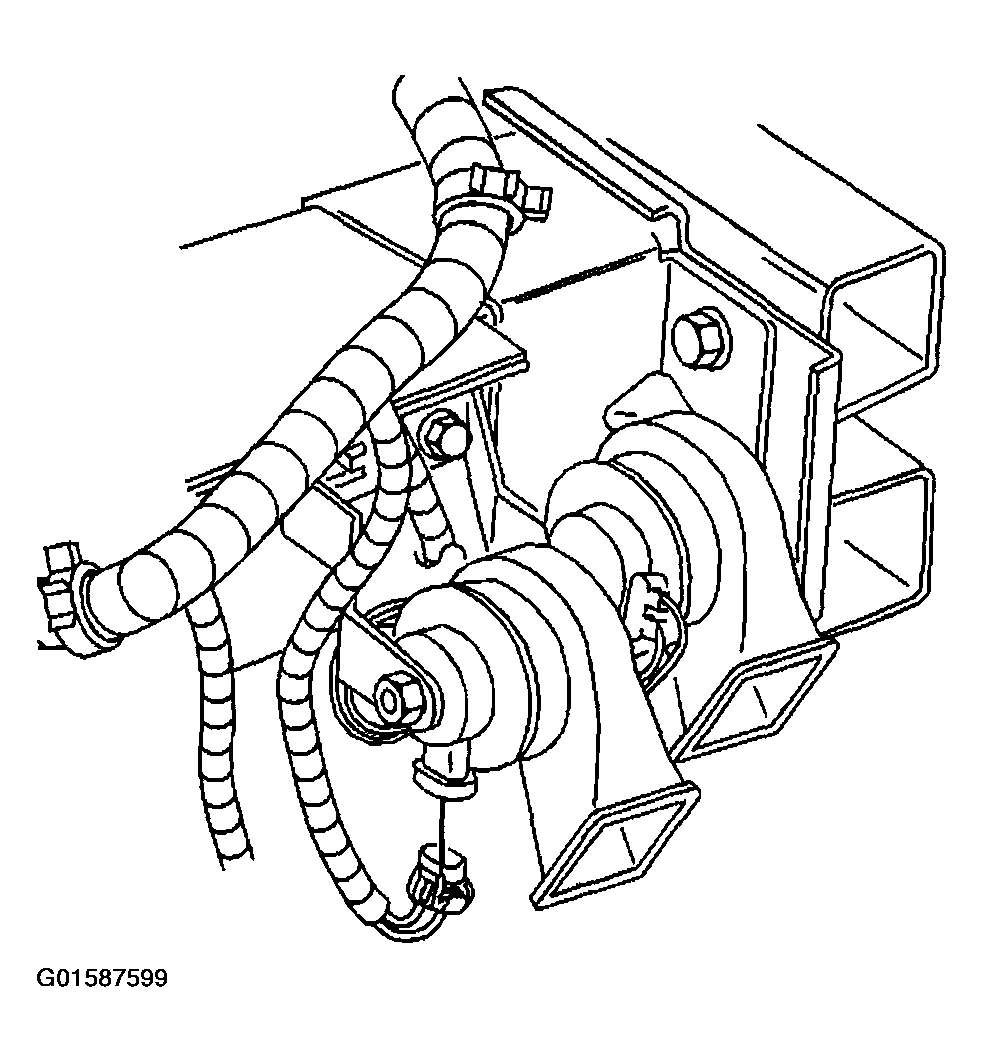

    4. Fig 1: Disconnecting Horn Electrical Connector
    G01587599Courtesy of GENERAL MOTORS CORP.
  4. Remove the horn bracket bolt.
  5. Remove the horn from the frame rail extension.

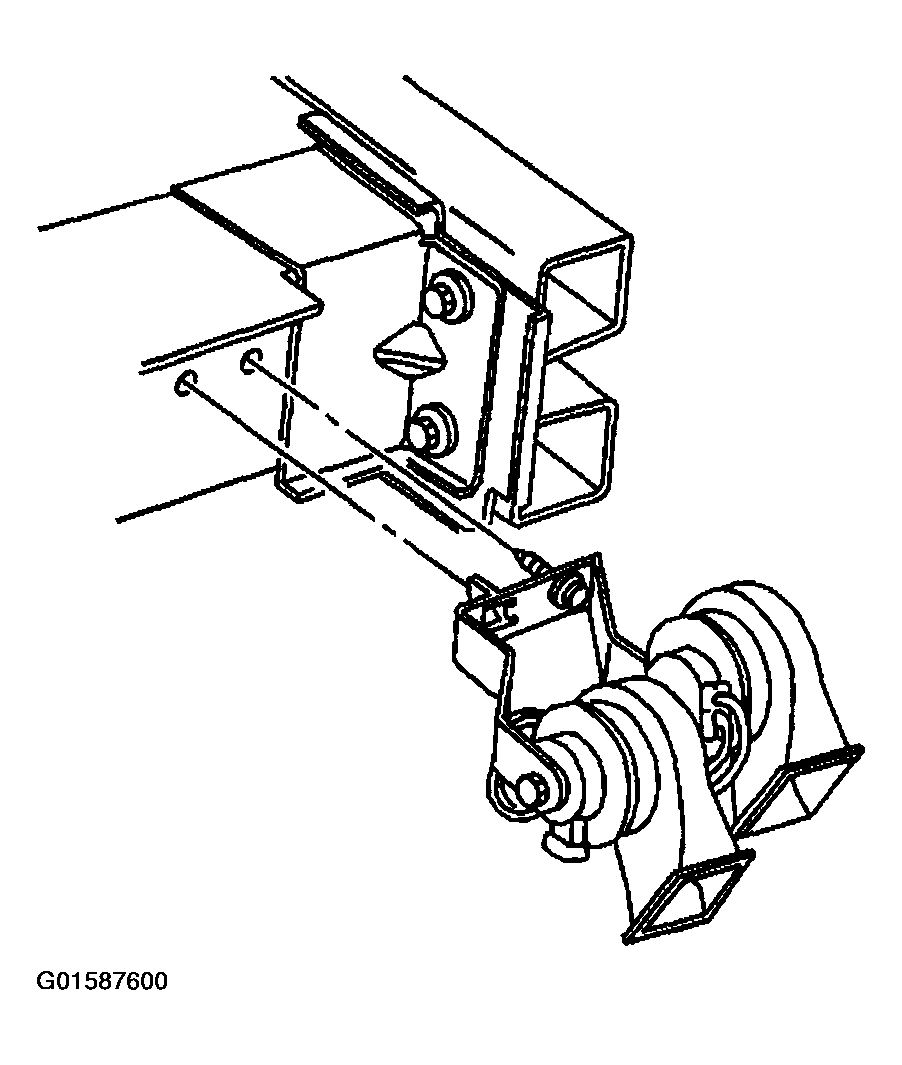

    6. Fig 2: Removing Horn From Frame Rail Extension
    G01587600Courtesy of GENERAL MOTORS CORP.
