Connector Identification

To identify connectors, see Fig 1 and Fig 2 .

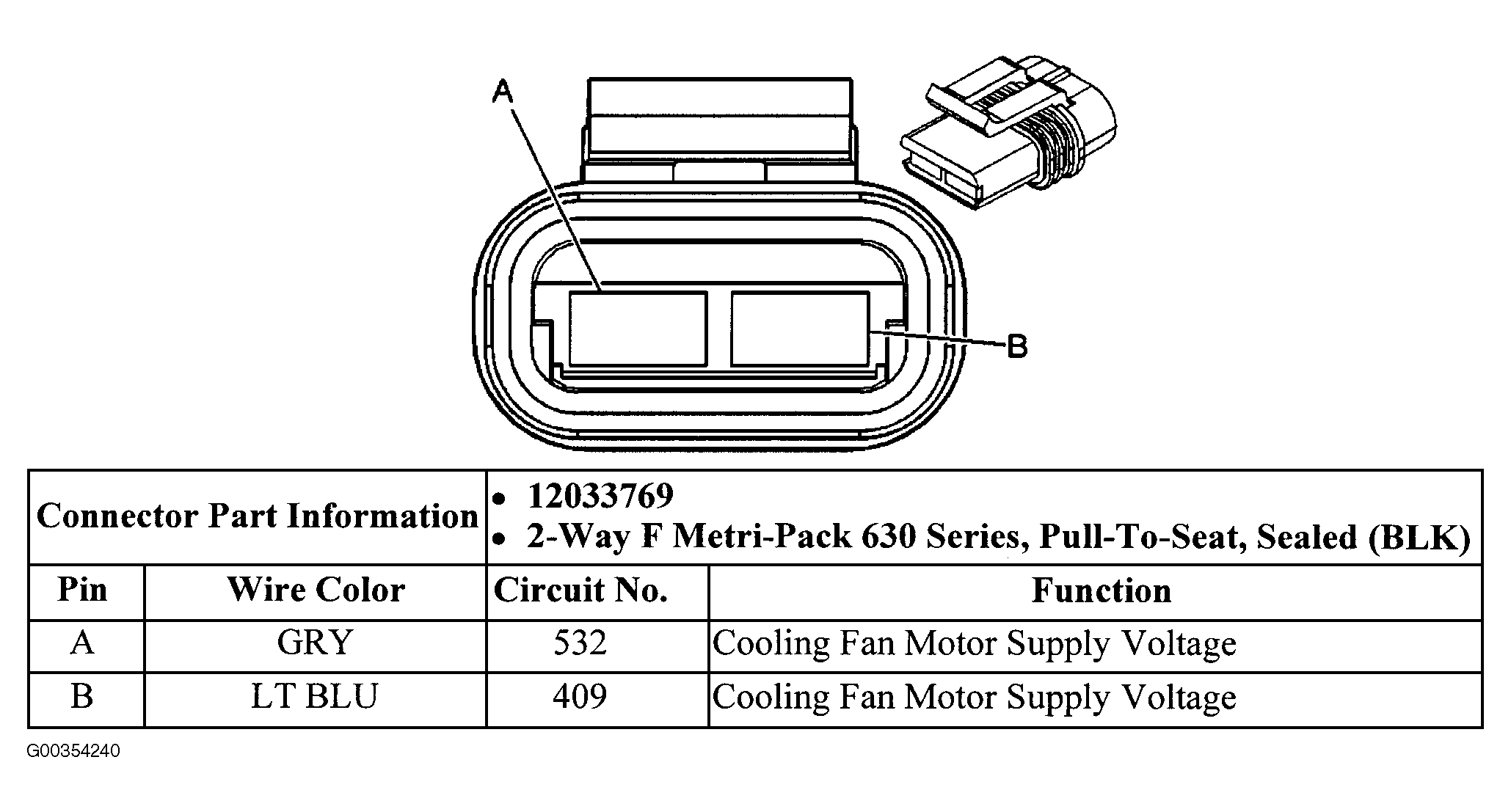

Fig 1: Identifying Left Electric Cooling Fan Connector

Courtesy of GENERAL MOTORS CORP.

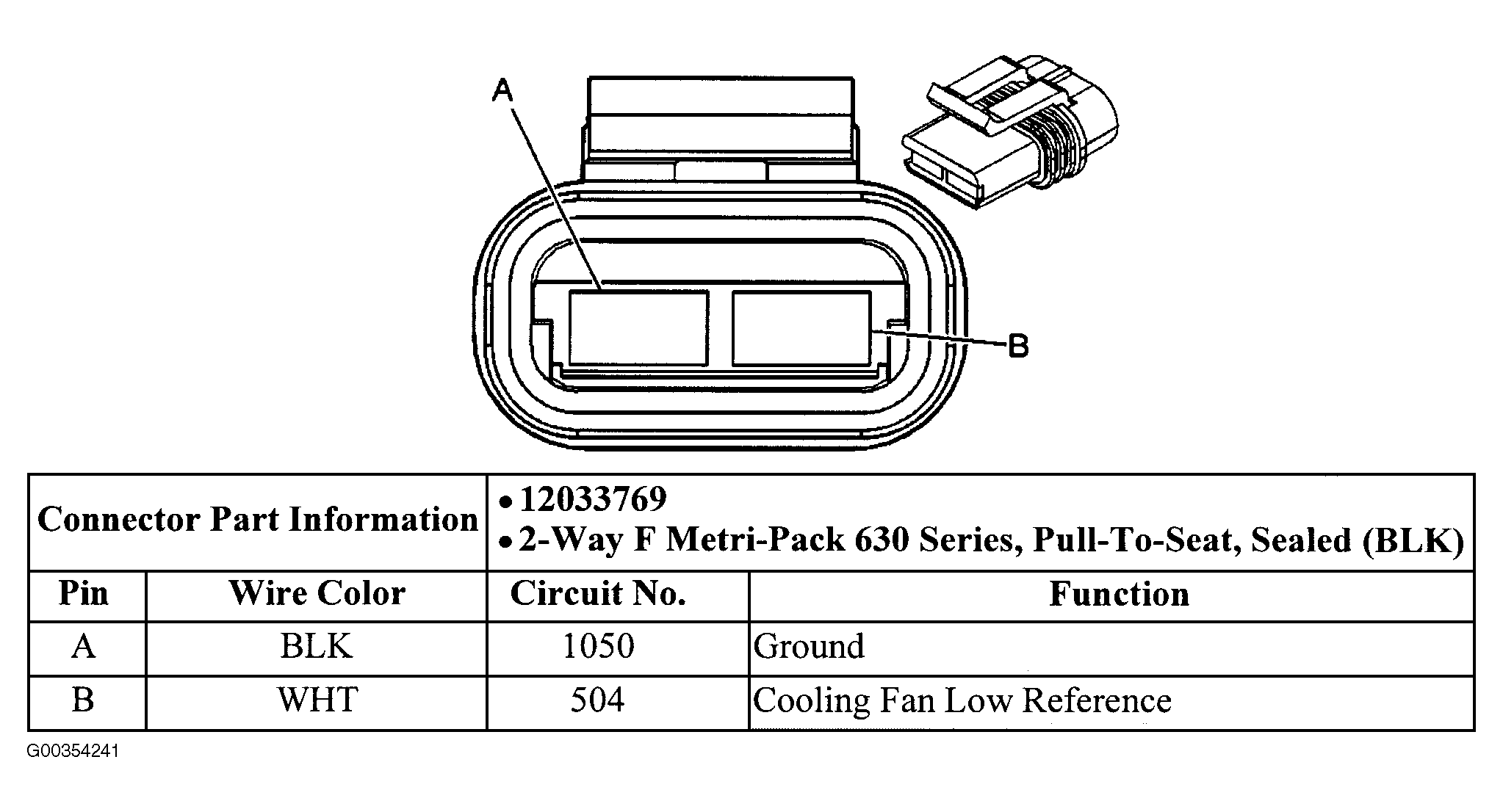

Fig 2: Identifying Right Electric Cooling Fan Connector

Courtesy of GENERAL MOTORS CORP.
