Cooling System Component Views

WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

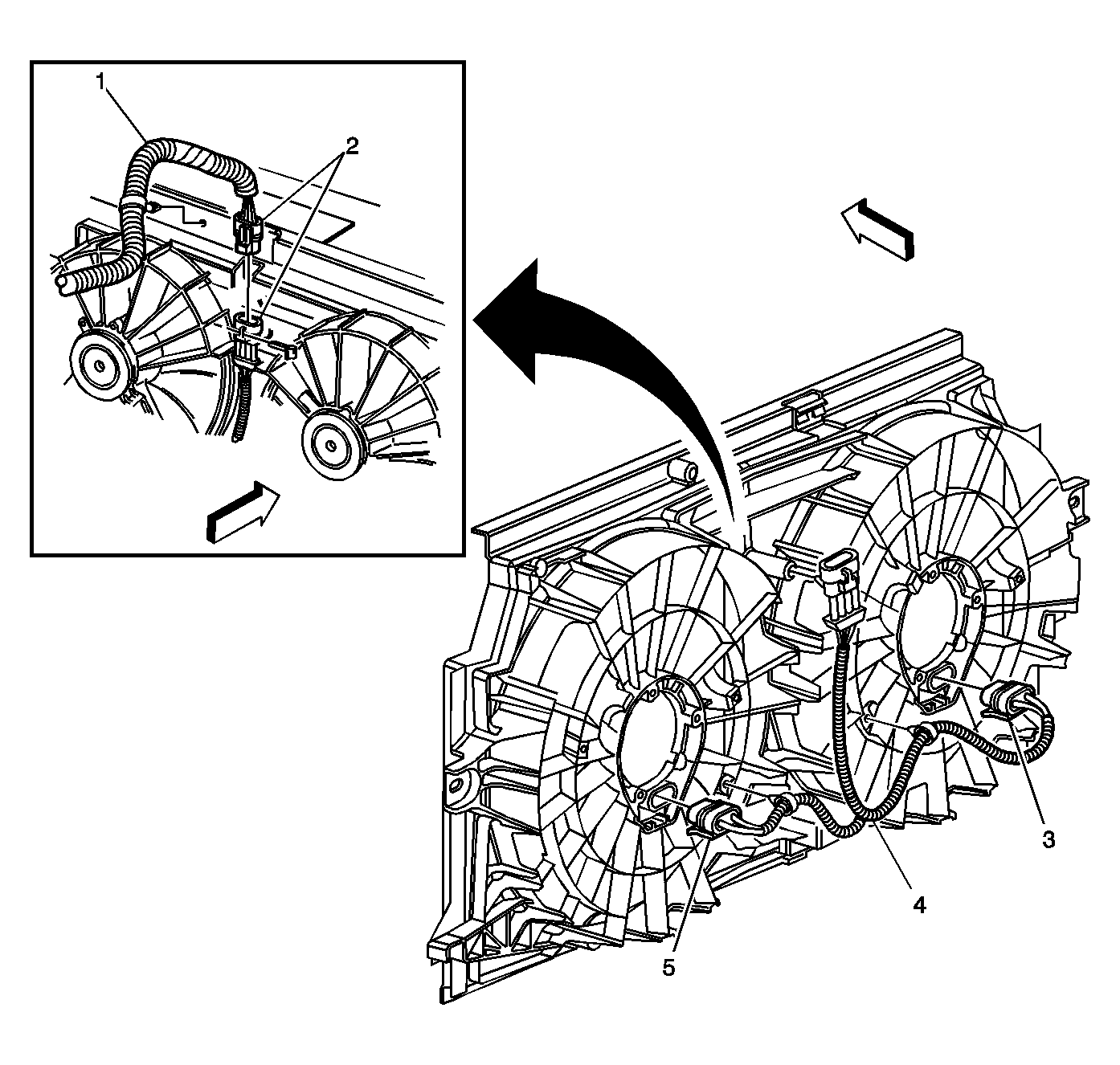

Fig 1: Cooling Fans Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Wiring Harness
2	C105
3	Cooling Fan - Right Connector
4	Cooling Fan Jumper Wiring Harness
5	Cooling Fan - Left Connector
